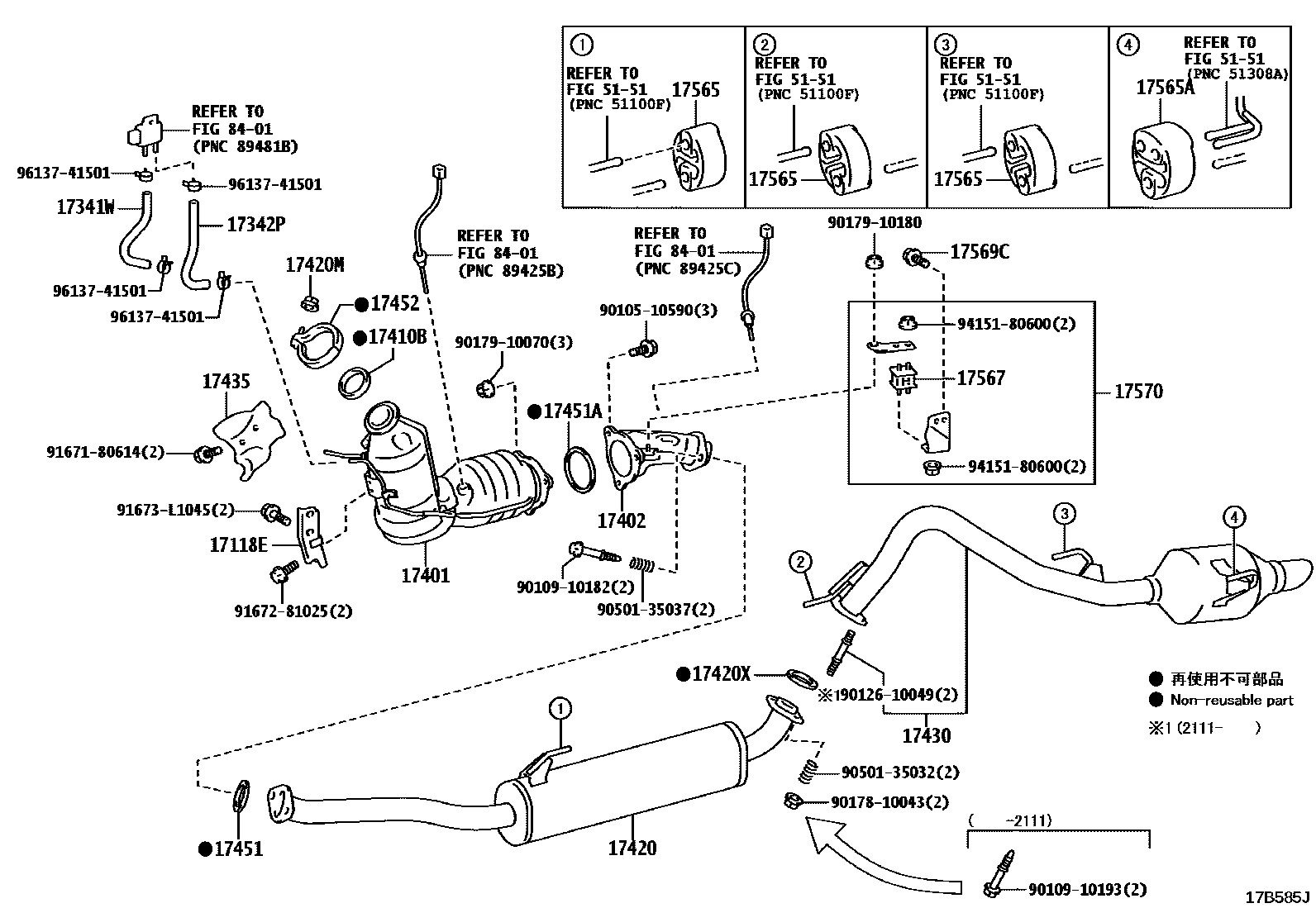

EXHAUST PIPE
17118ESTAY, MANIFOLD
17341WHOSE, AIR, NO.1
17342PHOSE, AIR, NO.2
17401PIPE SUB-ASSY, EXHAUST, FRONT
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420MNUT, LOCK(FOR EXHAUST PIPE)
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17435INSULATOR, EXHAUST PIPE HEAT
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17452CLAMP, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17567CUSHION, EXHAUST PIPE SUPPORT
17569CBOLT, EXHAUST PIPE SUPPORT
17570BRACKET ASSY, EXHAUST PIPE SUPPORT
5151FRAME
8401SWITCH & RELAY & COMPUTER
9010510590
main90105-10590
9010910182
main90109-10182
9010910193
main90109-10193
9012610049
main90126-10049
9017810043
main90178-10043
9017910070
main90179-10070
9017910180
main90179-10180
9050135032
main90501-35032
9050135037
main90501-35037
9167180614
main91671-80614
9167281025
main91672-81025
91673L1045
main91673-L1045
9415180600
main94151-80600
9613741501
main96137-41501
36 parts on this diagram · 2 diagrams in section
