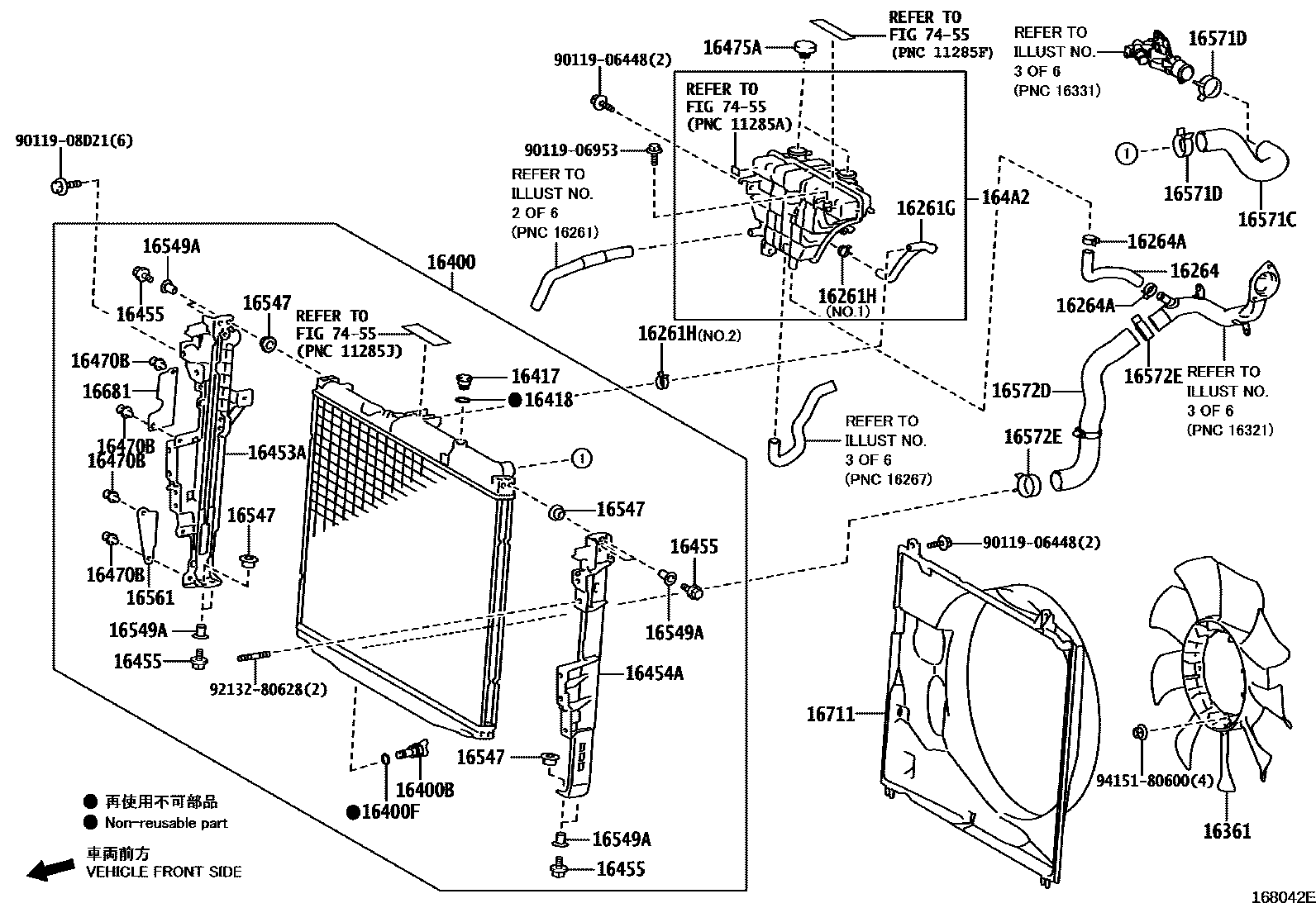

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16453APLATE, RADIATOR SIDE SUPPORT, RH
16454APLATE, RADIATOR SIDE SUPPORT, LH
16455BOLT, RADIATOR SIDE SUPPORT PLATE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16475ACAP, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16547BUSH, RADIATOR SUPPORT, NO.1
16549ACOLLAR, RADIATOR SUPPORT, NO.1
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16681PLATE, RADIATOR UPPER AIR GUIDE
16711SHROUD, FAN
7455CAUTION PLATE
9011906448
main90119-06448
9011906953
main90119-06953
9011908D21
main90119-08D21
9213280628
main92132-80628
9415180600
main94151-80600
32 parts on this diagram · 10 diagrams in section
