HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���� ������ 0002 1���� ������,��(EMV) 0003 1���� ������,��(EMV) 0004 1�� ������ 0005 1���� ������ 0006 1��� ������ 0007 1��� ������ 0008 1���

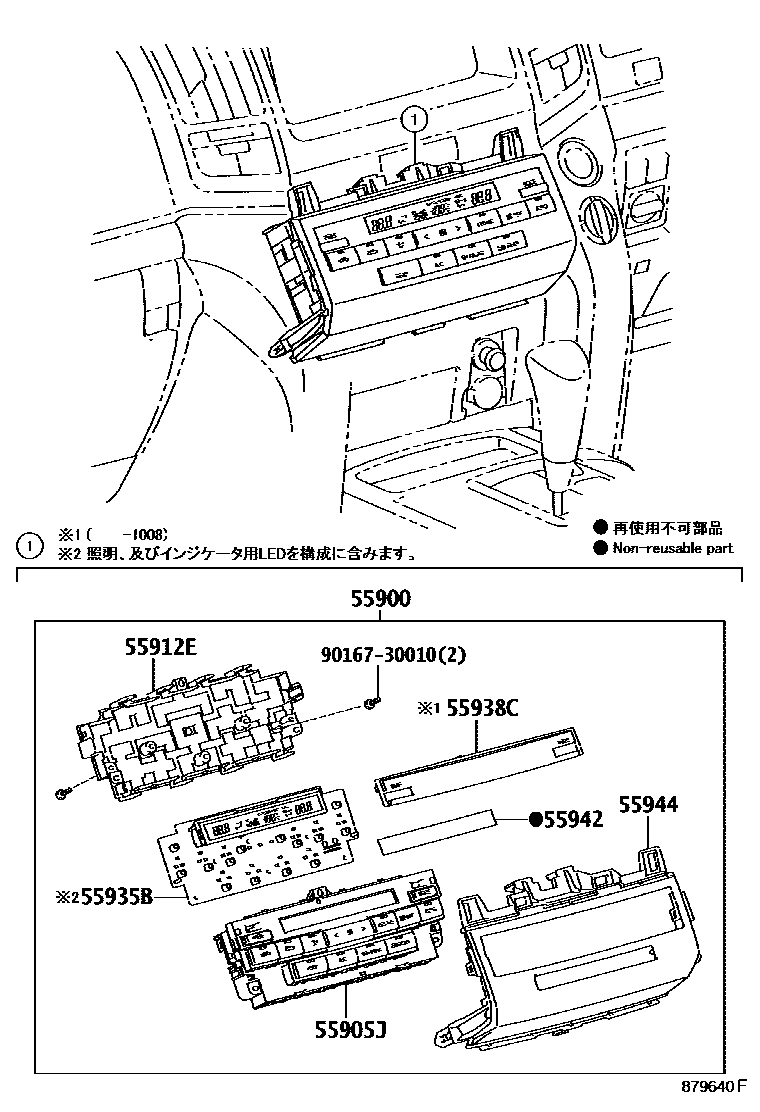

55900CONTROL ASSY, AIR CONDITIONER

main55900-60E90supersedes 55900-60F00iUZJ200200709-200905

main55900-60E91supersedes 55900-60F01iURJ202..AX201008-201201

main55900-60F00iUZJ200200709-200905

main55900-60F01iURJ202..AX201008-201201

main55900-60K51supersedes 55900-60L50iURJ202..GX201008-201201

main55900-60K90supersedes 55900-60L00iURJ202..AX,ZX201201-201508

main55900-60L00iURJ202..AX; URJ202..AX,ZX; URJ202..ZX201201-201508

main55900-60M00supersedes 55900-60L50iURJ202..GX201201-201508

55905JKNOB SUB-ASSY, CONTROL

main55905-60A20supersedes 55905-60A30iURJ202..AX200709-201008

main55905-60A21supersedes 55905-60A31iURJ202..AX201008-201201

main55905-60A30iUZJ200200709-200905

main55905-60A31iURJ202..AX201008-201201

main55905-60A91iURJ202..AX; URJ202..AX,ZX; URJ202..ZX201201-201508

main55905-60B41supersedes 55905-60C50iURJ202..GX201008-201201

main55905-60C10supersedes 55905-60C80iURJ202..AX,ZX201201-201508

main55905-60C60supersedes 55905-60C50iURJ202..GX201508-202104

main55905-60C80iURJ202..AX; URJ202..ZX201508-202010

main55905-60C90supersedes 55905-60C80iURJ202..AX,ZX201508-202104

55912EBASE, HEATER CONTROL, LOWER

main55912-60220iURJ202; URJ202..AX; URJ202..ZX201201-201508

main55912-60230iURJ202201508-202104

55935BCIRCUIT, CENTER CLUSTER MODULE

main55935-60050supersedes 55935-60370iURJ202..GX201008-201201

main55935-60090supersedes 55935-60100iURJ202..AX200709-201201

main55935-60100iURJ202..AX200905-201201

main55935-60170supersedes 55935-60400iURJ202..AX,ZX201201-201508

main55935-60180supersedes 55935-60100iURJ202..AX; URJ202..AX,ZX; URJ202..ZX201201-201508

main55935-60280supersedes 55935-60370iURJ202..GX201201-201508

main55935-60380supersedes 55935-60370iURJ202..GX201508-202104

main55935-60400supersedes 55935-60100iURJ202..AX; URJ202..ZX201508-202010

main55935-60410supersedes 55935-60400iURJ202..AX,ZX201508-202104

55938CLENS, CENTER CLUSTER MODULE

main55938-60030iUZJ200200709-200905

55942GUARD, HEATER CONTROL

main55942-60030iURJ202..AX; URJ202..AX,GX200709-201201

main55942-60060iURJ202201508-202104

55944PLATE, HEATER CONTROL SUPPORT

main55944-60050iURJ202..GX201008-201201

main55944-60060iURJ202..AX; URJ202..AX,ZX; URJ202..ZX201201-201508

main55944-60080iURJ202..GX201508-202104

main55944-60100iURJ202..AX; URJ202..AX,ZX; URJ202..ZX201508-201908

main55944-60100-B0iURJ202..AX; URJ202..ZX201908-202104

SILVER HAIRLINE,TRIM1#,2#,4#; SILVER HAIRLINE,TRIM2#,4#

main55944-60040iUZJ200200709-200905

9016730010

main90167-30010

8 parts on this diagram · 8 diagrams in section
