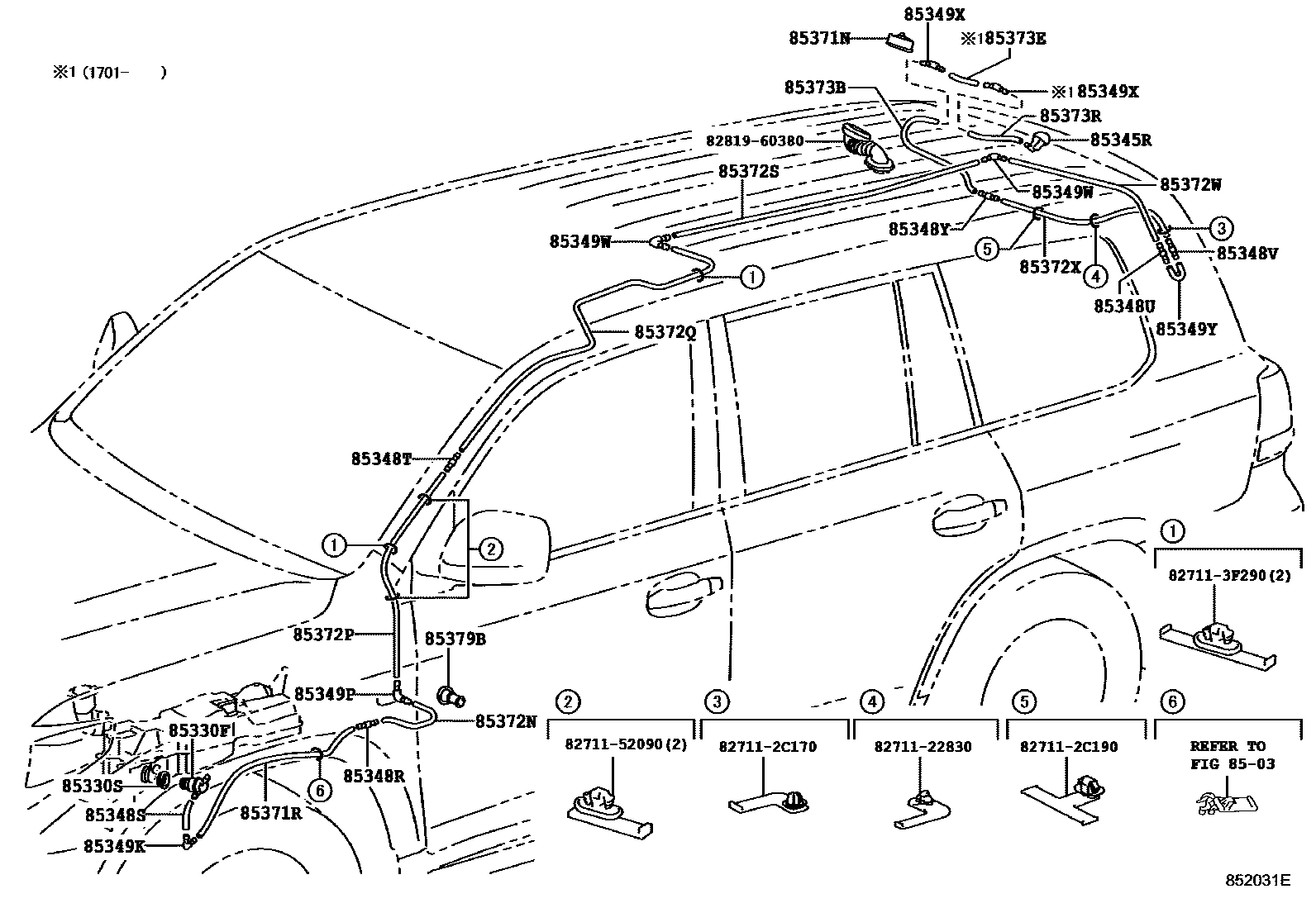

REAR WASHER

0001 1 0002 1��(����� ������)

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60180iURJ202201201-201508

85330SBUSH, REAR WASHER JAR

main85336-60300iUZJ200200709-200905

85345RNOZZLE, REAR WASHER

main85391-60120iURJ202200709-201201

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iURJ202200709-201201

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iUZJ200200709-200905

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iURJ202201508-202104

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iURJ202201508-202104

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iURJ202201201-201508

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iURJ202201201-201508

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-14481iUZJ200200709-200905

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iUZJ200200709-200905

85349WJOINT, REAR WASHER ELBOW, NO.4

main85355-20200×2iURJ202..AX; URJ202..AX,GX; URJ202..GX; URJ202..ZX201508-202104

85349XJOINT, REAR WASHER ELBOW, NO.6

main85355-20200iUZJ200200709-200905

85349YJOINT, REAR WASHER ELBOW, NO.5

main85375-33040iUZJ200200709-200905

85371NCLAMP, REAR WASHER HOSE

main85371-60030iURJ202200709-201201

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iUZJ200200709-200905

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iURJ202; URJ202..AX; URJ202..GX201508-202104

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iURJ202; URJ202..AX200709-201201

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iURJ202..AX; URJ202..AX,GX200709-201201

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33803iURJ202..AX; URJ202..AX,GX200709-201201

main90099-33080iURJ202..AX; URJ202..GX; URJ202..ZX201201-201508

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iURJ202..AX; URJ202..AX,GX200709-201201

main90099-33803iURJ202..AX; URJ202..GX; URJ202..ZX201201-201508

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iURJ202..AX; URJ202..AX,GX200709-201201

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

main90099-33080iURJ202..AX; URJ202..AX,GX200709-201201

85373ETUBE, REAR WASHER RUBBER

main90099-33080iURJ202; URJ202..AX; URJ202..GX201701-202104

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iURJ202; URJ202..AX200709-201201

85379BGROMMET, WASHER, A

main85379-12850iUZJ200200709-200905

8271122830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22830

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C190

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8281960380GROMMET, WIRING HARNESS

main82819-60380

33 parts on this diagram · 2 diagrams in section
