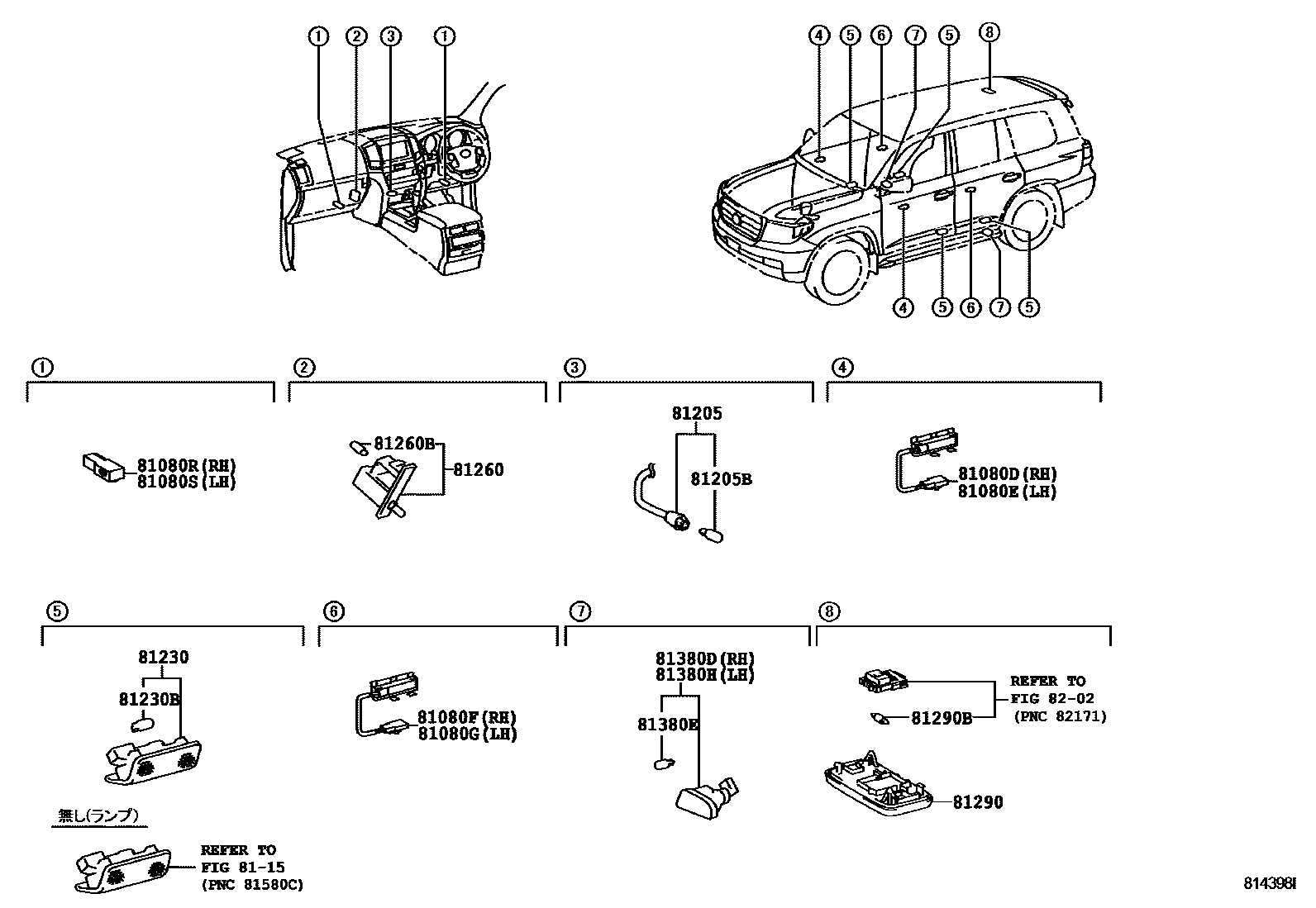

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
8115REFLEX REFLECTOR
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
81290LAMP ASSY, ROOM, NO.3
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
NEUTRAL BEIGE,TRIM4#
SAND BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
SHELL,TRIM0#,4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
81290BBULB, ROOM LAMP, NO.3
81380DLAMP ASSY, STEP
81380EBULB (FOR STEP LAMP)
81380HLAMP ASSY, STEP
8202WIRING & CLAMP
19 parts on this diagram · 5 diagrams in section
