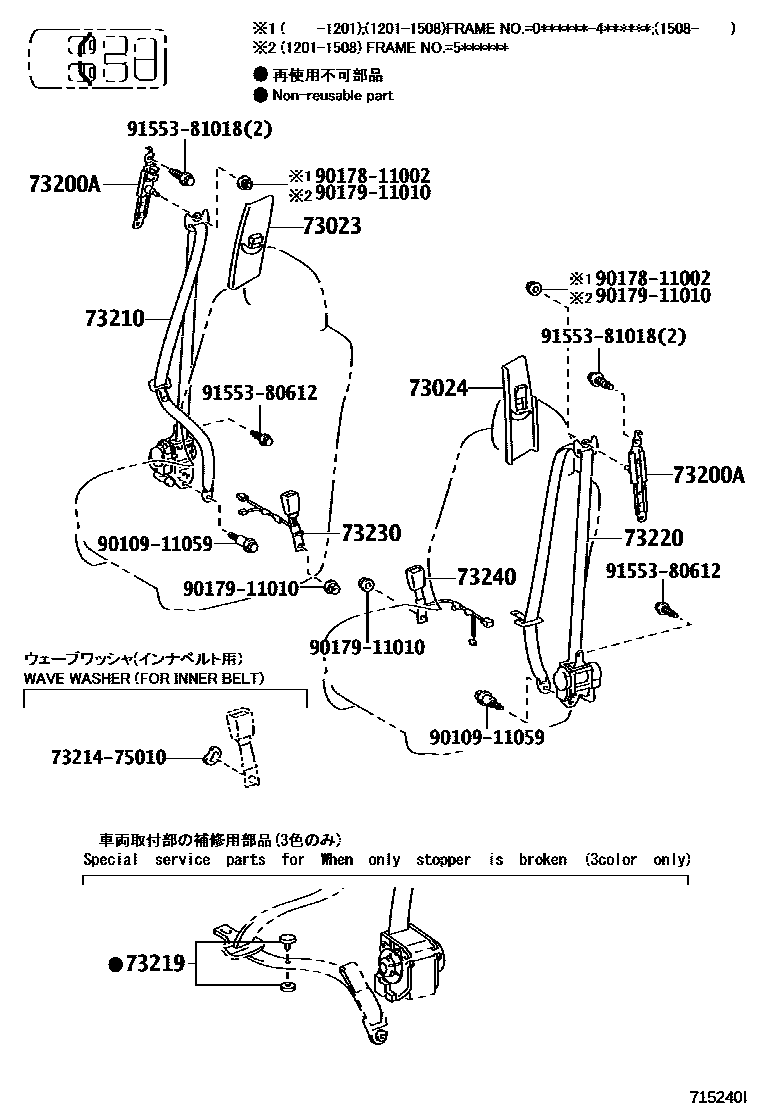

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
SHELL,TRIM0#; SHELL,TRIM0#,4#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
BLACK,TRIM25,42
SAND BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
SHELL,TRIM0#; SHELL,TRIM0#,4#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,23,42,46; LT.GRAY,TRIM23,42,46
BLACK,TRIM25,42
SAND BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
LT.GRAY/BLACK,TRIM1#; LT.GRAY/BLACK,TRIM1#,2#
SAND BEIGE,TRIM4#
BLACK,TRIM1#; BLACK,TRIM2#,42,46
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
LT.GRAY/BLACK,TRIM1#; LT.GRAY/BLACK,TRIM1#,2#
SAND BEIGE,TRIM4#
BLACK,TRIM1#; BLACK,TRIM2#,42,46
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
73230BELT ASSY, FRONT SEAT INNER, RH
SHELL,TRIM0#
BLACK,TRIM2#,4#
SHELL,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#
SAND BEIGE,TRIM4#
FLAXEN,TRIM0#
BLACK,TRIM2#,4#
NEUTRAL BEIGE,TRIM47
FLAXEN,TRIM0#
BLACK,TRIM1#,46
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
73240BELT ASSY, FRONT SEAT INNER, LH
SHELL,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#
SAND BEIGE,TRIM4#
FLAXEN,TRIM0#
BLACK,TRIM1#,42,46
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
FLAXEN,TRIM0#
BLACK,TRIM2#,4#
NEUTRAL BEIGE,TRIM47
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
9155381018
main91553-81018
14 parts on this diagram · 3 diagrams in section
