EPC Data

SEAT & SEAT TRACK

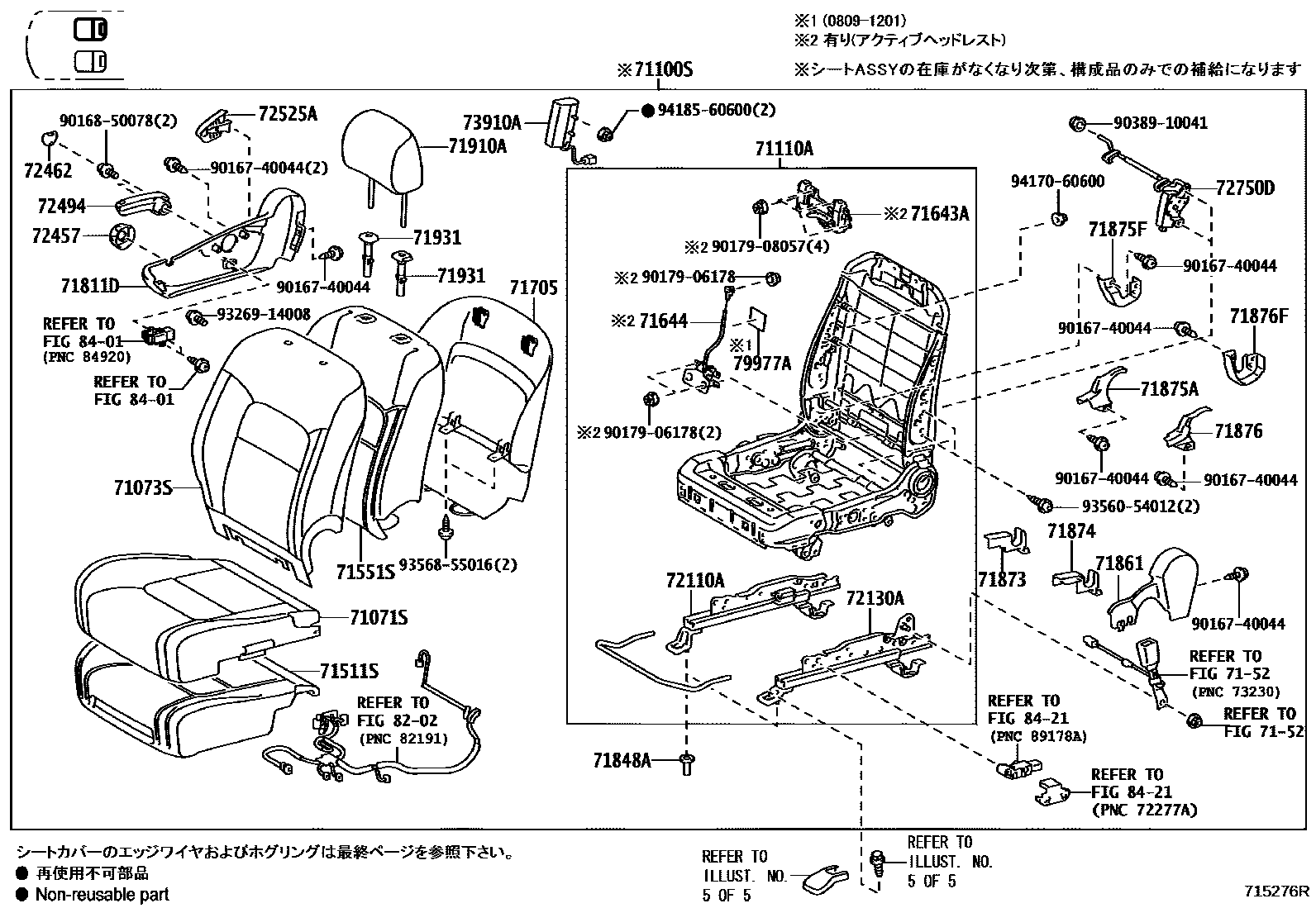

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-60A90-B1i201508-201808
MD.GRAY,TRIM1#
main71071-60A90-E3i201708-201808
NEUTRAL BEIGE,TRIM4#
main71071-60D50-B0i200905-201007
MD.GRAY,TRIM1#
main71071-60D50-E0i200905-201007
SAND BEIGE,TRIM4#
main71071-60D51-B1i201008-201201
MD.GRAY,TRIM1#
main71071-60D51-C2i201008-201201
BLACK,TRIM2#
main71071-60D51-E1i201008-201201
SAND BEIGE,TRIM4#
main71071-60E30-B0i201008-201201
MD.GRAY,TRIM1#
main71071-60E30-E0i201008-201201
SAND BEIGE,TRIM4#
main71071-60F30-A0i201201-201508
SHELL,TRIM0#
main71071-60F30-A3i201508-201708
FLAXEN,TRIM0#
main71071-60F30-B0i201201-201508
MD.GRAY,TRIM1#
main71071-60F30-E1i201708-202104
NEUTRAL BEIGE,TRIM4#
main71071-60F60-A1i201201-201303
SHELL,TRIM0#
main71071-60F60-C1i201201-201303
BLACK,TRIM2#
main71071-60F61-A1i201304-201508
SHELL,TRIM0#
main71071-60F61-C1i201304-201508
BLACK,TRIM2#,4#
main71071-60N30-A1i201508-201708
FLAXEN,TRIM0#
main71071-60N30-C1i201508-201903
BLACK,TRIM2#
main71071-60N30-E0i201708-201903
CHOCOLATE BROWN,TRIM42,46
main71071-60N30-E1i201708-201903
NEUTRAL BEIGE,TRIM47
main71071-60N31-C1i201904-202104
BLACK,TRIM2#
main71071-60N31-E0i201904-202104
CHOCOLATE BROWN,TRIM42,46
main71071-60N31-E1i201904-202104
NEUTRAL BEIGE,TRIM47
main71071-60Q60-B1i201808-202104
MD.GRAY,TRIM1#
main71071-60Q60-E1i201808-202104
NEUTRAL BEIGE,TRIM4#
main71071-60B10-B0supersedes 71071-60A90-B0i200709-200905
main71071-60B10-E0supersedes 71071-60A90-E1i200709-200905
main71071-60B11-B2i201008-201201
main71071-60B11-C1i201008-201201
main71071-60B11-E2i201008-201201
main71071-60F51-A1supersedes 71071-60A90-A0i201304-201508
main71071-60F51-C1i201304-201508
main71071-60G50-A0supersedes 71071-60A90-A0i201201-201304
main71071-60G50-C0i201201-201304
main71071-60K50-C0i201608-201708
main71071-60L90-E0i201408-201507
main71071-60N40-A3supersedes 71071-60A90-A4i201508-201708
main71071-60N40-C3i201508-201708
main71071-60N40-E3i201708-202104
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-60C41-B0i201008-201201
MD.GRAY,TRIM1#
main71073-60C41-E0i201008-201201
SAND BEIGE,TRIM4#
main71073-60D70-A0i201201-201508
SHELL,TRIM0#
main71073-60D70-A3i201508-201708
FLAXEN,TRIM0#
main71073-60D70-B0i201201-201508
MD.GRAY,TRIM1#
main71073-60D70-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
main71073-60D90-A1i201201-201508
SHELL,TRIM0#
main71073-60D90-C1i201201-201508
BLACK,TRIM2#,4#
main71073-60J70-B1i201808-202104
MD.GRAY,TRIM1#
main71073-60J70-E1i201808-202104
NEUTRAL BEIGE,TRIM4#
main71073-6A662-B2i201201-201508
MD.GRAY,TRIM1#
main71073-6A662-E4i201708-201808
NEUTRAL BEIGE,TRIM4#
main71073-6A671-B1supersedes 71073-6A661-B1i200905-201008
main71073-6A671-E1supersedes 71073-6A661-E2i200905-201008
main71073-6A672-B2supersedes 71073-6A662-B1i201008-201201
main71073-6A672-E2supersedes 71073-6A662-E2i201008-201201
main71073-60C70-C1i201008-201201
main71073-60E40-A0supersedes 71073-6A662-A0i201201-201508
main71073-60E40-C0i201201-201508
main71073-60F30-C0i201608-201708
main71073-60F40-C0i201608-201708
main71073-60J80-E0i201408-201507
main71073-60L70-A2supersedes 71073-60L60-A2i201508-201708
main71073-60L70-C2supersedes 71073-60L61-C2i201508-201903
main71073-60L70-E1supersedes 71073-60L60-E1i201508-201708
main71073-60L70-E3supersedes 71073-60L60-E3i201708-201903
main71073-60L71-C2supersedes 71073-60L61-C2i201904-202104
main71073-60L71-E1supersedes 71073-60L61-E1i201904-202104
main71073-60L71-E3supersedes 71073-60L61-E3i201904-202104
main71073-60M00-A2supersedes 71073-6A662-A4i201703-201708
main71073-60M00-C2i201703-202104
main71073-60M00-E3i201708-202104
main71073-60M20-A2supersedes 71073-6A662-A0i201508-201703
main71073-60M20-C2i201508-201703
main71073-6A670-B1supersedes 71073-6A660-B1i200709-200905
main71073-6A670-E1supersedes 71073-6A660-E2i200709-200905
71100SSEAT ASSY, FRONT RH
main71100-60E31-B1i201008-201201
MD.GRAY LC,TRIM1#
main71100-60E31-E0i201008-201201
SAND BEIGE,TRIM4#
main71100-60Q80-B0i200905-201008
MD.GRAY,TRIM1#
main71100-60Q80-E0i200905-201008
SAND BEIGE,TRIM4#
main71100-60Q81-B2i201008-201201
MD.GRAY,TRIM1#
main71100-60Q81-E1i201008-201201
SAND BEIGE,TRIM4#
main71100-60J60-B1supersedes 71100-60G80-B1i200709-200905
main71100-60J60-E1supersedes 71100-60G80-E2i200709-200905
main71100-60J61-B0supersedes 71100-60G81-B0i200905-201008
main71100-60J61-E0supersedes 71100-60G81-E0i200905-201008
main71100-60J62-B2supersedes 71100-60G82-B1i201008-201201
main71100-60J62-E1supersedes 71100-60G82-E0i201008-201201
main71100-60U30-C1i201008-201201
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-60400i201008-201201
main71110-60401i201212-201407
main71110-60402i201408-201508
main71110-60442i201408-201508
main71110-60471i200905-201201
main71110-60700i201201-201212
main71110-60701i201212-201508
main71110-60530supersedes 71110-60440i200709-200905
main71110-60531i201008-201201
main71110-60532i201508-201708
main71110-60770supersedes 71110-60A90i201708-202104
main71110-60A80i201608-201708
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-60570i200905-201201
main71501-60610i201508-202104
main71511-60270i200709-201201
main71501-60350supersedes 71511-60270i200709-200905
7152SEAT BELT
→ Go to FIG 71-52
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-60430i201008-201201
main71505-60100supersedes 71551-60440i200709-200905
main71505-60170i201703-201708
main71505-60300supersedes 71505-60170i201508-202104
71643AUNIT, ACTIVE HEADREST, UPR
main71643-12011×2i200709-200905
71644UNIT, ACTIVE HEADREST, LWR
main71644-12030×2i200709-200905
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-60280-B0i200709-200905
MD.GRAY,TRIM1#
main71705-60280-B1i201008-201201
MD.GRAY,TRIM1#
main71705-60280-E0i200709-201201
SAND BEIGE,TRIM4#
main71705-60280-E1i201008-201201
SAND BEIGE,TRIM4#
main71705-60330-B0i200905-201201
MD.GRAY,TRIM1#
main71705-60330-C0i201008-201201
BLACK,TRIM2#
main71705-60330-E0i200905-201201
SAND BEIGE,TRIM4#
main71705-60340-A1i201201-201508
SHELL,TRIM0#
main71705-60340-A2i201508-201708
FLAXEN,TRIM0#
main71705-60340-B2i201201-201508
MD.GRAY,TRIM1#
main71705-60340-C0i201201-201508
BLACK,TRIM2#
main71705-60340-E0i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
main71705-60350-A0i201201-201508
SHELL,TRIM0#
main71705-60350-A1i201508-201708
FLAXEN,TRIM0#
main71705-60350-C0i201708-202104
BLACK,TRIM2#,42,46
main71705-60350-E0i201708-202104
NEUTRAL BEIGE,TRIM47
main71705-60280-C0i201008-201201
main71705-60380-A0i201508-201708
main71705-60380-C0supersedes 71705-60340-C0i201508-201708
main71705-60380-E0supersedes 71705-60340-E0i201708-202104
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-60280-A1i201201-201508
SHELL,TRIM0#
main71811-60280-A4i201508-201708
FLAXEN,TRIM0#
main71811-60280-B0i200905-201201
MD.GRAY,TRIM1#
main71811-60280-C0i201708-202104
BLACK,TRIM2#,42,46
main71811-60280-E0i200905-201201
SAND BEIGE,TRIM4#
main71811-60280-E1i201708-202104
NEUTRAL BEIGE,TRIM47
main71811-60290-A0i201201-201508
SHELL,TRIM0#
main71811-60290-A1i201508-201708
FLAXEN,TRIM0#
main71811-60290-B0i200709-201201
MD.GRAY,TRIM1#
main71811-60290-C0i201201-201508
BLACK,TRIM1#; BLACK,TRIM1#,2#
main71811-60290-E0i200709-201201
SAND BEIGE,TRIM4#
main71811-60290-E1i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
main71811-42100-A1i201201-201508
main71811-42100-B1supersedes 71811-60290-B0i200709-200905
main71811-42100-C0i201201-201508
main71811-42100-E1supersedes 71811-60290-E0i200709-200905
main71811-60370-A1i201508-201708
main71811-60370-C0i201508-201708
main71811-60370-E0i201708-202104
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-33010×2i201508-202104
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-33060-A0i201201-201508
SHELL,TRIM0#
main71861-33060-A1i201508-201708
FLAXEN,TRIM0#
main71861-33060-B1i200709-201201
MD.GRAY,TRIM1#
main71861-33060-C0i201508-202104
BLACK,TRIM1#
main71861-33060-E2i200709-201201
SAND BEIGE,TRIM4#
main71861-33060-E3i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
main71861-60110-A2i201201-201508
main71861-60110-A6i201508-201708
main71861-60110-B1supersedes 71861-33060-B1i200905-201201
main71861-60110-C0i201201-201508
main71861-60110-E3supersedes 71861-33060-E2i200905-201201
main71861-60110-E6supersedes 71861-33060-E3i201708-202104
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-53030×2i201201-201508
main71874-30020×2supersedes 71873-53030i200905-201201
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-30070×2supersedes 71874-53010i200905-201201
main71874-53010×2i201201-201508
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58030-A3i201201-201508
main71875-58030-A6i201508-201708
main71875-58030-B1supersedes 71875-58040-B3i200905-201201
main71875-58030-C0i201201-201508
main71875-58030-E2supersedes 71875-58040-E3i200905-201201
main71875-58030-E6supersedes 71875-58040-E5i201708-202104
main71875-58040-A2i201201-201508
SHELL,TRIM0#
main71875-58040-A3i201508-201708
FLAXEN,TRIM0#
main71875-58040-B3i200709-201201
MD.GRAY,TRIM1#
main71875-58040-C0i201201-201508
BLACK,TRIM1#; BLACK,TRIM1#,2#
main71875-58040-E3i200709-201201
SAND BEIGE,TRIM4#
main71875-58040-E5i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-58050supersedes 71875-58060i200905-201201
main71875-58060i200709-201201
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-A2i201201-201508
main71875-60150-A7i201508-201708
main71875-60150-B1supersedes 71876-58040-B3i200905-201201
main71875-60150-C0i201008-201201
main71875-60150-E4supersedes 71876-58040-E3i200905-201201
main71875-60150-E9supersedes 71876-58040-E5i201708-202104
main71876-58040-A2i201201-201508
SHELL,TRIM0#
main71876-58040-A3i201508-201708
FLAXEN,TRIM0#
main71876-58040-B3i200709-201201
MD.GRAY,TRIM1#
main71876-58040-C0i201201-201508
BLACK,TRIM1#; BLACK,TRIM1#,2#
main71876-58040-E3i200709-201201
SAND BEIGE,TRIM4#
main71876-58040-E5i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-58050supersedes 71876-58060i200905-201201
main71876-58060i201201-201508
71910AHEADREST ASSY, FRONT SEAT
main71910-60680-B0×2i201008-201201
MD.GRAY,TRIM1#
main71910-60680-E0×2i201008-201201
SAND BEIGE,TRIM4#
main71910-60700-B0×2supersedes 71910-60690-B0i200905-201008
main71910-60700-E0×2supersedes 71910-60690-E0i200905-201008
main71910-60701-B1×2i201008-201201
main71910-60701-C2×2i201008-201201
main71910-60701-E1×2i201008-201201
main71910-60A10-A0×2i201201-201508
SHELL,TRIM0#
main71910-60A10-A3×2i201508-201708
FLAXEN,TRIM0#
main71910-60A10-B0×2i201201-201508
MEDIUM GRAY,TRIM1#
main71910-60A10-E1×2i201708-202104
NEUTRAL BEIGE,TRIM4#
main71910-60A20-B0×2i201508-201808
MD.GRAY,TRIM1#
main71910-60A20-E2×2i201708-201808
NEUTRAL BEIGE,TRIM4#
main71910-60A30-A1×2supersedes 71910-60A20-A0i201201-201508
main71910-60A30-C0×2i201201-201508
main71910-60D90-B1×2i201808-202104
MEDIUM GRAY,TRIM1#
main71910-60D90-E5×2i201808-202104
NEUTRAL BEIGE,TRIM4#
main71910-60A30-A5×2supersedes 71910-60A20-A3i201508-201708
main71910-60A30-C2×2i201508-201708
main71910-60A30-E1×2supersedes 71910-60690-E0i201708-202104
main71910-60C00-E0×2i201408-201507
main71910-60C90-A2×2supersedes 71910-60C80-A2i201508-201708
main71910-60C90-C2×2i201608-201708
main71910-60C90-E0×2supersedes 71910-60C80-E0i201708-202104
main71910-60C90-E1×2supersedes 71910-60C80-E1i201708-202104
main71910-60E50-C0×2i201908-202104
main71910-60E50-E1×2supersedes 71910-60690-E0i201908-202104
main71910-60F00-C0×2supersedes 71910-60C80-C2i201808-202010
main71910-60F00-E1×2supersedes 71910-60C80-E0i201908-202010
main71910-60F00-E3×2supersedes 71910-60C80-E1i201908-202010
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-21×2i201710-202104
main71930-44020-A2×2i201201-201508
main71930-44020-A7×2i201508-201708
main71930-44020-B1×2i200709-201201
main71930-44020-C0×2i201008-201201
main71930-44020-E2×2i200709-201201
main71930-44020-L2×2i201708-202104
main71930-48010-A3×2i201201-201508
main71930-48010-A4×2i201508-201708
main71930-48010-B0×2i201508-202104
main71930-48010-C0×2i201201-201508
main71930-48010-E5×2i201708-202104
main71931-47010-B8×2i200709-201201
main71931-47010-C0×2i201008-201201
main71931-47010-E8×2i200709-200905
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-60400i200709-200905
72130ATRACK ASSY, FRONT SEAT, INNER RH
main72130-60410i200709-200905
72457KNOB, VERTICAL SEAT ADJUSTER
main72457-58010-A2i201201-201508
SHELL,TRIM0#
main72457-58010-A5i201508-201708
FLAXEN,TRIM0#
main72457-58010-B2i200709-200905
MD.GRAY,TRIM1#
main72457-58010-C0i201708-202104
BLACK,TRIM1#,42,46
main72457-58010-E3i200709-201201
SAND BEIGE,TRIM4#
main72457-58010-E4i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
72462COVER, VERTICAL ADJUSTER RH
main72462-42010-A1i201201-201508
SHELL,TRIM0#
main72462-42010-A2i201508-201708
FLAXEN,TRIM0#
main72462-42010-B2i200709-200905
MD.GRAY,TRIM1#
main72462-42010-C0i201201-201508
BLACK,TRIM1#; BLACK,TRIM1#,2#
main72462-42010-E2i200709-200905
SAND BEIGE,TRIM4#
main72462-42010-E4i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-42010-A1i201201-201508
SHELL,TRIM0#
main72494-42010-A2i201508-201708
FLAXEN,TRIM0#
main72494-42010-B2i200709-200905
MD.GRAY,TRIM1#
main72494-42010-C0i201201-201508
BLACK,TRIM1#; BLACK,TRIM1#,2#
main72494-42010-E2i200709-201201
SAND BEIGE,TRIM4#
main72494-42010-E4i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-42020-A1i201201-201508
SHELL,TRIM0#
main72525-42020-A2i201508-201708
FLAXEN,TRIM0#
main72525-42020-B2i200709-201201
MD.GRAY,TRIM1#
main72525-42020-C0i201201-201508
BLACK,TRIM1#; BLACK,TRIM1#,2#
main72525-42020-E2i200709-200905
SAND BEIGE,TRIM4#
main72525-42020-E4i201708-202104
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-30260i200709-201201
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-60020i201201-201508
79977AFELT, SEATBACK
main79977-60050×2i200809-200905
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8421AIR BAG
→ Go to FIG 84-21
9016740044
main90167-40044
9016850078
main90168-50078
9017906178
main90179-06178
9017908057
main90179-08057
9038910041
main90389-10041
9326914008
main93269-14008
9356054012
main93560-54012
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

43 parts on this diagram · 21 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
