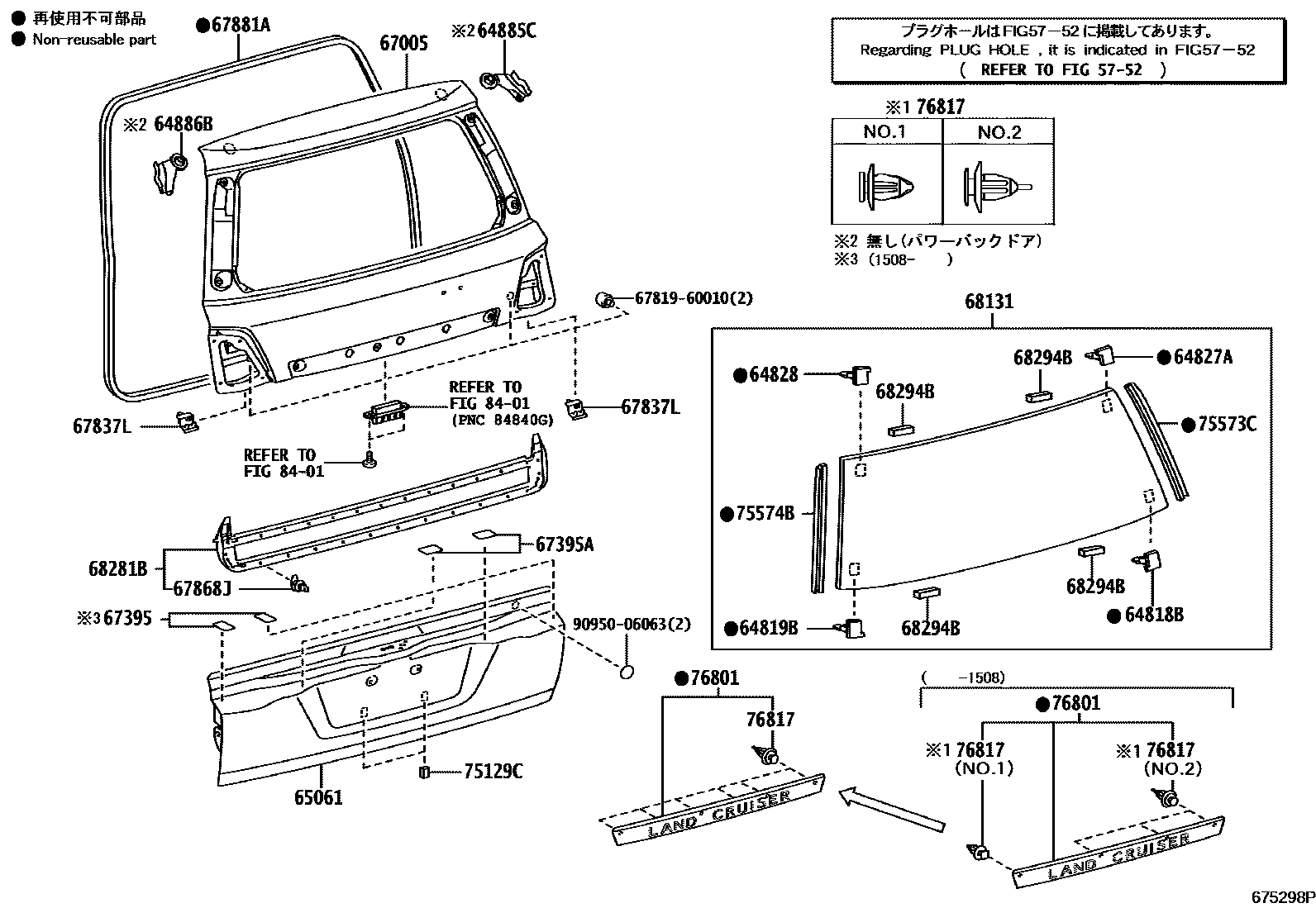

BACK DOOR PANEL & GLASS
5752
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67395PROTECTOR, BACK DOOR, LOWER
67395APROTECTOR, BACK DOOR, LOWER
67837LSEAL, DOOR DUST PROOF
67868JRETAINER, DOOR WEATHERSTRIP
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68281BWEATHERSTRIP, LIFT GATE
68294BDAM, BACK DOOR GLASS ADHESIVE
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
8401
6781960010PAD, BACK DOOR OUTSIDE PANEL
main67819-60010
9095006063
main90950-06063
25 parts on this diagram · 2 diagrams in section
