EPC Data

CONSOLE BOX & BRACKET

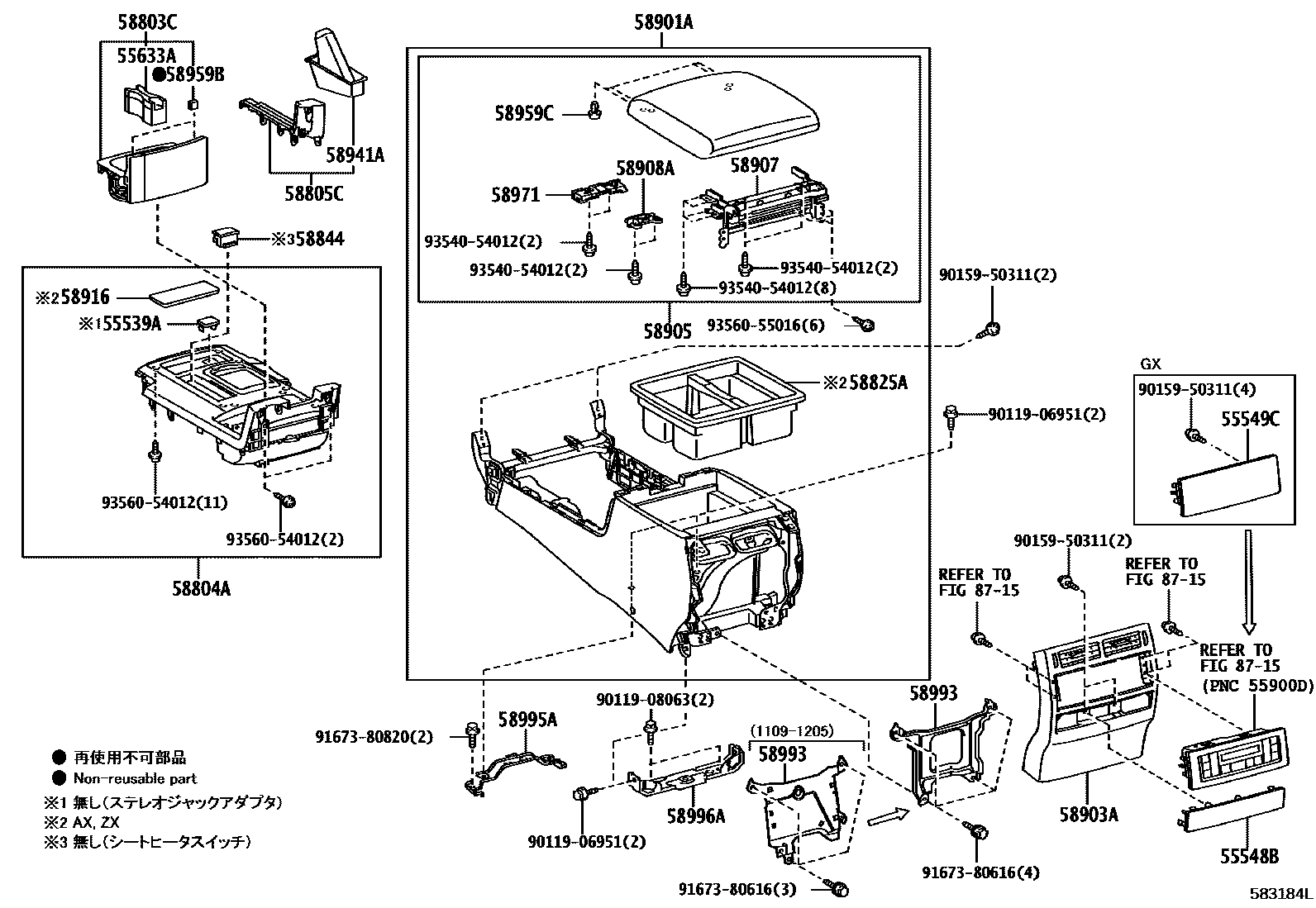

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-C0i200809-201508
BLACK
sub55539-52060
55548BCOVER, INSTRUMENT PANEL HOLE
main55548-60050-A0i201201-201508
main55548-60050-A0i201201-201508
SHELL,TRIM0#
main55548-60050-A1i201508-201708
FLAXEN,TRIM0#
main55548-60050-C0i200905-201508
BLACK,TRIM1#,2#
main55548-60050-C0i200709-202104
BLACK,TRIM1#
main55548-60050-C0i201201-201508
main55548-60050-C0i201201-201708
BLACK,TRIM2#,4#
main55548-60050-C0i200905-201201
main55548-60050-C0i201508-201708
BLACK,TRIM1#,2#,4#
main55548-60050-C0i201708-202104
BLACK,TRIM2#,42,46
main55548-60050-C0i201708-202104
BLACK,TRIM1#,2#,42,46
main55548-60050-E0i200709-201201
DK. BROWN,TRIM4#
main55548-60050-E1i201708-202104
NEUTRAL BEIGE,TRIM4#
main55548-60050-E1i201708-202104
NEUTRAL BEIGE,TRIM47
55549CCOVER, REAR COOLER SWITCH HOLE
main55549-60040-A0i201201-201508
SHELL,TRIM0#
sub55549-60041
main55549-60040-A1i201508-201703
FLAXEN,TRIM0#
sub55549-60041
main55549-60040-C0i201008-201703
BLACK,TRIM1#
sub55549-60041
main55549-60040-E0i201008-201201
DK. BROWN,TRIM4#
sub55549-60041
main55549-60041-A1i201704-201708
FLAXEN,TRIM0#
main55549-60041-C0i201704-202104
BLACK,TRIM1#
main55549-60041-E1i201708-202104
NEUTRAL BEIGE,TRIM4#
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
main55633-60040i200709-202104
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-60040-A1i201201-201508
sub58803-60040
main58803-60040-C0i200709-200905
sub58803-60040
main58803-60040-C0i200905-201201
sub58803-60040
main58803-60040-C1i201201-201508
sub58803-60040
main58803-60040-C1i201201-201508
sub58803-60040
main58803-60040-E0i200709-201201
sub58803-60040
main58803-60060-A0i201201-201508
SHELL,TRIM0#
main58803-60060-C0i201008-201508
BLACK,TRIM1#
main58803-60060-E0i201008-201201
DK. BROWN,TRIM4#
main58803-60330-A0i201508-201708
FLAXEN,TRIM0#
sub58803-60330
main58803-60330-C0i201508-201708
BLACK,TRIM2#,4#
sub58803-60330
main58803-60330-C0i201508-201708
BLACK,TRIM1#,2#,4#
sub58803-60330
main58803-60330-C0i201708-201908
BLACK,TRIM2#,42,46
sub58803-60330
main58803-60330-C0i201708-201908
BLACK,TRIM1#,2#,42,46
sub58803-60330
main58803-60330-C1i201908-202104
BLACK,TRIM2#,42,46
sub58803-60330
main58803-60330-C1i201908-202104
BLACK,TRIM1#,2#
sub58803-60330
main58803-60330-E0i201708-201908
NEUTRAL BEIGE,TRIM47
sub58803-60330
main58803-60330-E1i201908-202104
NEUTRAL BEIGE,TRIM4#
sub58803-60330
main58803-60330-E1i201908-202104
NEUTRAL BEIGE,TRIM47
sub58803-60330
main58803-60340-A0i201508-201708
FLAXEN,TRIM0#
main58803-60340-C0i201508-202104
BLACK,TRIM1#
main58803-60340-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-60450-C0i200905-201201
sub58804-60450
main58804-60450-C0i200709-200905
sub58804-60450
main58804-60450-E0i200709-201201
sub58804-60450
main58804-60470-C0i201008-201201
BLACK,TRIM1#
main58804-60470-E0i201008-201201
DK. BROWN,TRIM4#
main58804-60770-C0i200905-201201
sub58804-60770
main58804-60770-C0i200905-201201
sub58804-60770
main58804-60770-E0i200905-201201
sub58804-60770
main58804-60770-E0i200905-201201
sub58804-60770
main58804-60A00-A1i201201-201508
main58804-60A00-C1i201201-201508
main58804-60A00-C1i201201-201508
main58804-60A20-A0i201201-201508
SHELL,TRIM0#
main58804-60A20-C0i201201-201508
BLACK,TRIM1#
main58804-60J00-A1i201508-201708
FLAXEN,TRIM0#
main58804-60J00-C1i201508-201708
BLACK,TRIM2#,4#
main58804-60J00-C1i201508-201708
BLACK,TRIM1#,2#,4#
main58804-60J00-C1i201508-202104
BLACK,TRIM1#
main58804-60J00-C1i201708-202104
BLACK,TRIM2#,42,46
main58804-60J00-C1i201708-202104
BLACK,TRIM1#,2#,42,46
main58804-60J00-E0i201708-202104
NEUTRAL BEIGE,TRIM47
main58804-60J00-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-60060-A0i201201-201508
main58805-60060-A0i201201-201508
SHELL,TRIM0#
main58805-60060-C0i201201-201508
main58805-60060-C0i200709-200905
main58805-60060-C0i200905-201508
main58805-60060-C0i201008-201508
BLACK,TRIM1#
main58805-60060-E0i201008-201201
DK. BROWN,TRIM4#
main58805-60060-E0i200709-201201
main58805-60310-A1i201508-201708
FLAXEN,TRIM0#
main58805-60310-C0i201508-201708
BLACK,TRIM1#,2#,4#
main58805-60310-C0i201508-201708
BLACK,TRIM2#,4#
main58805-60310-C0i201508-202104
BLACK,TRIM1#
main58805-60310-C0i201708-202104
BLACK,TRIM2#,42,46
main58805-60310-C0i201708-202104
BLACK,TRIM1#,2#,42,46
main58805-60310-E0i201708-202104
NEUTRAL BEIGE,TRIM47
main58805-60310-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
58825APOCKET, CONSOLE BOX
main58806-60080i200709-201508
main58806-60080i201508-202104
58844BEZEL, CONSOLE BOX
main84656-60110i200709-201508
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-60630-C0i201008-201201
BLACK,TRIM1#
main58901-60630-E0i201008-201201
DK. BROWN,TRIM4#
main58901-60640-C0i200709-201201
BLACK,TRIM1#
main58901-60640-E0i200709-201201
DK. BROWN,TRIM4#
main58901-60650-C0i200905-201201
BLACK,TRIM1#,2#
main58901-60650-C0i200905-201201
main58901-60650-E0i200905-201201
DK. BROWN,TRIM4#
main58901-60750-A0i201201-201411
SHELL,TRIM0#
sub58901-60751
main58901-60750-C0i201201-201411
BLACK,TRIM1#
sub58901-60751
main58901-60751-A0i201412-201508
SHELL,TRIM0#
main58901-60751-C0i201412-201508
BLACK,TRIM1#
main58901-60760-A1i201201-201411
SHELL,TRIM0#
sub58901-60761
main58901-60760-C1i201201-201411
BLACK,TRIM1#
sub58901-60761
main58901-60761-A1i201412-201508
SHELL,TRIM0#
main58901-60761-C1i201412-201508
BLACK,TRIM1#
main58901-60770-A1i201201-201411
SHELL,TRIM0#
sub58901-60771
main58901-60770-A1i201201-201411
sub58901-60771
main58901-60770-C1i201201-201411
sub58901-60771
main58901-60770-C1i201201-201411
BLACK,TRIM2#,4#
sub58901-60771
main58901-60771-A1i201412-201508
SHELL,TRIM0#
main58901-60771-A1i201412-201508
main58901-60771-C1i201412-201508
BLACK,TRIM2#,4#
main58901-60771-C1i201412-201508
main58901-60840-A2i201508-201708
FLAXEN/SILVER HAIRLINE,TRIM0#
main58901-60840-C2i201508-201708
BLACK/SILVER HAIRLINE,TRIM2#,4#
main58901-60840-C2i201708-202104
BLACK/SILVER HAIRLINE,TRIM2#,42,46
main58901-60840-E0i201708-202104
NEUTRAL BEIGE,TRIM47
main58901-60880-A2i201508-201708
FLAXEN/FLAXEN,TRIM0#
main58901-60880-C2i201708-202104
BLACK/BLACK,TRIM1#,42,46
main58901-60880-C2i201508-201708
BLACK/BLACK,TRIM1#,4#
main58901-60880-C2i201508-202104
BLACK/BLACK,TRIM1#
main58901-60880-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
main58901-60880-E0i201708-202104
NEUTRAL BEIGE,TRIM47
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-60160-C0i200709-201010
BLACK,TRIM1#
sub58903-60161
main58903-60160-C0i200905-201010
BLACK,TRIM1#,2#
sub58903-60161
main58903-60160-E0i200709-201010
DK. BROWN,TRIM4#
sub58903-60161
main58903-60161-C0i201011-201201
BLACK,TRIM1#,2#
sub58903-60909
main58903-60161-C0i201011-201201
BLACK,TRIM1#
sub58903-60909
main58903-60161-E0i201011-201201
DK. BROWN,TRIM4#
sub58903-60909
main58903-60350-A0i201201-201508
SHELL,TRIM0#
main58903-60350-C0i201201-201508
BLACK,TRIM2#,4#
main58903-60350-C0i201201-201508
BLACK,TRIM1#,2#
main58903-60400-A0i201201-201508
SHELL,TRIM0#
main58903-60400-C0i201201-201508
BLACK,TRIM1#
main58903-60680-A0i201508-201708
FLAXEN,TRIM0#
main58903-60680-C0i201508-202104
BLACK,TRIM1#
main58903-60680-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
main58903-60690-A0i201508-201708
FLAXEN,TRIM0#
main58903-60690-C0i201508-201708
BLACK,TRIM2#,4#
main58903-60690-C0i201508-201708
BLACK,TRIM1#,2#,4#
main58903-60690-C0i201708-202104
BLACK,TRIM2#,42,46
main58903-60690-C0i201708-202104
BLACK,TRIM1#,2#,42,46
main58903-60690-E0i201708-202104
NEUTRAL BEIGE,TRIM47
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-60180-C0i201008-201201
BLACK,TRIM1#
main58905-60180-E0i201008-201201
DK. BROWN,TRIM4#
main58905-60190-C0i200709-201201
BLACK,TRIM1#
main58905-60190-E0i200709-201201
DK. BROWN,TRIM4#
main58905-60200-C0i200905-201201
main58905-60200-C0i200905-201201
BLACK,TRIM1#,2#
main58905-60200-E0i200905-201201
DK.BROWN,TRIM4#
main58905-60280-A0i201201-201508
SHELL,TRIM0#
main58905-60280-C0i201201-201508
BLACK,TRIM1#
main58905-60420-A1i201201-201508
SHELL,TRIM0#
main58905-60420-C1i201201-201508
BLACK,TRIM1#
main58905-60430-A2i201201-201508
SHELL,TRIM0#
main58905-60430-A2i201201-201508
main58905-60430-C2i201201-201508
main58905-60430-C2i201201-201508
BLACK,TRIM2#,4#
main58905-60550-A2i201508-201708
FLAXEN/SILVER HAIRLINE,TRIM0#
main58905-60550-C2i201708-202104
BLACK,TRIM2#,42,46
main58905-60550-C2i201508-201708
BLACK,TRIM2#,4#
main58905-60550-E0i201708-202104
NEUTRAL BEIGE,TRIM47
main58905-60610-A0i201508-201708
FLAXEN/FLAXEN,TRIM0#
main58905-60610-C0i201508-202104
BLACK/BLACK,TRIM1#
main58905-60610-C0i201708-202104
BLACK/BLACK,TRIM1#,42,46
main58905-60610-C0i201508-201708
BLACK/BLACK,TRIM1#,4#
main58905-60610-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
main58905-60610-E0i201708-202104
NEUTRAL BEIGE,TRIM47
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-60060i200709-202104
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-60040i200709-202104
58916MAT, BOX BOTTOM
main58916-60080i200709-201508
main58916-60100i200905-201201
58941ACOVER, PARKING BRAKE HOLE
main58809-60070-A0i201201-201508
SHELL,TRIM0#
main58809-60070-C0i200709-201508
BLACK,TRIM1#
main58809-60070-C0i200905-201508
BLACK,TRIM1#,2#
main58809-60070-C0i201201-201508
BLACK,TRIM2#,4#
main58809-60070-E0i200709-201201
DK. BROWN,TRIM4#
main58809-60120-A0i201508-201708
FLAXEN,TRIM0#
main58809-60120-C0i201508-201708
BLACK,TRIM1#,2#,4#
main58809-60120-C0i201508-201708
BLACK,TRIM2#,4#
main58809-60120-C0i201508-202104
BLACK,TRIM1#
main58809-60120-C0i201708-202104
BLACK,TRIM2#,42,46
main58809-60120-C0i201708-202104
BLACK,TRIM1#,2#,42,46
main58809-60120-E1i201708-202104
NEUTRAL BEIGE,TRIM4#
main58809-60120-E1i201708-202104
NEUTRAL BEIGE,TRIM47
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60030i200709-202104
58959CCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060i200709-202104
58971LOCK, CONSOLE COMPARTMENT DOOR
main58971-60030i200709-201201
main58971-60060i201508-202104
main58971-60060i201201-201508
main58971-60080-A0i201508-201708
FLAXEN,TRIM0#
main58971-60080-C0i201708-202104
BLACK,TRIM1#,42,46
main58971-60080-C0i201508-201708
BLACK,TRIM1#,4#
main58971-60080-C0i201508-202104
BLACK,TRIM1#
main58971-60080-E0i201708-202104
NEUTRAL BEIGE,TRIM4#
main58971-60080-E0i201708-202104
NEUTRAL BEIGE,TRIM47
58993BRACKET, CONSOLE BOX MOUNTING, REAR
main58993-60090i200709-201508
main58993-60090i200709-202104
main58993-60090i200709-200905
main86719-60310i201109-201205
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-60070i200709-202104
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-60080i200709-202104
8715
9011906951
main90119-06951
9011908063
main90119-08063
9015950311
main90159-50311
9167380616
main91673-80616
9167380820
main91673-80820
9354054012
main93540-54012
9356054012
main93560-54012
9356055016
main93560-55016

31 parts on this diagram · 4 diagrams in section

CONSOLE BOX & BRACKET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
