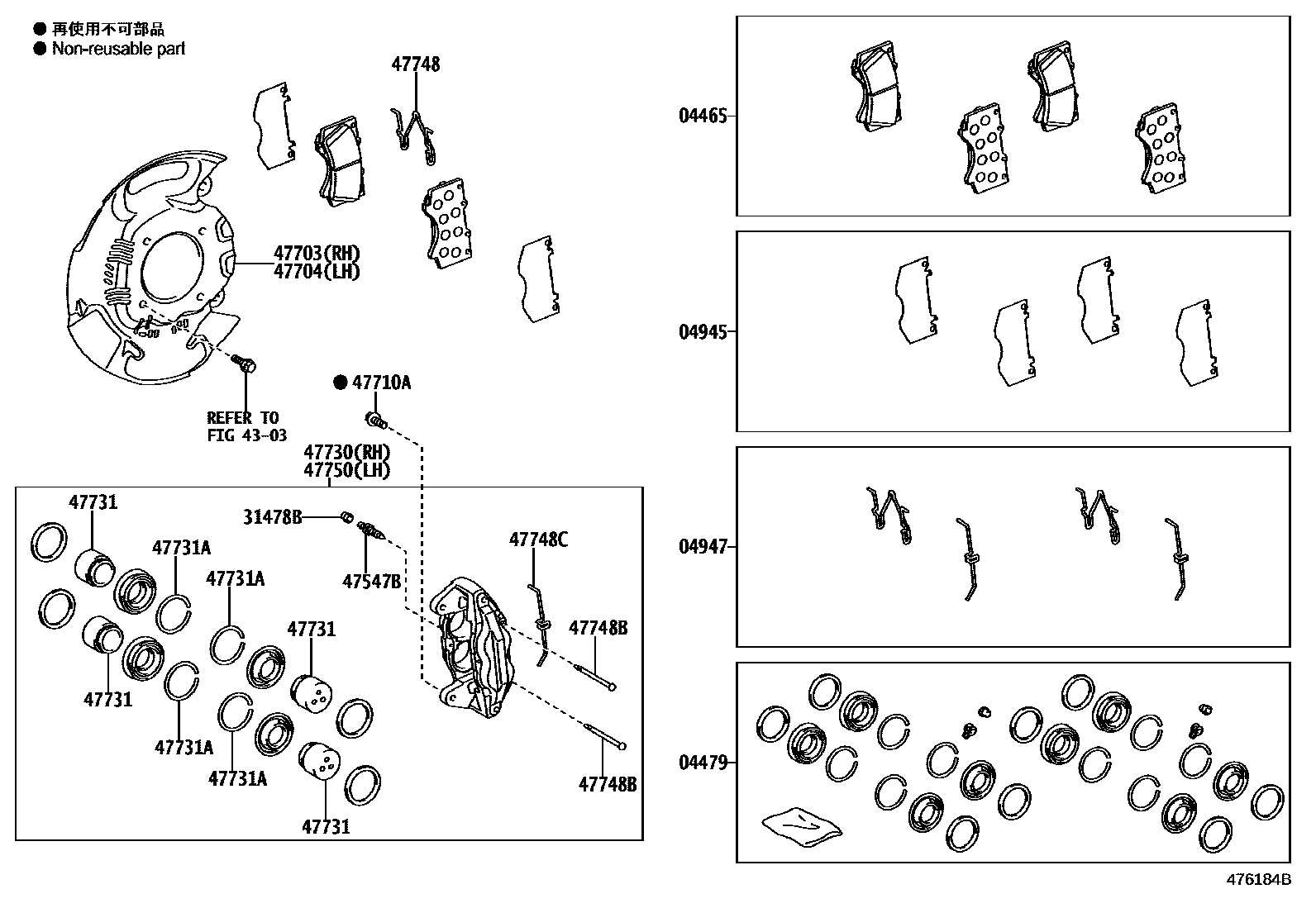

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60280iURJ202200709-201201

main04465-60281iURJ202201908-202104

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iURJ202201508-202104

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60080iURJ202201201-201508

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60140iUZJ200200709-200905

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iUZJ200200709-200905

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iUZJ200200709-200905

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-60090iUZJ200200709-200905

main47703-60100supersedes 47703-60090iURJ202..AX,ZX; URJ202..GX201508-202104

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-60090iUZJ200200709-200905

main47704-60100supersedes 47704-60090iURJ202..AX,ZX; URJ202..GX201508-202104

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14198×4iURJ202201508-202104

main91672-L1240×4iUZJ200200709-200905

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60280iUZJ200200709-200905

main47730-60320supersedes 47730-60340iURJ202..AX,ZX; URJ202..GX201508-202104

47731PISTON, FRONT DISC BRAKE

main47731-60280×8iUZJ200200709-200905

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-56003×8iUZJ200200709-200905

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60280×2iUZJ200200709-200905

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024×4iUZJ200200709-200905

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-60280×2iUZJ200200709-200905

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60280iUZJ200200709-200905

main47750-60320supersedes 47750-60340iURJ202..AX,ZX; URJ202..GX201508-202104

17 parts on this diagram · 1 diagram in section
