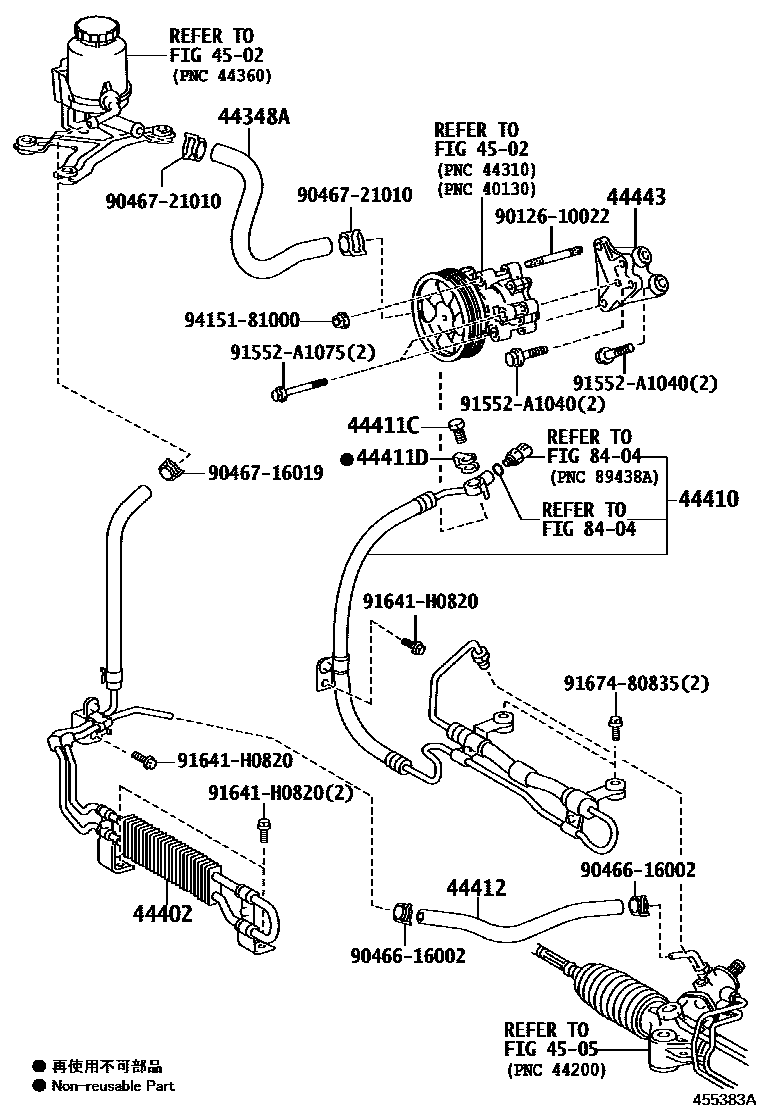

POWER STEERING TUBE

0001 1 0002 1 0004 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60400iUZJ200200709-200905

main44348-60410iURJ202200905-201201

main44348-60480iURJ202..ZX201508-202104

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-60030iUZJ200200709-200808

main44402-60031iUZJ200200809-200905

44410TUBE ASSY, PRESSURE FEED

main44410-60660iUZJ200200709-200905

main44410-60670iURJ202200905-201201

main44410-60A10iURJ202..ZX201508-202104

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iUZJ200200709-200905

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iUZJ200200709-200905

44412HOSE, RETURN

main44412-60330iURJ202,UZJ200200709-201201

44443BRACKET, PUMP

main44443-60100iUZJ200200709-200905

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9012610022

main90126-10022

9046616002

main90466-16002

9046716019

main90467-16019

9046721010

main90467-21010

91552A1040

main91552-A1040

91552A1075

main91552-A1075

91641H0820

main91641-H0820

9167480835

main91674-80835

9415181000

main94151-81000

19 parts on this diagram · 3 diagrams in section
