IGNITION COIL & SPARK PLUG / GLOW PLUG

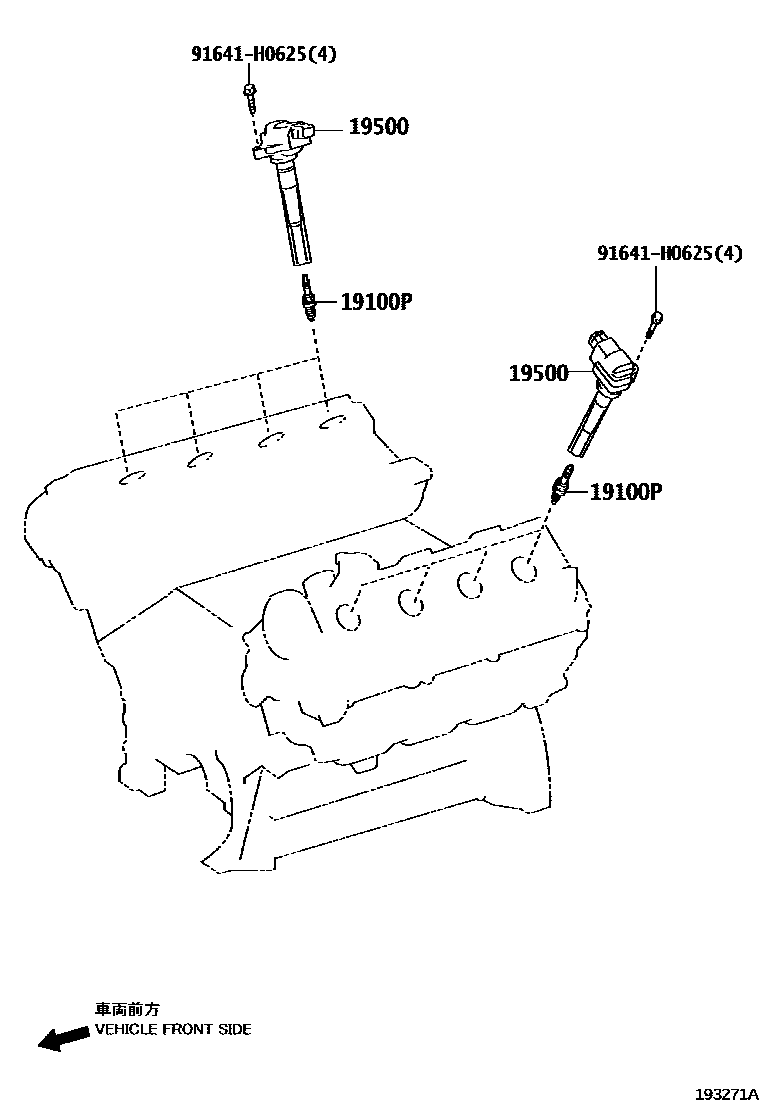

Parts diagram

19100PPLUG, SPARK

main90919-01191i200905-202104

main90919-01210i200709-200905

main90919-01211i200709-200905

19500COIL ASSY, IGNITION

main90919-02249i200709-200905

main90919-02250i200905-200907

main90919-02256i200907-202104

main90919-A2003i200905-200907

91641H0625

main91641-H0625

3 parts on this diagram · 2 diagrams in section
