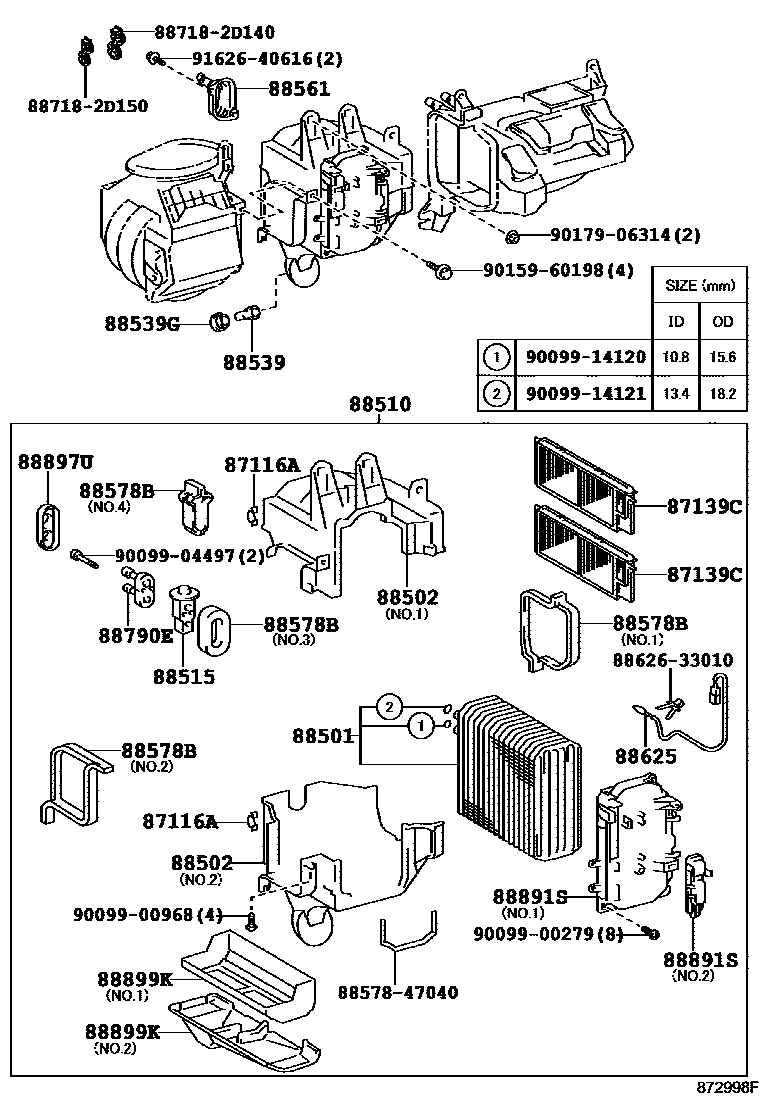

HEATING & AIR CONDITIONING - COOLER UNIT
87116ASPRING, HOLDING (FOR COOLER UNIT CASE)
87139CFILTER, CLEAN AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88502CASE SUB-ASSY, COOLING UNIT
88510UNIT ASSY, COOLER
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88561COVER, COOLER UNIT
88578BPACKING, COOLING UNIT, NO.1
88625THERMISTOR, COOLER, NO.1
88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER
88891SCOVER, COOLER, NO.1
88897UPIPE, ASPIRATOR
88899KPLATE, COVER
8857847040PAKING, COOLER AIR DUCT
main88578-47040
8862633010CASE, BLOWER DRIVE SHAFT BEARING
main88626-33010
887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D140
887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D150
9009900279
main90099-00279
9009900968
main90099-00968
9009904497
main90099-04497
9009914120
main90099-14120
9009914121
main90099-14121
9015960198
main90159-60198
9017906314
main90179-06314
9162640616
main91626-40616
27 parts on this diagram · 3 diagrams in section
