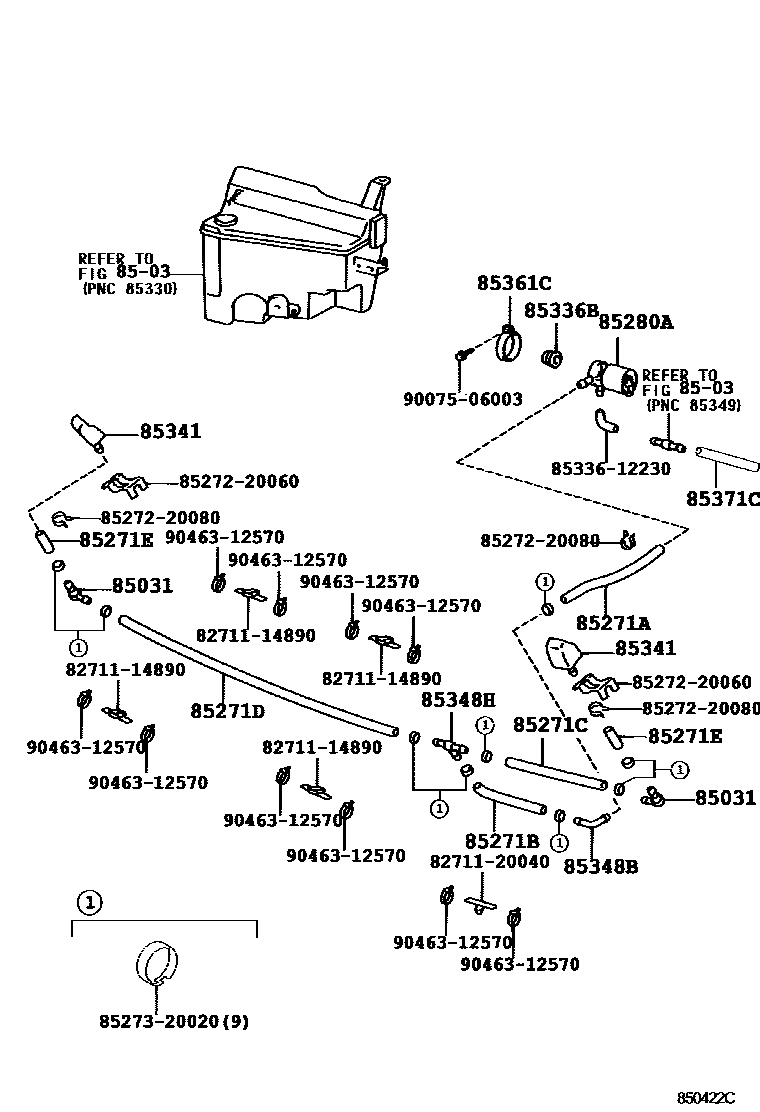

HEADLAMP CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iHDJ101,UZJ100199801-200208

main85299-33020×2iHDJ101,UZJ100200208-200505

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-12050iUZJ100..CYG200505

main85375-12062iHDJ101,UZJ100..VX,VXL200505

85271AHOSE, HEADLAMP CLEANER, NO.2

main85275-89146iHDJ101,UZJ100..VX,VXL200505

main85275-90K00iUZJ100..CYG200505

main85375-20171iHDJ101,UZJ100..VX,VXL200208-200505

main85375-22061iUZJ100..CYG200208-200505

main90075-15008iUZJ100..CYG199901-200208

main90075-15009iHDJ101,UZJ100..VX,VXL199801-200208

85271BHOSE, HEADLAMP CLEANER, NO.3

main85271-22060iHDJ101,UZJ100..VX,VXL199801-200208

main85275-42020iHDJ101,UZJ100..VX,VXL200505

main85275-89146iUZJ100..CYG200505

main85375-14150iUZJ100..CYG200208-200505

main85376-14301iUZJ100..CYG200208-200505

main85377-12380iHDJ101,UZJ100..VX,VXL200208-200505

main90075-15010iUZJ100..CYG199901-200208

main90445-14072iUZJ100..CYG200507

85271CHOSE, HEADLAMP CLEANER, NO.4

main85343-95A06iHDJ101,UZJ100..VX,VXL199801-200208

main85375-20190iUZJ100..CYG199901-200208

main85375-22061iHDJ101,UZJ100..VX,VXL200505

main90075-15028iUZJ100..CYG200505

main90445-14035iUZJ100..CYG200208-200505

main90445-14055iHDJ101,UZJ100..VX,VXL200208-200505

85271DHOSE, HEADLAMP CLEANER, NO.5

main85275-50010iHDJ101,UZJ100..VX,VXL199801-200208

main85375-14240iUZJ100..CYG199901-200208

main85375-22061iUZJ100..CYG200507

main85378-22070iHDJ101,UZJ100..VX,VXL200505

main90445-14035iUZJ100..CYG200505-200506

main90445-14040iHDJ101,UZJ100..VX,VXL200208-200505

main90445-14042iUZJ100..CYG200208-200505

85271EHOSE, HEADLAMP CLEANER, NO.6

main85271-20020iUZJ100..CYG200208-200505

main85375-16020×2iHDJ101,UZJ100199801-200208

main85375-32011×2iHDJ101,UZJ100..VX,VXL; UZJ100..CYG200208-200505

main90445-14042iUZJ100..CYG200505-200506

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30020iHDJ101,UZJ100199801-200208

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iHDJ101,UZJ100199801-200208

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-60060×2iHDJ101,UZJ100..VX,VXL200208-200505

main85044-60070×2iUZJ100..CYG199901-200005

main85044-60090-A0×2iUZJ100..CYG200005-200208

WHITE PEARL MC.,057

main85044-60090-A1×2iUZJ100..CYG200012-200112

50TH ANNIVERSARY EDITION *(A),WHITE PEARL CS.,064

main85044-60090-A2×2iUZJ100..CYG200208-200505

WHITE PEARL CS.,070

main85044-60090-A3×2iUZJ100..CYG200505

WHITE PEARL CS.,062

main85044-60090-B1×2iUZJ100..CYG200505

SILVER ME.,1F7

main85044-60090-D0×2iUZJ100..CYG200208-200505

DK. GRAY M.,202

main85044-60090-E1×2iUZJ100..CYG200005-200208

LT.GRAYISH BEIGE ME.,4M9

main85044-60090-E2×2iUZJ100..CYG200208-200505

BEIGE PEARL CS.,4R2

main85044-60090-G0×2iUZJ100..CYG200505

OLIVE M.M.,6T7

main85044-60090-H2×2iUZJ100..CYG200008-200208

MEDIUM GRAY ME.,202

main85044-60100-A0×2iHDJ101,UZJ100..VXL200012-200112

50TH ANNIVERSARY EDITION *(A),*(B),WHITE PEARL CS.SHINE,064

main85044-60120×2iHDJ101,UZJ100..CYG,VXL200308-200407

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85279-14160iUZJ100..CYG200208-200505

main85352-12010iHDJ101,UZJ100200505

main85379-22080iUZJ100..CYG200208-200505

main85379-89131iHDJ101,UZJ100..VX,VXL200208-200505

main85379-90K04iHDJ101,UZJ100199801-200208

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main85279-33020iUZJ100..CYG199901-200208

main85352-12010iHDJ101,UZJ100..VX,VXL199801-200208

main85378-60520iHDJ101,UZJ100..VX,VXL200208-200505

main85378-60530iUZJ100..CYG200208-200505

85361CBRACKET, WASHER

main85361-33020iHDJ101,UZJ100199801-200208

85371CHOSE, HEADLAMP CLEANER, NO.1

main85359-60120iHDJ101,UZJ100199801-200208

8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14890

8271120040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20040

8527220060CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20060

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8533612230SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-12230

9007506003

main90075-06003

9046312570

main90463-12570
