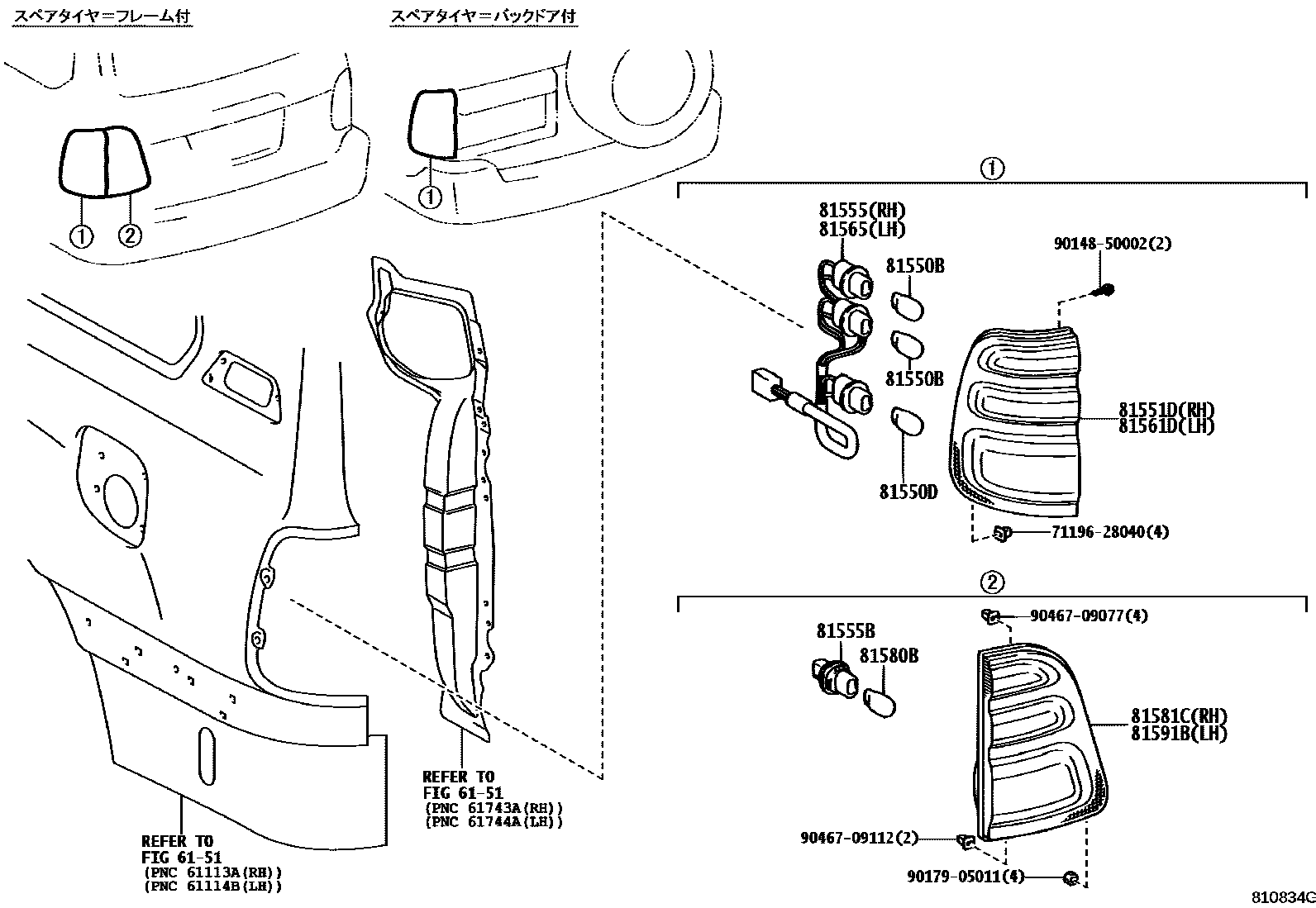

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1

6151SIDE MEMBER

→ Go to FIG 61-51

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×4iHDJ101,UZJ100..VX,VXL199801-200208

main90981-15011×2iHDJ101,UZJ100..VX,VXL200208-200505

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044×2iHDJ101,UZJ100199801-200208

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60560iHDJ101,UZJ100..VX,VXL199801-200208

main81551-60580iUZJ100..CYG199901-200208

main81551-60610iUZJ100..CYG199901-200208

main81551-60680iHDJ101,UZJ100..VX,VXL200208-200505

main81551-60750iHDJ101,UZJ100..VX,VXL200505-200610

main81551-60751iHDJ101,UZJ100..VX,VXL200610

main81551-60770iUZJ100..CYG200505-200611

main81551-60771iUZJ100..CYG200612

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60560iHDJ101,UZJ100..VX,VXL199801-200208

main81555-60590iUZJ100..CYG200208-200505

main81555-60680iHDJ101,UZJ100..VX,VXL200208-200505

main81555-60750iHDJ101,UZJ100..VX,VXL200505

main81555-60770iUZJ100..CYG200505

81555BSOCKET PLUG, NO.1

main90075-60002×2iHDJ101,UZJ100..VX,VXL199801-200208

main90075-60003×2iHDJ101,UZJ100..VX,VXL; UZJ100..CYG200208-200505

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60480iHDJ101,UZJ100..VX,VXL199801-200208

main81561-60500iUZJ100..CYG199901-200208

main81561-60530iUZJ100..CYG199901-200208

main81561-60600iHDJ101,UZJ100..VX,VXL200208-200505

main81561-60670iHDJ101,UZJ100..VX,VXL200505-200610

main81561-60671iHDJ101,UZJ100..VX,VXL200610

main81561-60690iUZJ100..CYG200505-200611

main81561-60691iUZJ100..CYG200612

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60560iHDJ101,UZJ100..VX,VXL199801-200208

main81555-60590iUZJ100..CYG199901-200208

main81555-60680iHDJ101,UZJ100..VX,VXL200208-200505

main81555-60750iHDJ101,UZJ100..VX,VXL200505

main81555-60770iUZJ100..CYG200505

81580BBULB (FOR REAR LAMP)

main90981-13043×2iHDJ101,UZJ100..VX,VXL; UZJ100..CYG200208-200505

main90981-13044×2iHDJ101,UZJ100199801-200208

81581CLENS AND BODY, REAR LAMP, RH

main81581-60010iHDJ101,UZJ100..VX,VXL199801-200208

main81581-60020iHDJ101,UZJ100..VX,VXL200208-200505

main81581-60040iUZJ100..CYG199901-200208

main81581-60070iHDJ101,UZJ100..VX,VXL200208-200505

main81581-60090iUZJ100..CYG200208-200505

main81581-60140iHDJ101,UZJ100..VX,VXL200505-200610

main81581-60141iHDJ101,UZJ100..VX,VXL200610

main81581-60170iUZJ100..CYG200505-200611

main81581-60171iUZJ100..CYG200612

81591BLENS AND BODY, REAR LAMP, LH

main81591-60040iHDJ101,UZJ100..VX,VXL199801-200208

main81591-60050iHDJ101,UZJ100..VX,VXL200208-200505

main81591-60070iUZJ100..CYG199901-200208

main81591-60100iHDJ101,UZJ100..VX,VXL200208-200505

main81591-60120iUZJ100..CYG200208-200505

main81591-60170iHDJ101,UZJ100..VX,VXL200505-200610

main81591-60171iHDJ101,UZJ100..VX,VXL200610

main81591-60200iUZJ100..CYG200505-200611

main81591-60201iUZJ100..CYG200612

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9014850002

main90148-50002

9017905011

main90179-05011

9046709077

main90467-09077

9046709112

main90467-09112

16 parts on this diagram · 5 diagrams in section
