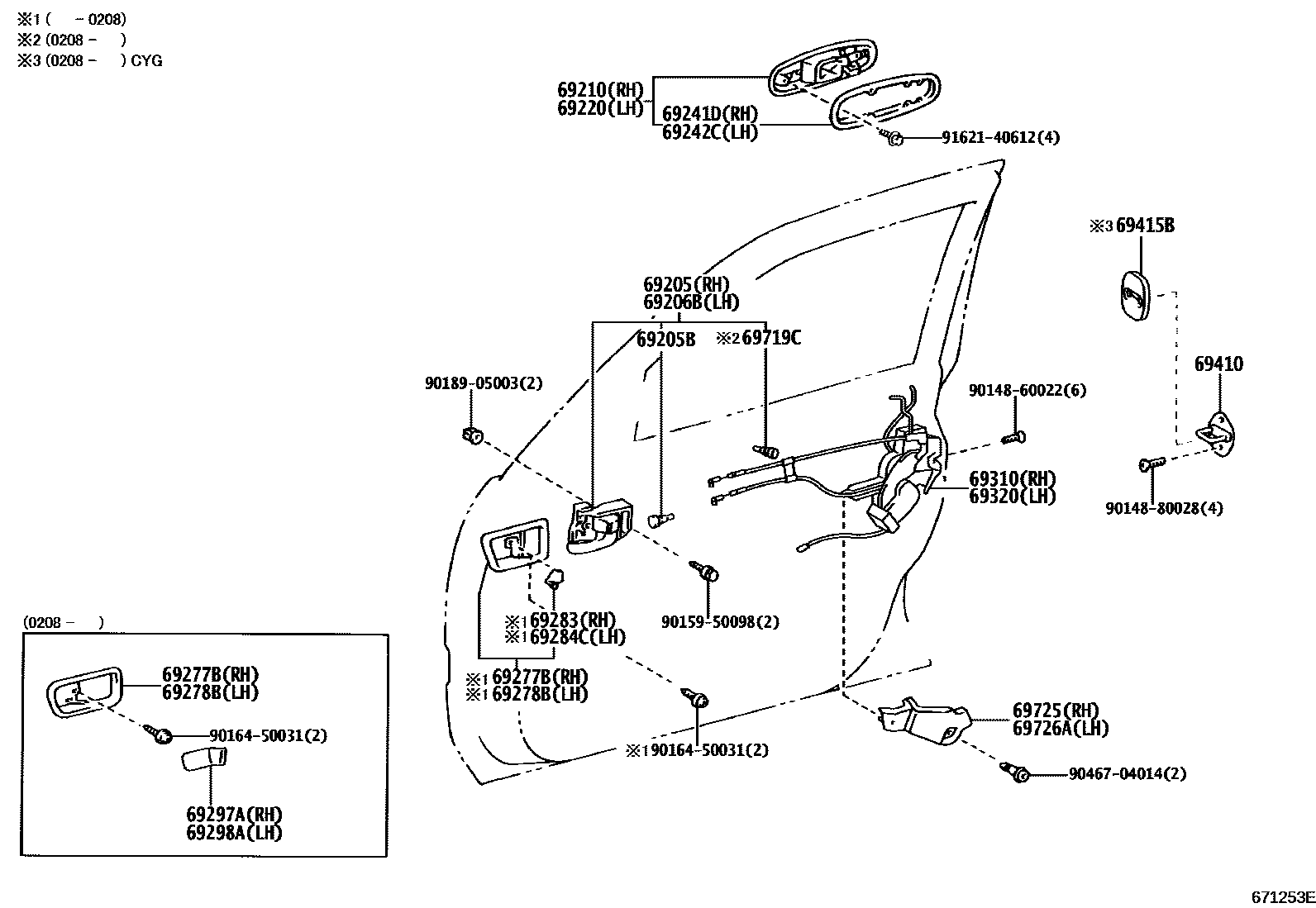

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
50TH ANNIVERSARY EDITION *(A),*(B),WHITE PEARL CS.,064
sub69210-60071
sub69210-60071
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
50TH ANNIVERSARY EDITION *(A),*(B),WHITE PEARL CS.,064
sub69220-60071
sub69220-60071
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
STONE,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
STONE,TRIM1#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
IVORY,TRIM0#
STONE,TRIM1#
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
IVORY,TRIM0#
STONE,TRIM1#
69310LOCK ASSY, FRONT DOOR, RH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69719CCUSHION, DOOR LOCK CONTROL
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
9014860022
main90148-60022
9014880028
main90148-80028
9015950098
main90159-50098
9016450031
main90164-50031
9018905003
main90189-05003
9046704014
main90467-04014
9162140612
main91621-40612
27 parts on this diagram · 1 diagram in section
