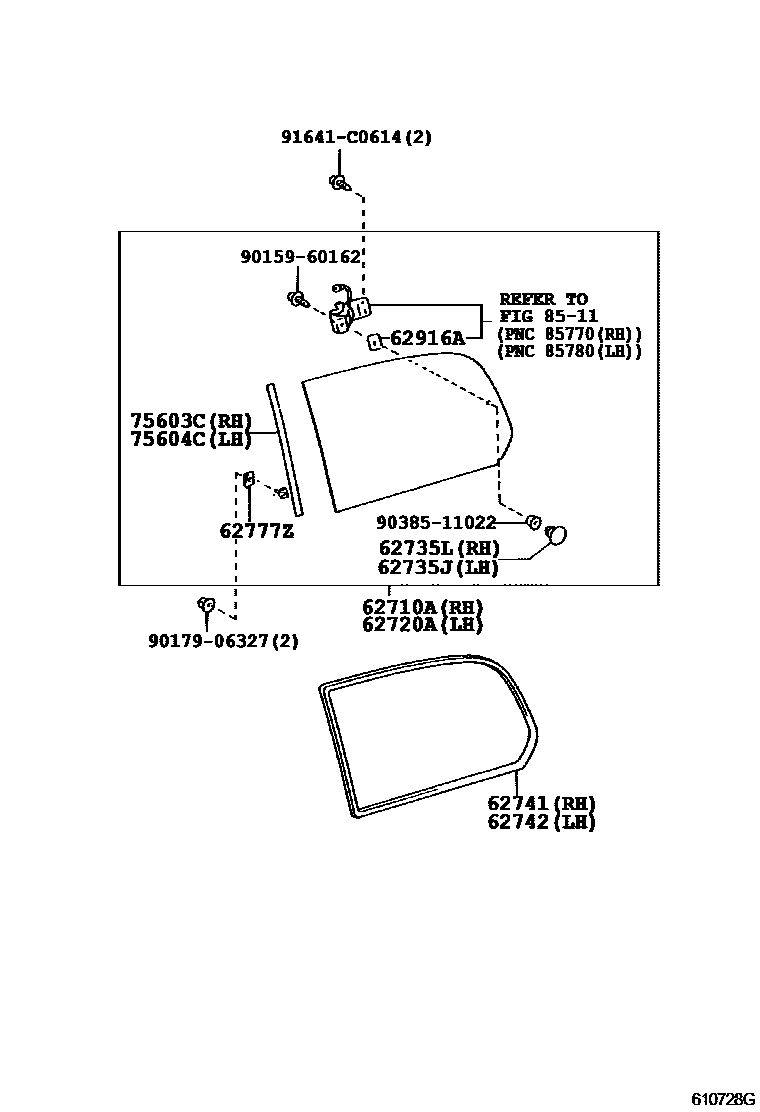

SIDE WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-60730iHDJ101199801-200208

main62710-60750-A0iHDJ101,UZJ100199801-199808

main62710-60750-B0iHDJ101,UZJ100199801-199808

main62710-60751-A0iHDJ101,UZJ100..VX; HDJ101,UZJ100..VXL199808-200208

main62710-60751-B0iHDJ101,UZJ100..VX,VXL199808-200208

main62710-60770iHDJ101..VXL199907-200005

main62710-60780iHDJ101199801-199907

main62710-60790-A0iHDJ101,UZJ100199801-199808

main62710-60790-B0iHDJ101,UZJ100199801-199808

main62710-60791-A0iHDJ101,UZJ100..VX,VXL199808-199907

main62710-60791-B0iHDJ101,UZJ100..VXL199907-200005

main62710-60800-A0iHDJ101,UZJ100199801-199808

main62710-60800-B0iHDJ101,UZJ100199801-199808

main62710-60801-A0iHDJ101,UZJ100..VX,VXL199808-199907

main62710-60801-A1iUZJ100..VXL200208-200301

main62710-60801-B0iHDJ101,UZJ100..VX,VXL199808-199907

main62710-60801-B1iUZJ100..VXL200208-200301

main62710-60803-A1iUZJ100..VXL200301-200308

main62710-60803-B1iUZJ100..VXL200301-200308

main62710-60871iUZJ100..CYG199901-200208

main62710-60873iUZJ100..CYG200301-200308

main62710-60A11iHDJ101;UZJ100..VX200301-200308

main62710-60A40iHDJ101;UZJ100..VX200308-200505

main62710-60A50-A0iUZJ100..VXL200308-200505

main62710-60A50-B0iUZJ100..VXL200308-200505

main62710-60A70iUZJ100..CYG200505-200708

62720AWINDOW ASSY, QUARTER, LH

main62720-60640iHDJ101199801-200208

main62720-60660-A0iHDJ101,UZJ100199801-199808

main62720-60660-B0iHDJ101,UZJ100199801-199808

main62720-60661-A0iHDJ101,UZJ100..VX; HDJ101,UZJ100..VXL199808-200208

main62720-60661-B0iHDJ101,UZJ100..VX,VXL199808-200208

main62720-60680iHDJ101199801-199907

main62720-60690iHDJ101..VXL199810-200208

main62720-60700-A0iHDJ101,UZJ100199801-199808

main62720-60700-B0iHDJ101,UZJ100199801-199808

main62720-60701-A0iHDJ101,UZJ100..VX,VXL199808-199907

main62720-60701-B0iHDJ101,UZJ100..VX,VXL199808-199907

main62720-60710-A0iHDJ101,UZJ100199801-199808

main62720-60710-B0iHDJ101,UZJ100199801-199808

main62720-60711-A0iHDJ101,UZJ100..VXL199810-200208

main62720-60711-A1iUZJ100..VXL200208-200301

main62720-60711-B0iHDJ101,UZJ100199808-199810

main62720-60711-B1iUZJ100..VXL200208-200301

main62720-60713-A1iUZJ100..VXL200301-200308

main62720-60713-B1iUZJ100..VXL200301-200308

main62720-60721iUZJ100..CYG200208-200301

main62720-60723iUZJ100..CYG200301-200308

main62720-60781iUZJ100..CYG200208-200301

main62720-60783iUZJ100..CYG200301-200308

main62720-60A11iHDJ101;UZJ100..VX200301-200308

main62720-60A21iHDJ101;UZJ100..VX200301-200308

main62720-60A50iHDJ101;UZJ100..VX200505-200708

main62720-60A70iUZJ100..CYG200308-200505

main62720-60A80iHDJ101;UZJ100..VX200308-200505

main62720-60A90-A0iUZJ100..VXL200308-200505

main62720-60A90-B0iUZJ100..VXL200308-200505

main62720-60B00iUZJ100..CYG200505-200708

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-28040iUZJ100..CYG,VXL200208-200505

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-28040iHDJ101,UZJ100199801-200208

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-60090iHDJ101,UZJ100199801-200208

main62741-60091iUZJ100..CYG,VXL200403-200505

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-60080iHDJ101,UZJ100199801-200208

main62742-60081iUZJ100..CYG,VXL200403-200505

62777ZPLATE, QUARTER WINDOW RETAINER

main62777-60010×2iUZJ100..CYG199901-200208

62916APAD, SIDE WINDOW LOCK

main62916-60010iUZJ100..CYG199901-200208

75603CMOULDING,QUARTER WINDOW,OUTSIDE FRONT RH

main75641-60021iHDJ101,UZJ100199801-200208

75604CMOULDING,QUARTER WINDOW,OUTSIDE FRONT LH

main75642-60021iHDJ101,UZJ100199801-200208

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9015960162

main90159-60162

9017906327

main90179-06327

9038511022

main90385-11022

91641C0614

main91641-C0614

15 parts on this diagram · 2 diagrams in section
