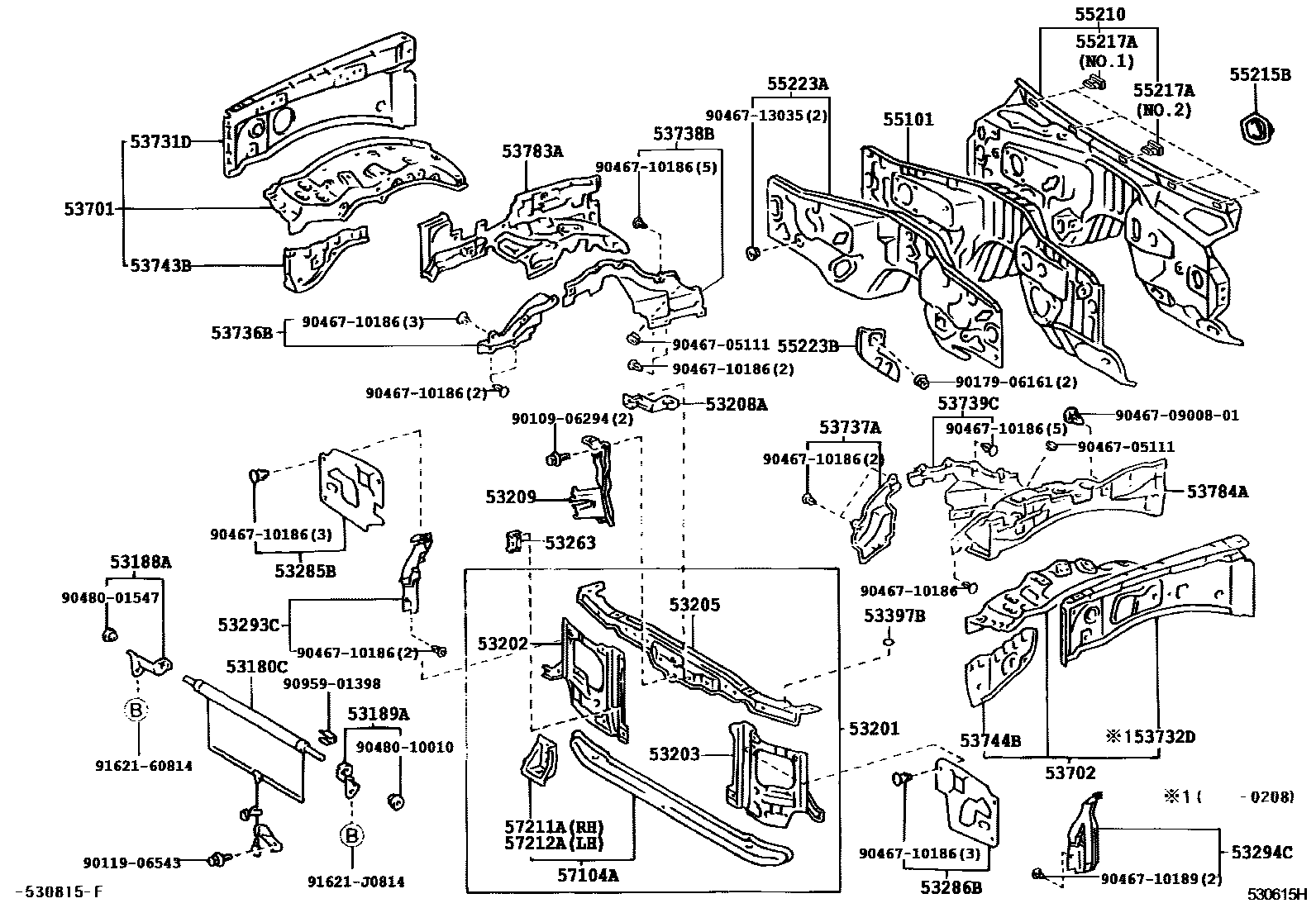

FRONT FENDER APRON & DASH PANEL

53180CSHUTTER ASSY, RADIATOR

main53180-60030iHDJ101200208-200505

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-60020iHDJ101199801-200208

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-60010iHDJ101199801-200208

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60050iHDJ101,UZJ100199801-200201

main53201-60051iHDJ101,UZJ100200201-200205

main53201-60052iHDJ101;UZJ100..CYG200208-200412

main53201-60140iHDJ101,UZJ100200205-200208

main53201-60180iHDJ101,UZJ100200505

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-60060iHDJ101,UZJ100199801-200201

main53202-60061iHDJ101,UZJ100200201-200205

main53202-60062iHDJ101,UZJ100200412-200505

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-60090iHDJ101,UZJ100199801-200201

main53203-60091iHDJ101,UZJ100200201-200205

main53203-60092iHDJ101,UZJ100200412-200505

main53203-60180iHDJ101,UZJ100200205-200208

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-60010iHDJ101,UZJ100199801-200208

main53205-60040iHDJ101,UZJ100200412-200505

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-60010iUZJ100..CYG199901-200208

53209BRACE SUB-ASSY, HOOD LOCK

main53209-60050iHDJ101,UZJ100..VX,VXL199801-200201

main53209-60051iHDJ101,UZJ100..VX,VXL200201-200208

main53209-60060iUZJ100..CYG199901-200201

main53209-60061iUZJ100..CYG200208-200411

main53209-60062iUZJ100..CYG200505

main53209-60090iHDJ101,UZJ100..VX,VXL200208-200411

main53209-60091iHDJ101,UZJ100..VX,VXL200503-200505

53263RETAINER, INTERCOOLER MOUNTING

main53263-60010iHDJ101,UZJ100199801-200208

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-60061iHDJ101,UZJ100..CYG,VXL200208-200505

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-60051iHDJ101,UZJ100..CYG,VXL200208-200505

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-60010iUZJ100..CYG200208-200505

main53293-60020iHDJ101200208-200505

main53293-60030iUZJ100..VXL200208-200505

main53293-60040iHDJ101200505

main53293-60050iUZJ100..VXL200505

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-60030iUZJ100..CYG200208-200505

main53294-60040iHDJ101,UZJ100..VXL200208-200505

main53294-60060iHDJ101,UZJ100..VXL200505

53397BSEAL, RADIATOR, UPPER

main53397-60010×2iHDJ101,UZJ100200107-200208

53701APRON SUB-ASSY, FRONT FENDER, RH

main53710-60180iHDJ101199801-199906

main53710-60181iHDJ101199906-200204

main53710-60182iHDJ101200208-200411

main53710-60183iHDJ101200412-200505

main53710-60190iUZJ100199801-199906

main53710-60191iUZJ100199906-200204

main53710-60192iUZJ100200208-200411

main53710-60193iUZJ100200505

main53710-60200iHDJ101200204-200208

main53710-60210iUZJ100200204-200208

53702APRON SUB-ASSY, FRONT FENDER, LH

main53720-60170iHDJ101,UZJ100199801-200204

main53720-60172iHDJ101,UZJ100200208-200302

main53720-60173iHDJ101,UZJ100200302-200409

main53720-60174iHDJ101,UZJ100200410-200411

main53720-60175iHDJ101,UZJ100200412-200505

main53720-60176iHDJ101,UZJ100200607

main53720-60180iHDJ101,UZJ100200204-200208

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-60040iHDJ101,UZJ100199801-199906

main53705-60041iHDJ101,UZJ100199906-200208

main53705-60042iHDJ101,UZJ100200412-200505

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53706-60030iHDJ101,UZJ100199801-200208

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53736-60080iUZJ100199801-200208

main53736-60081iUZJ100200703

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53737-60070iHDJ101,UZJ100199801-200208

53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH

main53738-60050iHDJ101,UZJ100199801-200208

main53738-60051iHDJ101,UZJ100200703

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-60040iHDJ101,UZJ100199801-200208

main53739-60041iHDJ101,UZJ100200703

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-60050iHDJ101,UZJ100199801-200208

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-60050iHDJ101,UZJ100199801-200208

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-60050iHDJ101199801-200208

main53783-60070iHDJ101200208-200505

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-60040iHDJ101199801-200204

main53784-60041iHDJ101200204-200208

main53784-60060iHDJ101200208-200409

main53784-60061iHDJ101200410-200505

55101PANEL SUB-ASSY, DASH

main55101-60A10iHDJ101200308-200505

main55101-6D120iHDJ101..MTM199801-200208

main55101-6D310iUZJ100..VX,VXL199801-199907

main55101-6D330iUZJ100..VX,VXL199801-200208

main55101-6D350iHDJ101200208-200505

main55101-6E530iUZJ100..VX,VXL200208-200505

main55101-6E540iUZJ100..CYG,VXL200505

55210INSULATOR ASSY, DASH PANEL

main55210-60070iHDJ101,UZJ100199801-200204

main55210-60071iHDJ101,UZJ100200204-200208

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-60010iHDJ101,UZJ100199801-200208

main55215-60011iHDJ101,UZJ100..VX,VXL200312-200505

55217ARETAINER, DASH PANEL SILENCER

main55217-60010×4iHDJ101,UZJ100200505

main55217-60020iHDJ101,UZJ100200412-200505

55223AINSULATOR, DASH PANEL, OUTER

main55223-60220iHDJ101,UZJ100199801-200204

main55223-60221iHDJ101,UZJ100200204-200208

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-60040iHDJ101,UZJ100199801-200208

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-60040iHDJ101,UZJ100199801-200208

57211ABRACKET, BODY MOUNTING, NO.1 RH

main57211-60010iHDJ101,UZJ100199801-200208

57212ABRACKET, BODY MOUNTING, NO.1 LH

main57212-60010iHDJ101,UZJ100199801-200208

9010906294

main90109-06294

9011906543

main90119-06543

9017906161

main90179-06161

9046705111

main90467-05111

904670900801

main90467-0900801

9046710186

main90467-10186

9046710189

main90467-10189

9046713035

main90467-13035

9048001547

main90480-01547

9048010010

main90480-10010

9095901398

main90959-01398

9162160814

main91621-60814

91621J0814

main91621-J0814

49 parts on this diagram · 1 diagram in section
