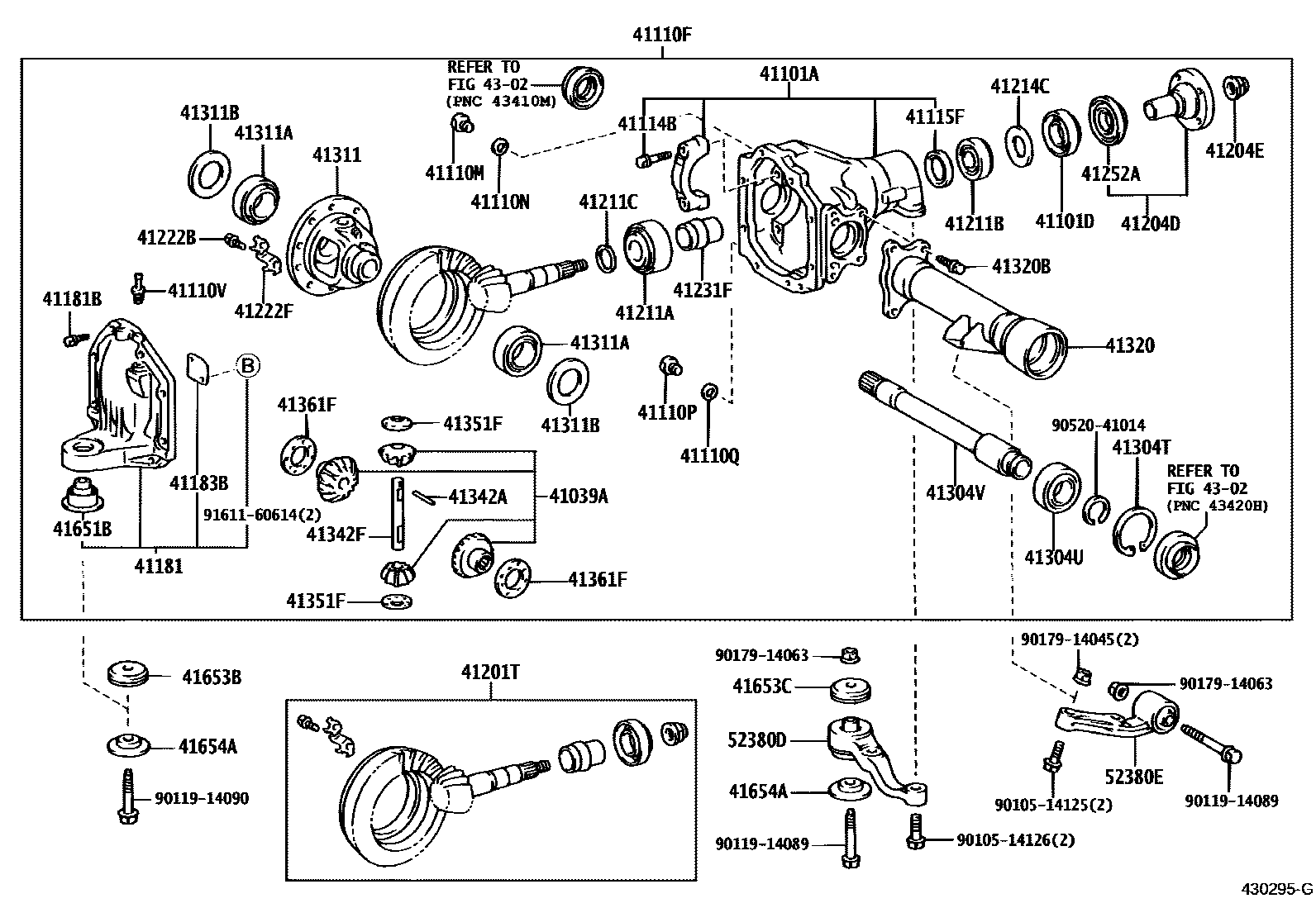

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110VUNION (FOR FRONT DIFFERENTIAL)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304UBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH)
41304VSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41320TUBE ASSY, FRONT DIFFERENTIAL
41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41651BCUSHION, FRONT DIFFERENTIAL MOUNT, NO.1
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
4302
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
52380ESUPPORT ASSY, DIFFERENTIAL
9010514125
main90105-14125
9010514126
main90105-14126
9011914089
main90119-14089
9011914090
main90119-14090
9017914045
main90179-14045
9017914063
main90179-14063
9052041014
main90520-41014
9161160614
main91611-60614
52 parts on this diagram · 3 diagrams in section
