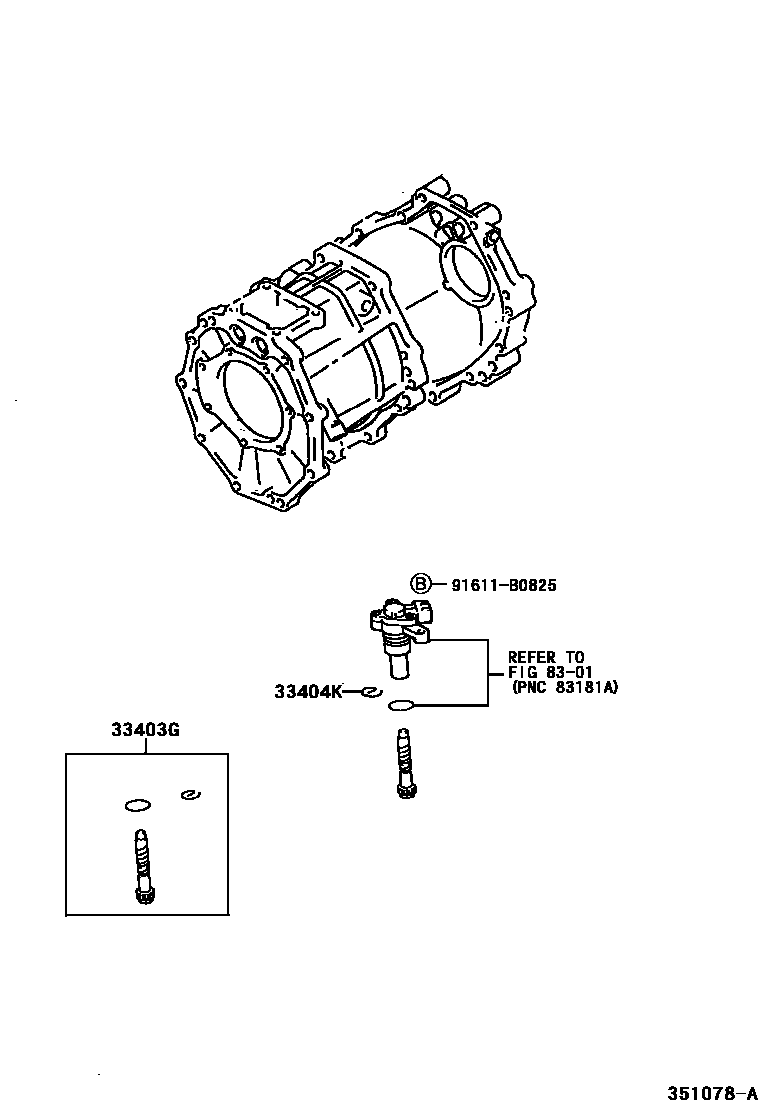

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19595iHDJ101..ATM199801-200208

main33403-69305iUZJ100199801-200208

main33403-69335iHDJ101200208-200505

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iHDJ101,UZJ100200505

8301METER

→ Go to FIG 83-01

91611B0825

main91611-B0825

4 parts on this diagram · 1 diagram in section
