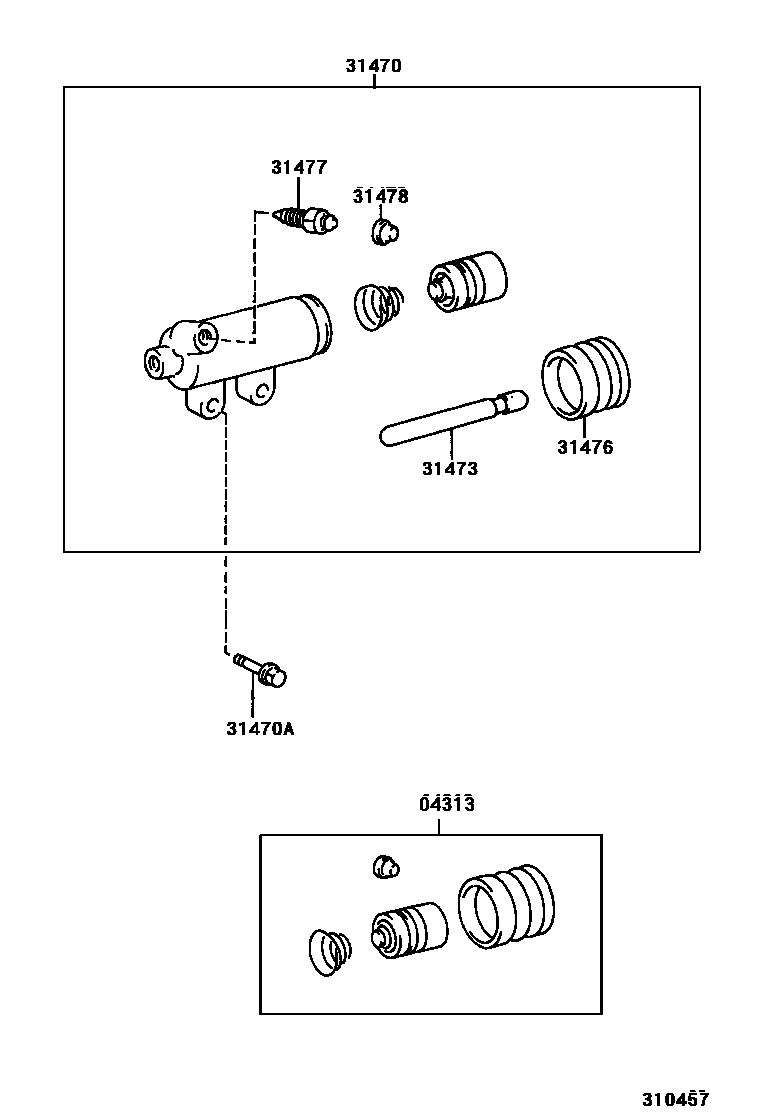

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-60140iHDJ101..MTM199801-200208

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60270iHDJ101..MTM199801-200208

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iHDJ101..MTM199801-200208

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60141iHDJ101..MTM199801-200208

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iHDJ101..MTM199801-200208

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iHDJ101..MTM199801-200208

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iHDJ101..MTM199801-200208

7 parts on this diagram · 1 diagram in section
