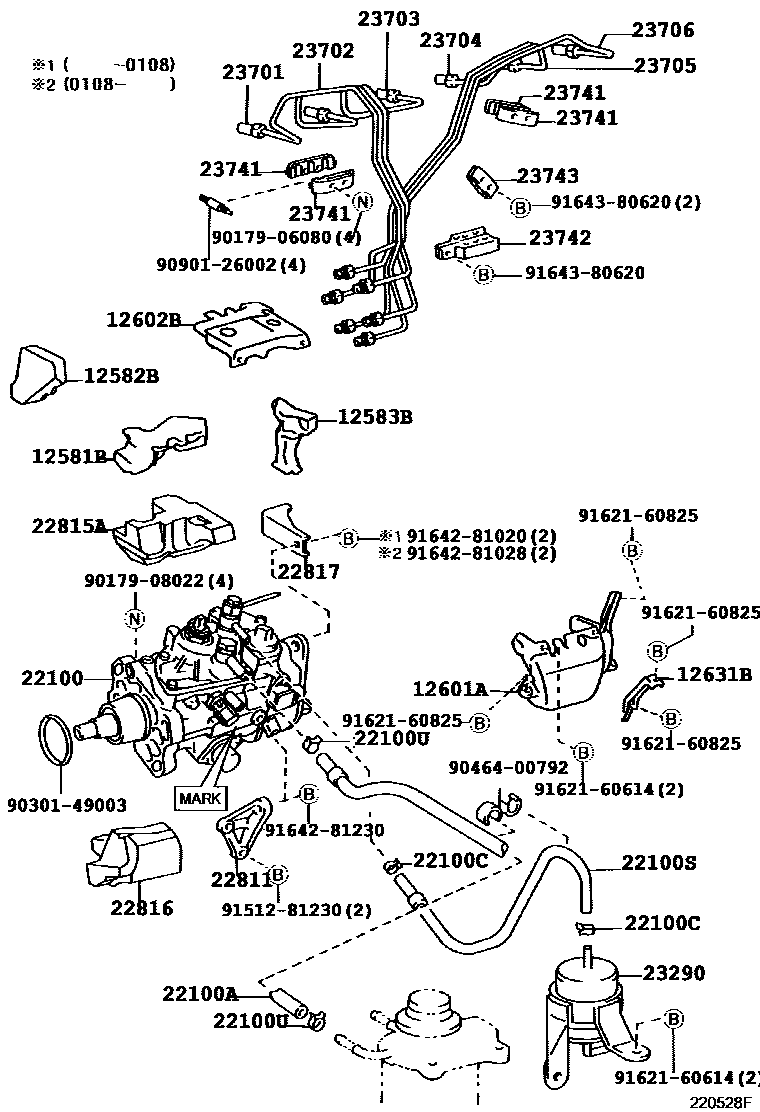

INJECTION PUMP ASSEMBLY
12581BINSULATOR, CYLINDER BLOCK, NO.1
12582BINSULATOR, CYLINDER BLOCK, NO.2
12583BINSULATOR, CYLINDER BLOCK, NO.3
12601AINSULATOR, CYLINDER BLOCK
12602BCOVER SUB-ASSY, ENGINE, NO.2
12631BBRACKET, ENGINE COVER
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100CCLAMP, FUEL HOSE, NO.2
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)
22811STAY, INJECTION PUMP, NO.1
22815AINSULATOR, INJECTION PUMP
22816INSULATOR, INJECTION PUMP, NO.2
22817BRACKET, PUMP STAY
23290DAMPER ASSY, FUEL SUCTION
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23705PIPE SUB-ASSY, INJECTION, NO.5
23706PIPE SUB-ASSY, INJECTION, NO.6
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
9017906080
main90179-06080
9017908022
main90179-08022
9030149003
main90301-49003
9046400792
main90464-00792
9090126002
main90901-26002
9151281230
main91512-81230
9162160614
main91621-60614
9162160825
main91621-60825
9164281020
main91642-81020
9164281028
main91642-81028
9164281230
main91642-81230
9164380620
main91643-80620
37 parts on this diagram · 2 diagrams in section
