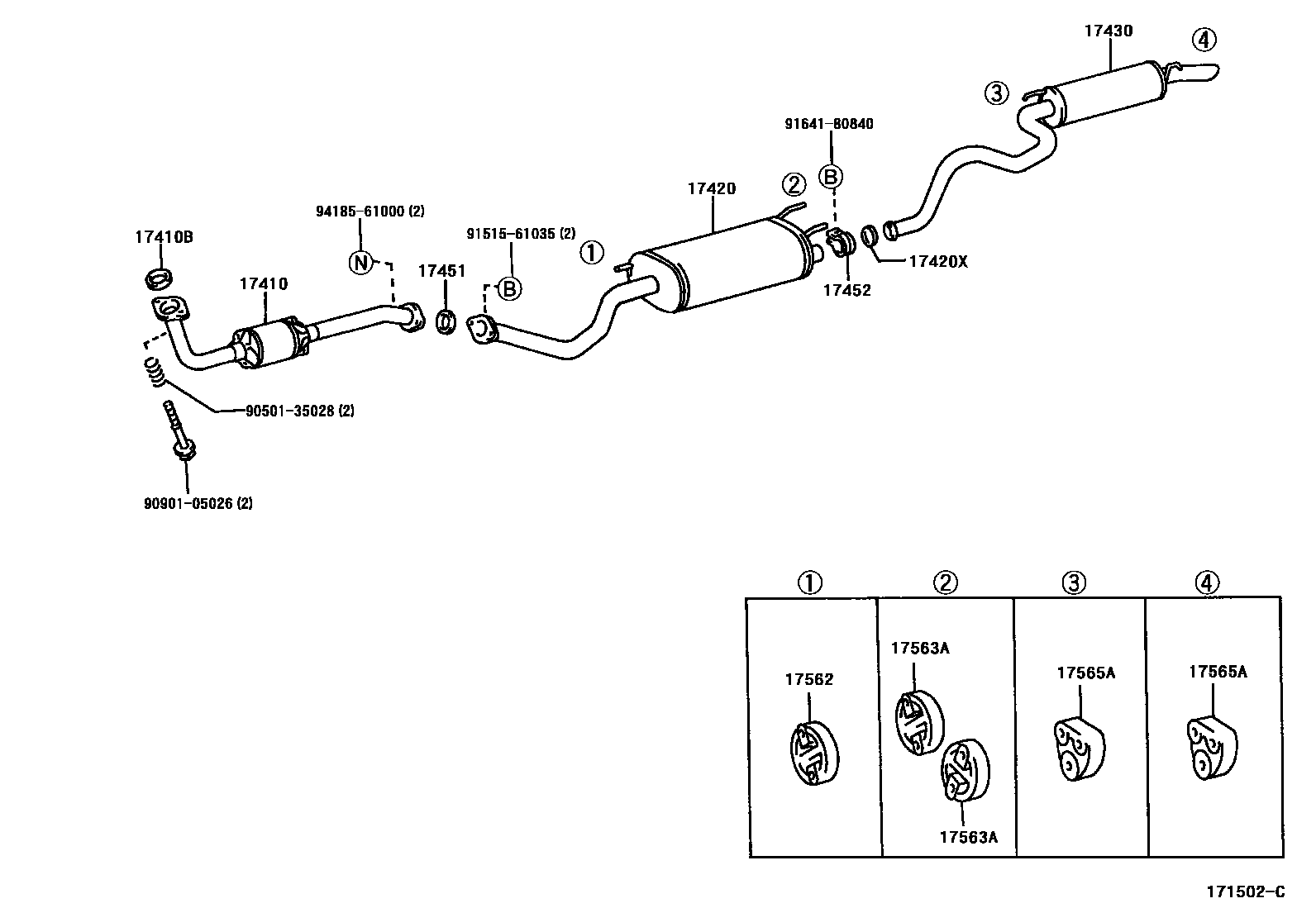

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17452CLAMP, EXHAUST PIPE
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
9050135028
main90501-35028
9090105026
main90901-05026
9151561035
main91515-61035
9164180840
main91641-80840
9418561000
main94185-61000
15 parts on this diagram · 3 diagrams in section
