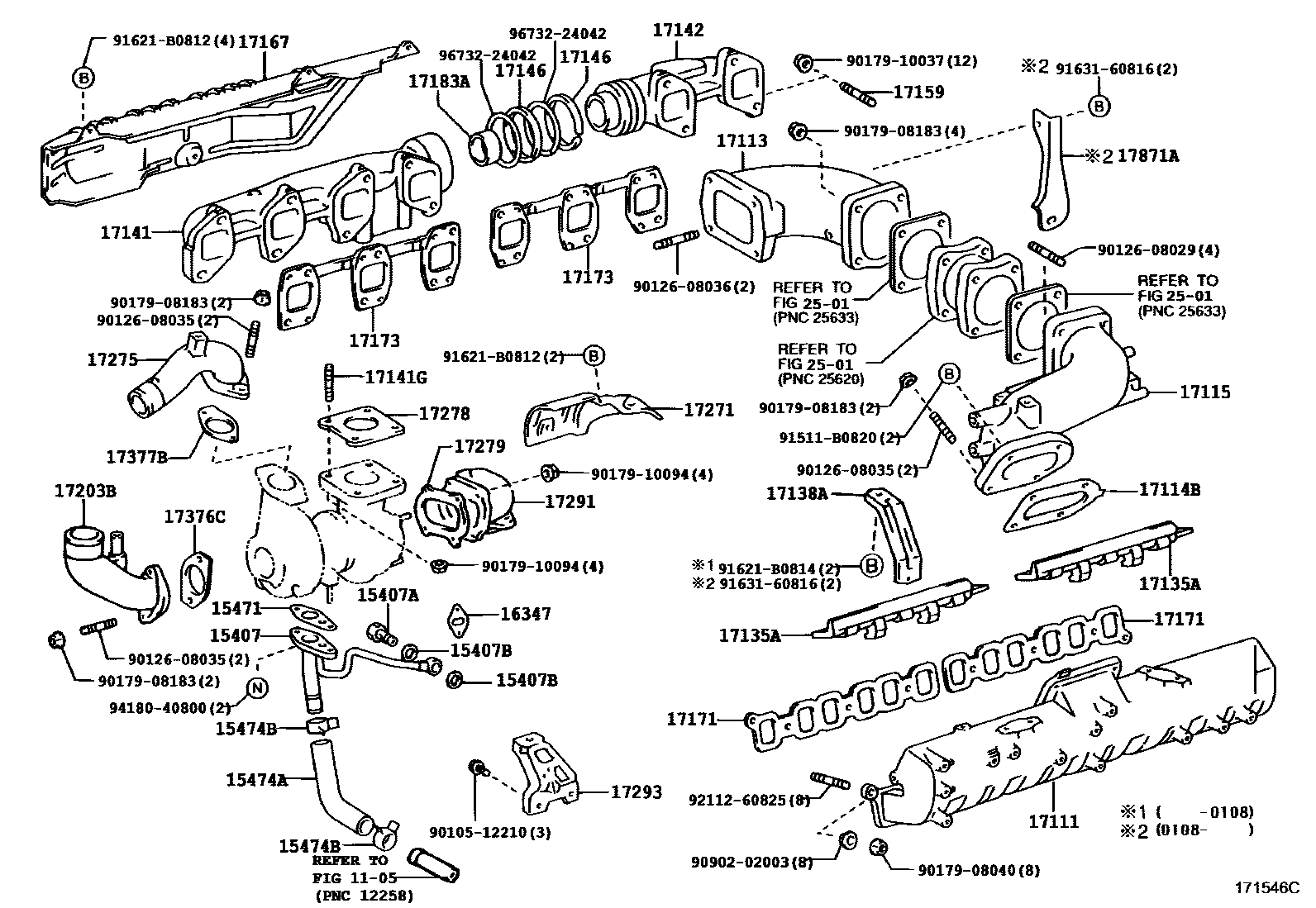

MANIFOLD
1105
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15474AHOSE, TURBO OIL OUTLET
16347GASKET, WATER BY-PASS
17113PIPE, INTAKE
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138ASTAY, INTAKE PIPE
17141GBOLT, STUD(FOR TURBOCHARGER)
17142CASE, EXHAUST MANIFOLD, NO.2
17146RING, EXHAUST MANIFOLD
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17171GASKET, INTAKE TO EXHAUST MANIFOLD
17173GASKET, EXHAUST MANIFOLD TO HEAD
17183ACOLLAR, MANIFOLD
17203BELBOW SUB-ASSY, COMPRESSOR INLET
17271INSULATOR, TURBO, NO.1
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17291ELBOW, TURBINE OUTLET
17293STAY, TURBOCHARGER
17376CGASKET, AIR TUBE
17377BGASKET, AIR TUBE, NO.2
17871ASTAY, AIR CONNECTOR
2501
9010512210
main90105-12210
9012608029
main90126-08029
9012608035
main90126-08035
9012608036
main90126-08036
9017908040
main90179-08040
9017908183
main90179-08183
9017910037
main90179-10037
9017910094
main90179-10094
9090202003
main90902-02003
91511B0820
main91511-B0820
91621B0812
main91621-B0812
91621B0814
main91621-B0814
9163160816
main91631-60816
9211260825
main92112-60825
9418040800
main94180-40800
9673224042
main96732-24042
50 parts on this diagram · 5 diagrams in section
