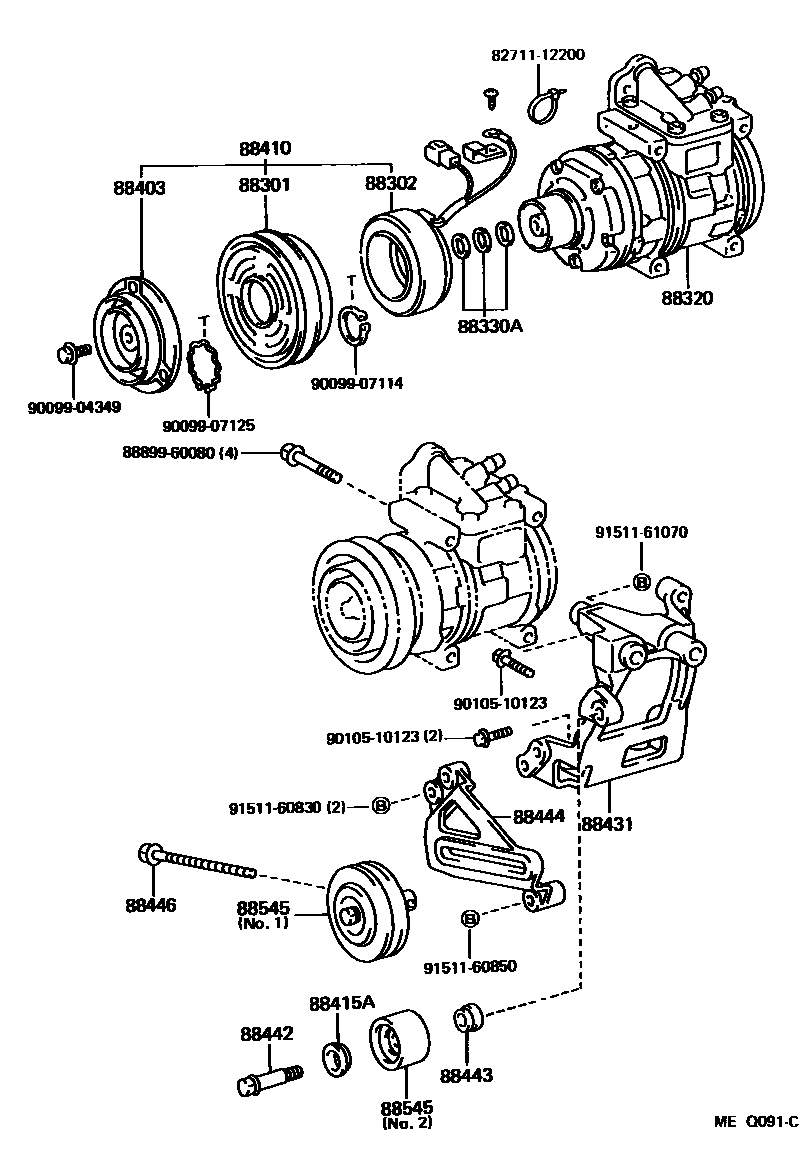

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26030iFJ80199001-199108

main88412-30430iHDJ81,HZJ81199501-199801

main88412-35030iHDJ81; HZJ81199001-199108

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iHDJ81,HZJ81199305-199801

main88411-2B080iHDJ81,HZJ81199208-199305

main88411-35020iFJ80;HZJ81..MTM; HDJ81199001-199108

main88411-35030iHDJ81;HZJ81..ATM; HZJ81..MTM199001-199108

88320COMPRESSOR ASSY, COOLER

main88320-60340iHDJ81; HZJ81199001-199108

main88320-60370iFJ80199108-199208

main88320-60450iFZJ80199208-199305

main88320-60560iHDJ81,HZJ81199305-199501

main88320-60580iFZJ80199305-199801

main88320-60630iHDJ81,HZJ81199501-199801

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iFJ80; HDJ81,HZJ81..MTM; HDJ81..ATM199001-199108

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iFJ80,HZJ81; HDJ81..ATM; HDJ81..MTM199001-199108

main88403-30290iHDJ81,HZJ81199305-199801

88410CLUTCH ASSY, MAGNET

main88410-22480iHDJ81,HZJ81199501-199801

main88410-26110iFZJ80199305-199801

main88410-35120iHDJ81; HZJ81199001-199108

main88410-60190iFJ80199108-199208

main88410-60290iFZJ80199208-199305

main88410-60310iHDJ81,HZJ81199305-199501

88415ACOVER, DUST

main88415-36050iFJ80199001-199108

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60140iFJ80199108-199208

main88431-60150iHDJ81..GX;HDJ81,HZJ81..DSL,TD2199108-199801

main88431-60200iFZJ80199208-199801

main88431-60260iHDJ81..LUB199501-199801

88442SHAFT, IDLE PULLEY

main88442-36010iFJ80199108-199208

88443COLLAR, IDLE PULLEY

main88443-36010iFJ80199001-199108

88444BRACKET, IDLE PULLEY

main88444-60050iHDJ81..LUB199501-199801

main88444-60090iFJ80199001-199108

main88444-60100iHZJ81..STD199108-199305

main88444-60110iHZJ81;HDJ81..GX199501-199801

88446BOLT, IDLE PULLEY

main88446-35010iHZJ81..STD199108-199305

main88446-35040iFZJ80199208-199801

main88446-60030iHDJ81; HZJ81..ATM199101-199108

88545PULLEY ASSY, IDLE

main88440-12160iFJ80199001-199101

main88440-26090iFZJ80199208-199801

main88440-35010iHZJ81199001-199108

main88440-36100iFJ80199001-199108

main88440-60040iHDJ81;HZJ81..ATM; HZJ81..MTM199001-199108

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889960080COVER, EVAPORATOR

main88899-60080

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010510123

main90105-10123

9151160830

main91511-60830

9151160850

main91511-60850

9151161070

main91511-61070

22 parts on this diagram · 4 diagrams in section
