HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

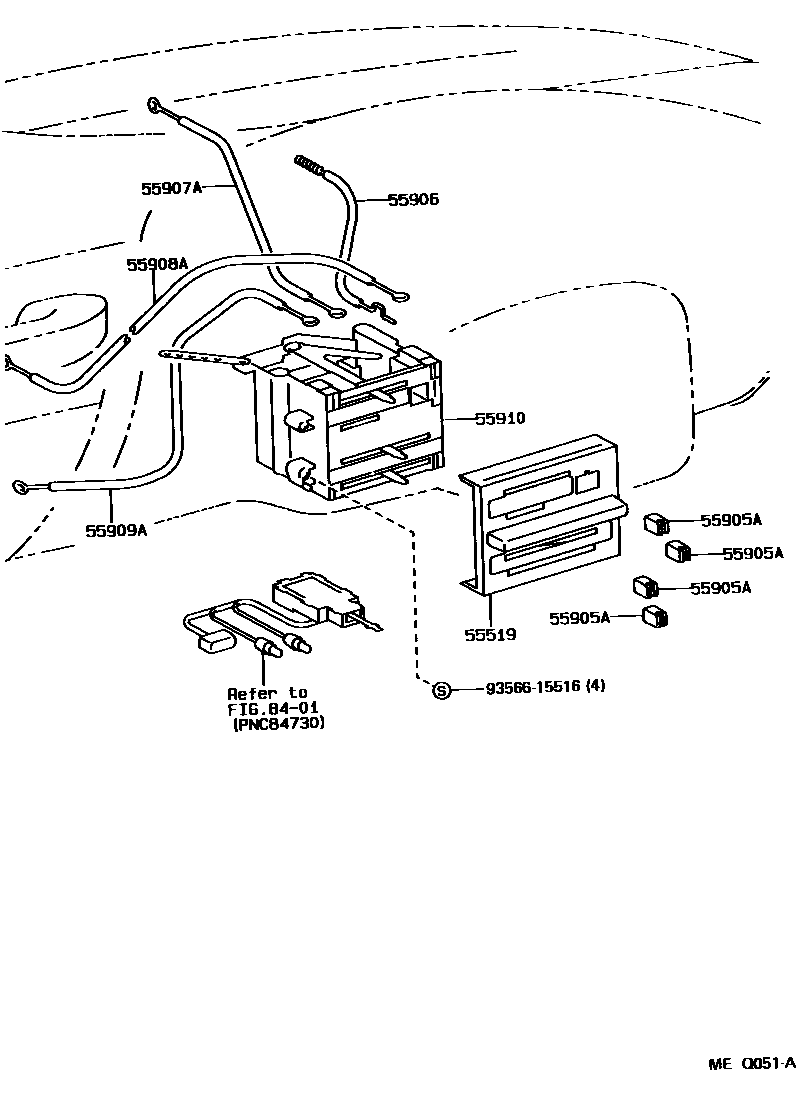

0001 1FRONT CONTROL(LEVER TYPE) 0002 1FRONT CONTROL(PUSH TYPE) 0003 1FRONT DUCT 0004 1REAR HEATER DUCT 0005 1REAR AIR CONDITIONER DUCT 0006 1AUTO AIR CONDITIONER SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-60010iFJ80; HDJ81..ATM; HDJ81..MTM199001-199108

main55519-60020iFJ80,HDJ81199001-199108

main55519-60030iHZJ81199001-199108

main55519-60031iHZJ81..STD199201-199305

main55519-60050iHZJ81..STD199108-199201

55905AKNOB, HEATER CONTROL

main55905-60020iHZJ81..GX199108-199208

main55905-89115×4iHZJ81199001-199108

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-60030iHZJ81199001-199005

main55906-60040iHZJ81199005-199108

main55906-60041iHZJ81..STD199201-199305

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60020iHZJ81199001-199108

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-60030iHZJ81199001-199108

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-60020iHZJ81199001-199005

main55909-60021iHZJ81199005-199108

main55909-60022iHZJ81..STD199201-199305

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60010iHZJ81199001-199005

main55910-60011iHZJ81199005-199108

main55910-60012iHZJ81..STD199201-199305

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356615516

main93566-15516

9 parts on this diagram · 6 diagrams in section
