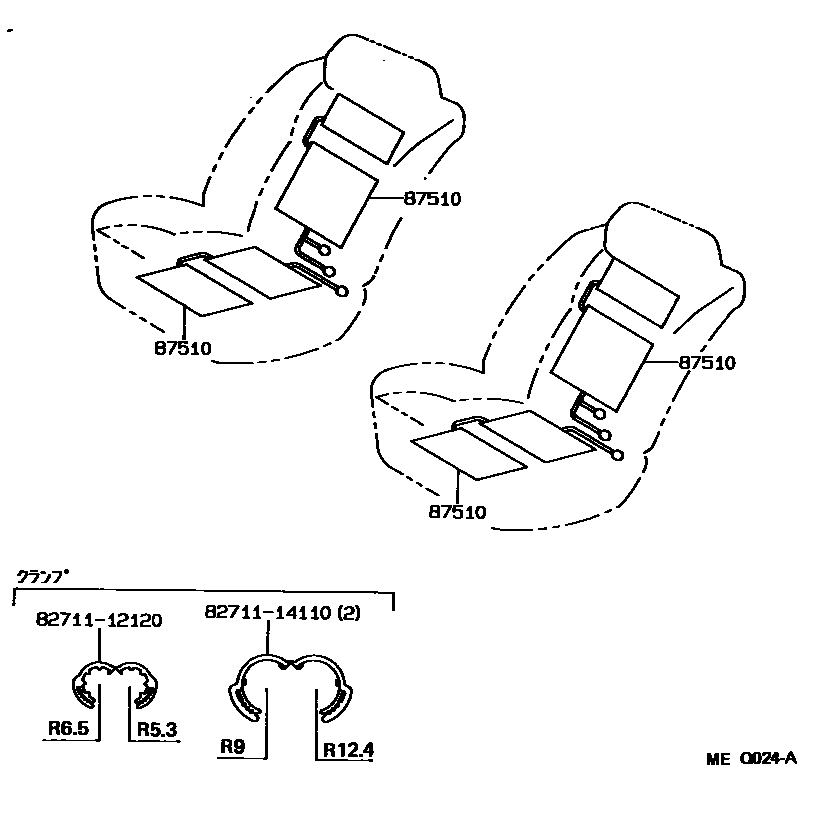

SEAT MOTOR & SEAT HEATER

0001 1 0002 1

87510HEATER ASSY, SEAT

main87510-60010×2iFJ80; FZJ80..VX; HDJ81199001-199308

SEAT BACK

main87510-60011×2iFZJ80..VX; HDJ81..VX; HDJ81..VXL..TD4; HZJ81..LUB199308-199801

SEAT BACK

main87510-60040×2iFZJ80..VXL; HDJ81..VXL199208-199308

SEAT CUSHION

main87510-60041×2iHDJ81..GX,VX; HDJ81..VXL..TD4; HZJ81..GX; HZJ81..LUB199308-199801

SEAT CUSHION

main87510-60050×2iHZJ81..GX199001-199308

SEAT BACK

main87510-60051×2iFZJ80..GX199501-199801

SEAT BACK

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

3 parts on this diagram · 2 diagrams in section
