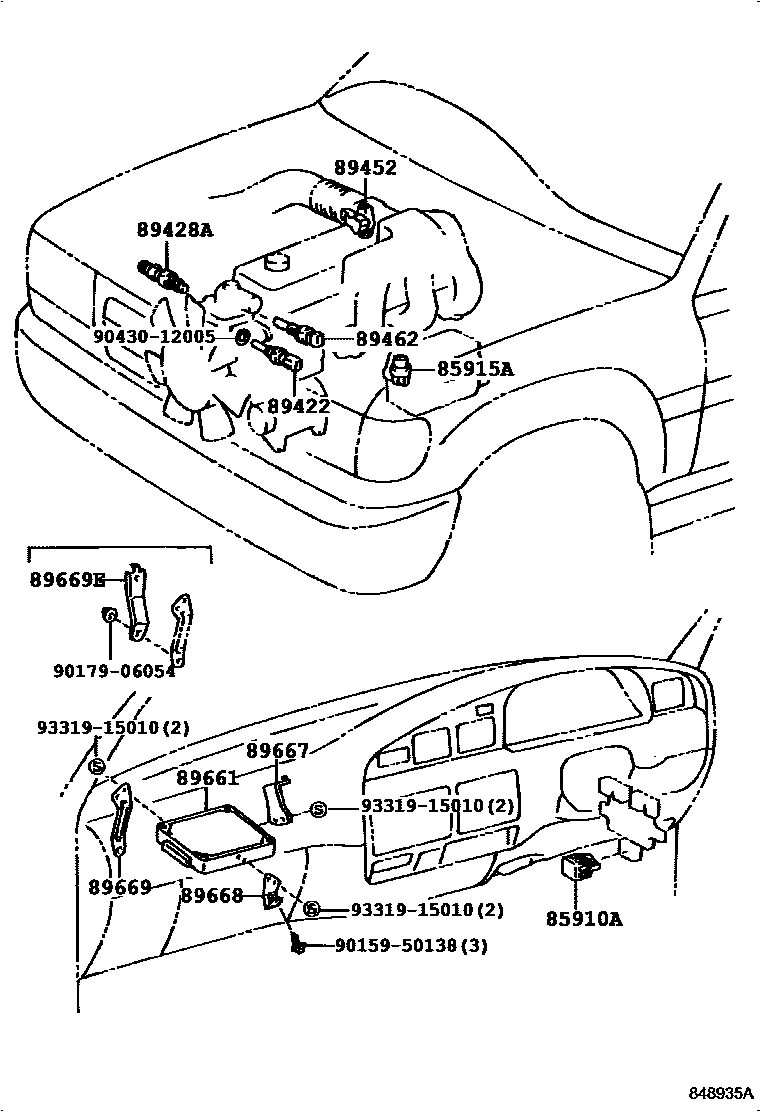

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iFJ80,FZJ80199001-199501

main90987-02004iFZJ80199501-199801

85915ARELAY, MAIN

main90987-02004iFJ80,FZJ80199001-199801

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iFJ80199001-199208

main89422-35010iFZJ80199208-199801

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-60060iFJ80199001-199208

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iFJ80199001-199208

main89452-22090iFZJ80199208-199801

89462SWITCH, START INJECTOR TIME

main89462-20040iFJ80199001-199208

89661COMPUTER, ENGINE CONTROL

main89661-60060iFJ80199001-199208

main89661-60160iFZJ80199208-199501

main89661-60290iFZJ80..ATM199501-199801

main89661-60300iFZJ80..MTM199501-199801

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60050iFJ80,FZJ80199001-199501

main89667-60100iFZJ80199501-199801

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60050iFJ80,FZJ80199001-199501

main89668-60080iFZJ80199501-199801

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-60040iFJ80,FZJ80199001-199501

89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89667-60060iFJ80199001-199108

9015950138

main90159-50138

9017906054

main90179-06054

9043012005

main90430-12005

9331915010

main93319-15010

15 parts on this diagram · 2 diagrams in section
