EPC Data

SEAT & SEAT TRACK

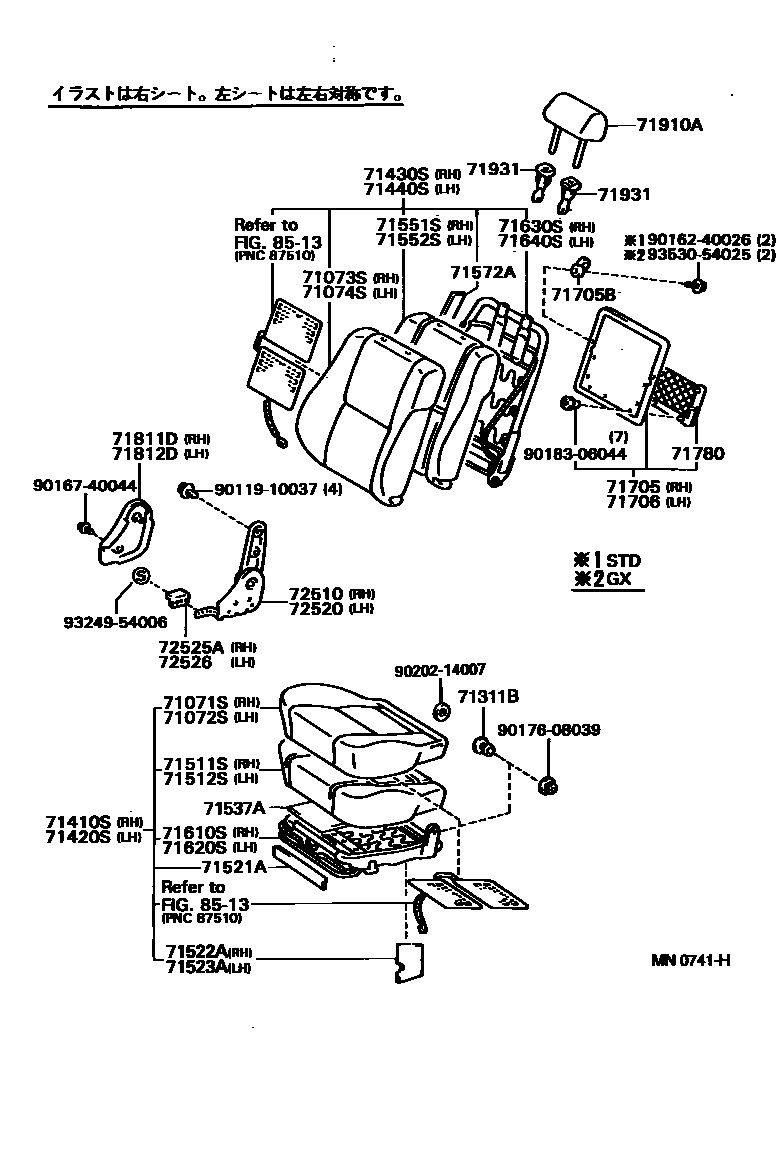

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-60050-03i199001-199208
BLUISH GRAY,TRIM1#
main71071-60050-06i199001-199208
SABLE,TRIM4#
main71071-60051-B0i199208-199305
BLUISH GRAY,TRIM1#
main71071-60051-E0i199208-199305
SABLE,TRIM4#
main71071-60052-B0i199305-199501
main71071-60052-E0i199305-199501
SABLE,TRIM4#
main71071-60110-03i199001-199208
BLUISH GRAY,TRIM1#
main71071-60120-03i199208-199501
main71071-60121-B0i199501-199801
main71071-60121-E0i199501-199801
main71071-60181-B1i199501-199704
BLUISH GRAY,TRIM1#
main71071-60181-E1i199501-199704
OAK,TRIM4#
main71071-60182-B1i199704-199801
main71071-60182-E1i199706-199801
main71071-60231-B0i199305-199501
BLUISH GRAY,TRIM1#
main71071-60231-E0i199305-199501
SABLE,TRIM4#
main71071-60232-B1i199501-199801
BLUISH GRAY,TRIM1#
main71071-60232-E1i199501-199801
OAK,TRIM4#
main71071-60250-03i199208-199305
BLUISH GRAY,TRIM1#
main71071-60250-06i199208-199305
SABLE,TRIM4#
main71071-60260-03i199001-199208
main71071-60260-06i199001-199208
main71071-60261-B0i199305-199501
main71071-60261-E0i199305-199501
SABLE,TRIM4#
main71071-60262-B1i199501-199801
main71071-60262-E1i199501-199801
OAK,TRIM4#
main71071-60550-B0i199208-199308
main71071-60551-B0i199308-199501
main71071-60552-B2i199501-199801
main71071-60620-B0i199310-199312
main71071-60630-B0i199409-199412
main71071-60790-A0i199605-199607
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-60050-03i199001-199208
BLUISH GRAY,TRIM1#
main71072-60050-06i199001-199208
SABLE,TRIM4#
main71072-60051-B0i199208-199305
BLUISH GRAY,TRIM1#
main71072-60051-E0i199208-199305
SABLE,TRIM4#
main71072-60052-B0i199305-199501
main71072-60052-E0i199305-199501
SABLE,TRIM4#
main71072-60081-B0i199305-199501
BLUISH GRAY,TRIM1#
main71072-60081-E0i199305-199501
SABLE,TRIM4#
main71072-60082-B1i199501-199801
BLUISH GRAY,TRIM1#
main71072-60082-E1i199501-199801
OAK,TRIM4#
main71072-60100-03i199001-199208
BLUISH GRAY,TRIM1#
main71072-60120-03i199208-199501
main71072-60121-B0i199501-199801
main71072-60121-E0i199501-199801
main71072-60171-B1i199501-199704
BLUISH GRAY,TRIM1#
main71072-60171-E1i199501-199704
OAK,TRIM4#
main71072-60172-B1i199704-199801
main71072-60172-E1i199706-199801
main71072-60210-03i199001-199208
BLUISH GRAY,TRIM1#
main71072-60210-06i199001-199208
SABLE,TRIM4#
main71072-60211-B0i199208-199305
BLUISH GRAY,TRIM1#
main71072-60211-E0i199208-199305
SABLE,TRIM4#
main71072-60220-03i199001-199208
main71072-60220-06i199001-199208
main71072-60221-B0i199208-199305
BLUISH GRAY,TRIM1#
main71072-60221-E0i199208-199305
SABLE,TRIM4#
main71072-60222-B1i199305-199501
main71072-60222-E0i199305-199501
SABLE,TRIM4#
main71072-60223-B2i199501-199801
BLUISH GRAY,TRIM1#
main71072-60223-E1i199501-199801
OAK,TRIM4#
main71072-60460-B0i199208-199308
main71072-60461-B0i199308-199501
main71072-60462-B2i199501-199801
main71072-60520-B0i199310-199312
main71072-60530-B0i199409-199412
main71072-60610-A0i199605-199607
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-60050-03i199001-199305
BLUISH GRAY,TRIM1#
main71073-60050-06i199208-199305
SABLE,TRIM4#
main71073-60051-B0i199305-199501
main71073-60051-E0i199305-199501
main71073-60052-B2i199501-199704
BLUISH GRAY,TRIM1#
main71073-60052-E2i199501-199704
OAK,TRIM4#
main71073-60053-B2i199704-199801
main71073-60053-E2i199706-199801
main71073-60080-03i199208-199305
BLUISH GRAY,TRIM1#
main71073-60080-06i199001-199305
SABLE,TRIM4#
main71073-60101-B0i199305-199501
BLUISH GRAY,TRIM1#
main71073-60101-E0i199305-199501
SABLE,TRIM4#
main71073-60102-B1i199501-199801
BLUISH GRAY,TRIM1#
main71073-60102-E1i199501-199801
OAK,TRIM4#
main71073-60120-03i199001-199305
BLUISH GRAY,TRIM1#
main71073-60120-E1i199501-199801
main71073-60180-03i199208-199305
BLUISH GRAY,TRIM1#
main71073-60180-06i199001-199208
main71073-60181-B0i199305-199501
main71073-60181-E0i199305-199501
SABLE,TRIM4#
main71073-60182-B1i199501-199801
main71073-60182-E1i199501-199801
main71073-60490-B0i199208-199308
main71073-60500-B0i199208-199308
main71073-60501-B0i199308-199501
main71073-60502-B2i199501-199801
main71073-60570-B0i199310-199312
main71073-60630-B0i199409-199412
main71073-60810-A0i199605-199607
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-60490-B0i199208-199308
main71073-60492-B2i199501-199801
main71074-60050-03i199001-199305
BLUISH GRAY,TRIM1#
main71074-60050-06i199208-199305
SABLE,TRIM4#
main71074-60051-B0i199305-199501
main71074-60051-E0i199305-199501
main71074-60052-B2i199501-199704
BLUISH GRAY,TRIM1#
main71074-60052-E2i199501-199704
OAK,TRIM4#
main71074-60053-B2i199704-199801
main71074-60053-E2i199706-199801
main71074-60081-B0i199305-199501
BLUISH GRAY,TRIM1#
main71074-60081-E0i199305-199501
SABLE,TRIM4#
main71074-60082-B1i199501-199801
BLUISH GRAY,TRIM1#
main71074-60082-E1i199501-199801
OAK,TRIM4#
main71074-60120-03i199208-199801
main71074-60120-E0i199501-199801
main71074-60140-03i199001-199305
BLUISH GRAY,TRIM1#
main71074-60140-06i199208-199305
SABLE,TRIM4#
main71074-60150-03i199001-199208
main71074-60150-06i199001-199208
main71074-60151-B0i199305-199501
main71074-60151-E0i199305-199501
SABLE,TRIM4#
main71074-60152-B1i199501-199801
main71074-60152-E1i199501-199801
OAK,TRIM4#
main71074-60490-B0i199308-199501
main71074-60510-B0i199310-199312
main71074-60570-B0i199409-199412
main71074-60680-A0i199605-199607
71311BBUSH (FOR FRONT SEAT HINGE PIN)
main90386-12027×2i199001-199201
main90386-12046×2i199201-199208
main90386-12051×2i199504-199801
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-60030-03i199001-199208
***,BLUISH GRAY,TRIM1#
main71410-60030-06i199001-199208
***,SABLE,TRIM4#
main71410-60031-B0i199208-199305
***,BLUISH GRAY,BLUISH GRAY,TRIM1#
main71410-60031-E0i199208-199305
***,SABLE,SABLE,TRIM4#
main71410-60040-03i199305-199501
main71410-60051-B0i199305-199501
***,BLUISH GRAY,TRIM1#
main71410-60051-E0i199305-199501
***,SABLE,TRIM4#
main71410-60052-B1i199501-199801
***,BLUISH GRAY,TRIM1#
main71410-60052-E1i199501-199801
***,OAK,TRIM4#
main71410-60090-03i199001-199208
***,BLUISH GRAY,TRIM1#
main71410-60231-B1i199501-199509
***,BLUISH GRAY,TRIM1#
main71410-60231-E1i199501-199509
***,OAK,TRIM4#
main71410-60232-B1i199509-199704
***,BLUISH GRAY,TRIM1#
main71410-60232-E2i199509-199704
***,OAK,TRIM4#
main71410-60233-E2i199704-199801
***,OAK,TRIM1#,4#
main71410-60242-B2i199501-199509
main71410-60242-E2i199501-199509
main71410-60243-B2i199509-199704
main71410-60243-E3i199509-199704
main71410-60244-B2i199704-199801
main71410-60244-E2i199706-199801
main71410-60260-03i199001-199208
***,BLUISH GRAY,TRIM1#
main71410-60260-06i199001-199208
***,SABLE,TRIM4#
main71410-60261-B0i199208-199305
***,BLUISH GRAY,TRIM1#
main71410-60261-E0i199208-199305
***,SABLE,TRIM4#
main71410-60262-B0i199305-199501
***,BLUISH GRAY,TRIM1#
main71410-60262-E0i199305-199501
***,SABLE,TRIM4#
main71410-60270-03i199001-199208
main71410-60270-06i199001-199208
main71410-60271-B0i199208-199305
main71410-60271-E0i199208-199305
main71410-60272-B0i199305-199501
main71410-60272-E0i199305-199501
main71410-60321-B0i199305-199308
main71410-60321-E0i199305-199308
main71410-60322-B0i199308-199501
main71410-60322-E0i199308-199501
main71410-60323-B1i199501-199801
main71410-60323-E1i199501-199801
main71410-60330-03i199001-199208
main71410-60330-06i199001-199208
main71410-60331-B0i199208-199305
main71410-60331-E0i199208-199305
main71410-60340-03i199001-199208
main71410-60340-06i199001-199208
main71410-60341-B0i199208-199305
***,BLUISH GRAY,BLUISH GRAY,TRIM1#
main71410-60341-E0i199208-199305
***,SABLE,SABLE,TRIM4#
main71410-60342-B1i199305-199501
***,BLUISH GRAY,TRIM1#
main71410-60342-E0i199305-199501
***,SABLE,TRIM4#
main71410-60343-B2i199501-199801
***,BLUISH GRAY,TRIM1#
main71410-60343-E1i199501-199801
***,OAK,TRIM4#
main71410-60350-03i199001-199208
main71410-60350-06i199001-199208
main71410-60351-B0i199208-199305
main71410-60351-E0i199208-199305
main71410-60352-B1i199305-199501
main71410-60352-E0i199305-199501
main71410-60353-B2i199501-199801
main71410-60353-E1i199501-199801
main71410-6A030-B0i199208-199308
main71410-6A031-B0i199308-199501
main71410-6A032-B2i199501-199801
main71410-6A050-B0i199208-199305
main71410-6A051-B0i199308-199501
main71410-6A052-B0i199305-199308
main71410-6A053-B2i199501-199801
main71410-6A240-B0i199501-199509
main71410-6A240-E0i199501-199509
main71410-6A241-B0i199509-199801
main71410-6A241-E0i199509-199801
main71410-6A630-A0i199605-199607
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-60030-03i199001-199208
***,BLUISH GRAY,TRIM1#
main71420-60030-06i199001-199208
***,SABLE,TRIM4#
main71420-60031-B0i199208-199305
***,BLUISH GRAY,TRIM1#
main71420-60031-E0i199208-199305
***,SABLE,TRIM4#
main71420-60040-03i199001-199208
***,BLUISH GRAY,TRIM1#
main71420-60060-03i199305-199501
***,BLUISH GRAY,TRIM1#
main71420-60060-06i199305-199501
***,SABLE,TRIM4#
main71420-60061-B0i199501-199509
***,BLUISH GRAY,TRIM1#
main71420-60061-E0i199501-199509
***,OAK,TRIM4#
main71420-60062-B0i199509-199801
***,BLUISH GRAY,TRIM1#
main71420-60062-E0i199509-199801
***,OAK,TRIM4#
main71420-60220-03i199305-199501
main71420-60241-B1i199501-199509
***,BLUISH GRAY,TRIM1#
main71420-60241-E1i199501-199509
***,OAK,TRIM4#
main71420-60242-B1i199509-199704
***,BLUISH GRAY,TRIM1#
main71420-60242-E1i199509-199704
***,OAK,TRIM4#
main71420-60243-B1i199704-199801
***,BLUISH GRAY,TRIM1#
main71420-60243-E1i199706-199801
***,OAK,TRIM4#
main71420-60252-B2i199501-199509
main71420-60252-E2i199501-199509
main71420-60253-B2i199509-199704
main71420-60253-E2i199509-199704
main71420-60254-B2i199704-199801
main71420-60254-E2i199706-199801
main71420-60270-03i199001-199208
***,BLUISH GRAY,TRIM1#
main71420-60270-06i199001-199208
***,SABLE,TRIM4#
main71420-60271-B0i199208-199305
***,BLUISH GRAY,TRIM1#
main71420-60271-E0i199208-199305
***,SABLE,TRIM4#
main71420-60272-B0i199305-199501
***,BLUISH GRAY,TRIM1#
main71420-60272-E0i199305-199501
***,SABLE,TRIM4#
main71420-60280-03i199001-199208
main71420-60280-06i199001-199208
main71420-60281-B0i199208-199305
main71420-60281-E0i199208-199305
main71420-60282-B0i199305-199501
main71420-60282-E0i199305-199501
main71420-60290-03i199305-199308
main71420-60290-06i199305-199308
main71420-60291-B0i199308-199501
main71420-60291-E0i199308-199501
main71420-60292-B1i199501-199509
main71420-60292-E1i199501-199509
main71420-60293-B1i199509-199801
main71420-60293-E1i199509-199801
main71420-60300-03i199001-199208
main71420-60300-06i199001-199208
main71420-60301-B0i199208-199305
main71420-60301-E0i199208-199305
main71420-60310-03i199001-199208
main71420-60310-06i199001-199208
main71420-60311-B0i199208-199305
***,BLUISH GRAY,TRIM1#
main71420-60311-E0i199208-199305
***,SABLE,TRIM4#
main71420-60312-B1i199305-199501
***,BLUISH GRAY,TRIM1#
main71420-60312-E0i199305-199501
***,SABLE,TRIM4#
main71420-60313-B2i199501-199509
***,BLUISH GRAY,TRIM1#
main71420-60313-E1i199501-199509
***,OAK,TRIM4#
main71420-60314-B2i199509-199801
***,BLUISH GRAY,TRIM1#
main71420-60314-E1i199509-199801
***,OAK,TRIM4#
main71420-60320-03i199001-199208
main71420-60320-06i199001-199208
main71420-60321-B0i199208-199305
main71420-60321-E0i199208-199305
main71420-60322-B1i199305-199501
main71420-60322-E0i199305-199501
main71420-60323-B2i199501-199509
main71420-60323-E1i199501-199509
main71420-60324-B2i199509-199801
main71420-60324-E1i199509-199801
main71420-60830-B0i199208-199308
main71420-60831-B0i199308-199501
main71420-60832-B2i199501-199801
main71420-60850-B0i199208-199305
main71420-60851-B0i199308-199501
main71420-60852-B0i199305-199308
main71420-60853-B2i199501-199801
main71420-6A160-B0i199501-199509
main71420-6A160-E0i199501-199509
main71420-6A161-B0i199509-199801
main71420-6A161-E0i199509-199801
main71420-6A290-A0i199605-199607
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-60050-03i199001-199305
main71430-60050-06i199001-199305
main71430-60060-03i199305-199501
***,BLUISH GRAY,TRIM1#
main71430-60060-06i199305-199501
***,SABLE,TRIM4#
main71430-60061-B0i199501-199801
***,BLUISH GRAY,TRIM1#
main71430-60061-E0i199501-199801
***,OAK,TRIM4#
main71430-60080-03i199001-199006
***,BLUISH GRAY,TRIM1#
main71430-60080-06i199001-199006
***,SABLE,TRIM4#
main71430-60081-03i199006-199305
***,BLUISH GRAY,TRIM1#
main71430-60081-06i199006-199305
***,SABLE,TRIM4#
main71430-60082-B0i199305-199501
***,BLUISH GRAY,TRIM1#
main71430-60082-E0i199305-199501
***,SABLE,TRIM4#
main71430-60083-B2i199501-199704
***,BLUISH GRAY,TRIM1#
main71430-60083-E2i199501-199704
***,OAK,TRIM4#
main71430-60084-B2i199704-199801
***,BLUISH GRAY,TRIM1#
main71430-60084-E2i199706-199801
***,OAK,TRIM4#
main71430-60100-03i199001-199006
main71430-60100-06i199001-199006
main71430-60101-03i199006-199305
main71430-60101-06i199006-199305
main71430-60102-B0i199305-199501
main71430-60102-E0i199305-199501
main71430-60103-B2i199501-199704
main71430-60103-E2i199501-199704
main71430-60104-B2i199704-199801
main71430-60104-E2i199706-199801
main71430-60110-03i199001-199305
***,BLUISH GRAY,TRIM1#
main71430-60110-E1i199501-199801
main71430-60210-03i199001-199305
***,BLUISH GRAY,TRIM1#
main71430-60210-06i199001-199305
***,SABLE,TRIM4#
main71430-60250-03i199305-199308
main71430-60250-06i199305-199308
main71430-60251-B0i199308-199501
main71430-60251-E0i199308-199501
main71430-60252-B1i199501-199801
main71430-60252-E1i199501-199801
main71430-60260-03i199001-199208
main71430-60260-06i199208-199305
***,SABLE,TRIM4#
main71430-60261-B0i199305-199501
***,BLUISH GRAY,TRIM1#
main71430-60261-E0i199305-199501
***,SABLE,TRIM4#
main71430-60262-B1i199501-199801
***,BLUISH GRAY,TRIM1#
main71430-60262-E1i199501-199801
***,OAK,TRIM4#
main71430-60270-03i199001-199208
main71430-60270-06i199001-199208
main71430-60271-B0i199305-199501
main71430-60271-E0i199305-199501
main71430-60272-B1i199501-199801
main71430-60272-E1i199501-199801
main71430-60652-B2i199608-199801
main71430-60660-B0i199208-199308
main71430-60661-B0i199308-199501
main71430-60662-B2i199501-199608
main71430-60680-B0i199208-199305
main71430-60681-B0i199308-199501
main71430-60682-B0i199305-199308
main71430-60683-B2i199501-199801
main71430-6A340-A0i199605-199607
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-60650-B0i199305-199308
main71430-60652-B2i199501-199801
main71430-60662-B2i199608-199801
main71430-60670-B0i199208-199305
main71430-60672-B0i199305-199308
main71430-60673-B2i199501-199801
main71440-60040-03i199001-199305
main71440-60040-06i199001-199305
main71440-60060-03i199305-199501
***,BLUISH GRAY,TRIM1#
main71440-60060-06i199305-199501
***,SABLE,TRIM4#
main71440-60061-B0i199501-199801
***,BLUISH GRAY,TRIM1#
main71440-60061-E0i199501-199801
***,OAK,TRIM4#
main71440-60070-03i199001-199006
***,BLUISH GRAY,TRIM1#
main71440-60070-06i199001-199006
***,SABLE,TRIM4#
main71440-60071-03i199006-199305
***,BLUISH GRAY,TRIM1#
main71440-60071-06i199006-199305
***,SABLE,TRIM4#
main71440-60072-B0i199305-199501
***,BLUISH GRAY,TRIM1#
main71440-60072-E0i199305-199501
***,SABLE,TRIM4#
main71440-60073-B2i199501-199704
***,BLUISH GRAY,TRIM1#
main71440-60073-E2i199501-199704
***,OAK,TRIM4#
main71440-60074-B2i199704-199801
***,BLUISH GRAY,TRIM1#
main71440-60074-E2i199706-199801
***,OAK,TRIM4#
main71440-60090-03i199001-199006
main71440-60090-06i199001-199006
main71440-60091-03i199006-199305
main71440-60091-06i199006-199305
main71440-60092-B0i199305-199501
main71440-60092-E0i199305-199501
main71440-60093-B2i199501-199704
main71440-60093-E2i199501-199704
main71440-60094-B2i199704-199801
main71440-60094-E2i199706-199801
main71440-60100-03i199001-199305
***,BLUISH GRAY,TRIM1#
main71440-60100-E0i199501-199801
main71440-60200-03i199001-199305
***,BLUISH GRAY,TRIM1#
main71440-60200-06i199001-199305
***,SABLE,TRIM4#
main71440-60210-03i199305-199308
main71440-60210-06i199305-199308
main71440-60211-B0i199308-199501
main71440-60211-E0i199308-199501
main71440-60212-B1i199501-199801
main71440-60212-E1i199501-199801
main71440-60220-03i199001-199208
main71440-60220-06i199001-199208
main71440-60221-B0i199305-199501
***,BLUISH GRAY,TRIM1#
main71440-60221-E0i199305-199501
***,SABLE,TRIM4#
main71440-60222-B1i199501-199801
***,BLUISH GRAY,TRIM1#
main71440-60222-E1i199501-199801
***,OAK,TRIM4#
main71440-60230-03i199001-199208
main71440-60230-06i199208-199305
main71440-60231-B0i199305-199501
main71440-60231-E0i199305-199501
main71440-60232-B1i199501-199801
main71440-60232-E1i199501-199801
main71440-60690-B0i199308-199501
main71440-60700-B0i199308-199501
main71440-60860-A0i199605-199607
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-60040i199001-199801
main71511-60060i199001-199801
main71511-60130i199208-199305
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-60020i199001-199801
main71512-60040i199305-199801
main71512-60110i199305-199501
71521APAD,FRONT SEAT CUSHION SILENCER
main71521-60030×2i199211-199801
71522APAD, FRONT SEAT CUSHION SILENCER, B
main71522-60030i199403-199801
71523APAD, FRONT SEAT CUSHION SILENCER, C
main71522-60030i199502-199801
main71523-60030i199403-199502
71537APROTECTOR, FRONT SEAT CUSHION
main71537-60010i199505-199801
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71506-60040i199605-199607
main71551-60020i199001-199801
main71551-60040i199208-199801
main71551-60140i199208-199801
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-60140i199305-199501
main71551-60160i199605-199607
main71552-60020i199001-199801
main71552-60040i199305-199801
71572APAD, FRONT SEATBACK SILENCER, B
main71572-60010×4i199211-199801
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-60010i199001-199208
main71610-60020i199001-199208
main71610-60021i199305-199801
main71610-60040i199208-199501
main71610-60150i199501-199801
main71610-60190i199501-199509
main71610-60191i199509-199801
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-60010i199001-199208
main71620-60040i199305-199501
main71620-60150i199305-199501
main71620-60190i199501-199509
main71620-60191i199509-199801
main71620-60210i199501-199509
main71620-60211i199509-199801
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-60010i199001-199305
main71630-60040i199001-199006
main71630-60041i199305-199501
main71630-60060i199001-199801
main71630-60080i199208-199501
main71630-60090i199208-199305
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-60080i199305-199501
main71640-60010i199305-199801
main71640-60030i199001-199006
main71640-60031i199305-199501
main71640-60060i199001-199801
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-60020-03i199001-199006
BLUISH GRAY,TRIM1#
main71705-60020-06i199001-199006
SABLE,TRIM4#
main71705-60021-03i199006-199305
BLUISH GRAY,TRIM1#
main71705-60021-06i199208-199305
SABLE,TRIM4#
main71705-60022-B0i199305-199801
BLUISH GRAY,TRIM1#
main71705-60022-E0i199305-199501
SABLE,TRIM4#
main71705-60022-E1i199501-199801
OAK,TRIM4#
main71705-60050-03i199208-199305
BLUISH GRAY,TRIM1#
main71705-60050-06i199004-199305
SABLE,TRIM4#
main71705-60051-B0i199305-199501
BLUISH GRAY,TRIM1#
main71705-60051-E0i199305-199501
SABLE,TRIM4#
main71705-60052-B1i199501-199801
main71705-60052-E1i199501-199801
OAK,TRIM4#
main71705-60060-03i199001-199004
BLUISH GRAY,TRIM1#
main71705-60060-06i199001-199004
SABLE,TRIM4#
main71705-60070-03i199001-199208
main71705-60070-06i199001-199208
main71705-60071-B0i199305-199501
main71705-60071-E0i199305-199501
SABLE,TRIM4#
main71705-60120-B0i199208-199305
main71705-60121-B0i199305-199801
main71705-60140-B0i199404-199407
main71705-60160-B0i199409-199412
main71705-60170-A0i199605-199607
71705BCAP(FOR FRONT SEATBACK BOARD)
main71788-22010-40×4i199001-199801
BLUISH GRAY,TRIM1#
main71788-22010-46×4i199001-199501
SABLE,TRIM4#
main71788-22010-E4×4i199501-199801
OAK,TRIM4#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-60020-03i199001-199006
BLUISH GRAY,TRIM1#
main71705-60020-06i199001-199006
SABLE,TRIM4#
main71705-60021-03i199006-199305
BLUISH GRAY,TRIM1#
main71705-60021-06i199006-199305
SABLE,TRIM4#
main71705-60022-B0i199305-199801
BLUISH GRAY,TRIM1#
main71705-60022-E0i199305-199501
SABLE,TRIM4#
main71705-60022-E1i199501-199801
OAK,TRIM4#
main71705-60120-B0i199208-199305
main71705-60121-B0i199305-199801
main71705-60170-A0i199605-199607
main71706-60010-03i199208-199305
BLUISH GRAY,TRIM1#
main71706-60010-06i199004-199305
SABLE,TRIM4#
main71706-60011-B0i199305-199501
BLUISH GRAY,TRIM1#
main71706-60011-E0i199305-199501
SABLE,TRIM4#
main71706-60012-B1i199501-199801
main71706-60012-E1i199501-199801
OAK,TRIM4#
main71706-60020-03i199001-199004
BLUISH GRAY,TRIM1#
main71706-60020-06i199001-199004
SABLE,TRIM4#
main71706-60030-03i199001-199208
main71706-60030-06i199001-199208
main71706-60031-B0i199305-199501
main71706-60031-E0i199305-199501
SABLE,TRIM4#
main71706-60050-B0i199404-199407
main71706-60060-B0i199409-199412
71780POCKET ASSY, SEATBACK BOARD
main71780-36010-B0×2i199501-199801
BLUISH GRAY,TRIM1#
main71780-36010-C0×2i199305-199501
BLACK,TRIM1#
main71780-36010-E1×2i199305-199501
SABLE,TRIM4#
main71780-36010-E2×2i199501-199801
OAK,TRIM4#
main71780-60010-03×2i199002-199305
BLACK,TRIM1#
main71780-60010-06×2i199002-199305
SABLE,TRIM4#
main71780-90K01-03×2i199001-199002
BLACK,TRIM1#
main71780-90K01-16×2i199001-199002
SABLE,TRIM4#
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-20160-06i199208-199501
SABLE,TRIM4#
main71811-20160-13i199208-199801
BLUISH GRAY,TRIM1#
main71811-20160-E1i199501-199801
main71811-60030-B0i199501-199801
main71811-60030-E0i199208-199501
main71811-60030-E1i199501-199801
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-20110-06i199001-199501
SABLE,TRIM4#
main71812-20110-13i199001-199801
BLUISH GRAY,TRIM1#
main71812-20110-E2i199501-199801
main71812-60030-B0i199501-199801
main71812-60030-E0i199208-199501
main71812-60030-E1i199501-199801
71910AHEADREST ASSY, FRONT SEAT
main71910-60010-03×2i199208-199501
BLUISH GRAY,TRIM1#
main71910-60010-06×2i199108-199501
SABLE,TRIM4#
main71910-60011-B0×2i199501-199801
BLUISH GRAY,TRIM1#
main71910-60011-E0×2i199501-199801
OAK,TRIM4#
main71910-60040-03×2i199208-199801
main71910-60040-E3×2i199501-199801
main71910-60051-B1×2i199501-199704
BLUISH GRAY,TRIM1#
main71910-60051-E1×2i199501-199704
OAK,TRIM4#
main71910-60052-B1×2i199704-199801
main71910-60052-E1×2i199706-199801
main71910-60090-03×2i199208-199501
BLUISH GRAY,TRIM1#
main71910-60090-06×2i199001-199501
SABLE,TRIM4#
main71910-60100-03×2i199001-199108
BLUISH GRAY,TRIM1#
main71910-60100-06×2i199001-199108
SABLE,TRIM4#
main71910-60130-03×2i199208-199501
BLUISH GRAY,TRIM1#
main71910-60130-06×2i199001-199208
main71910-60150-B0×2i199208-199501
main71910-60151-B0×2i199501-199801
main71910-60230-B0×2i199404-199407
main71910-60240-A0×2i199605-199607
main71910-60360-B0×2i199409-199412
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-06×2i199001-199210
main71930-10070-13×2i199208-199512
main71930-10070-B7×2i199512-199801
main71930-10070-E1×2i199501-199801
main71930-10070-E7×2i199305-199501
main71931-10020-06×2i199208-199501
main71931-10020-13×2i199208-199508
main71931-10020-E1×2i199501-199508
main71931-10020-E7×2i199305-199501
main71931-28030-B5×2i199508-199801
main71931-28030-E6×2i199508-199801
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72510-60040i199001-199801
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
main72520-60010i199001-199801
main72520-60040i199001-199801
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-12090-16i199208-199501
SABLE,TRIM4#
main72525-12090-43i199001-199409
BLUISH GRAY,TRIM1#
main72525-12090-B2i199501-199801
BLUISH GRAY,TRIM1#
main72525-12090-E1i199501-199801
OAK,TRIM4#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-12030-16i199001-199501
SABLE,TRIM4#
main72526-12030-43i199208-199501
BLUISH GRAY,TRIM1#
main72526-12030-B0i199501-199801
BLUISH GRAY,TRIM1#
main72526-12030-E1i199501-199801
OAK,TRIM4#
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9011910037
main90119-10037
9016240026
main90162-40026
9016740044
main90167-40044
9017608039
main90176-08039
9018306044
main90183-06044
9020214007
main90202-14007
9324954006
main93249-54006
9353054025
main93530-54025

43 parts on this diagram · 8 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
