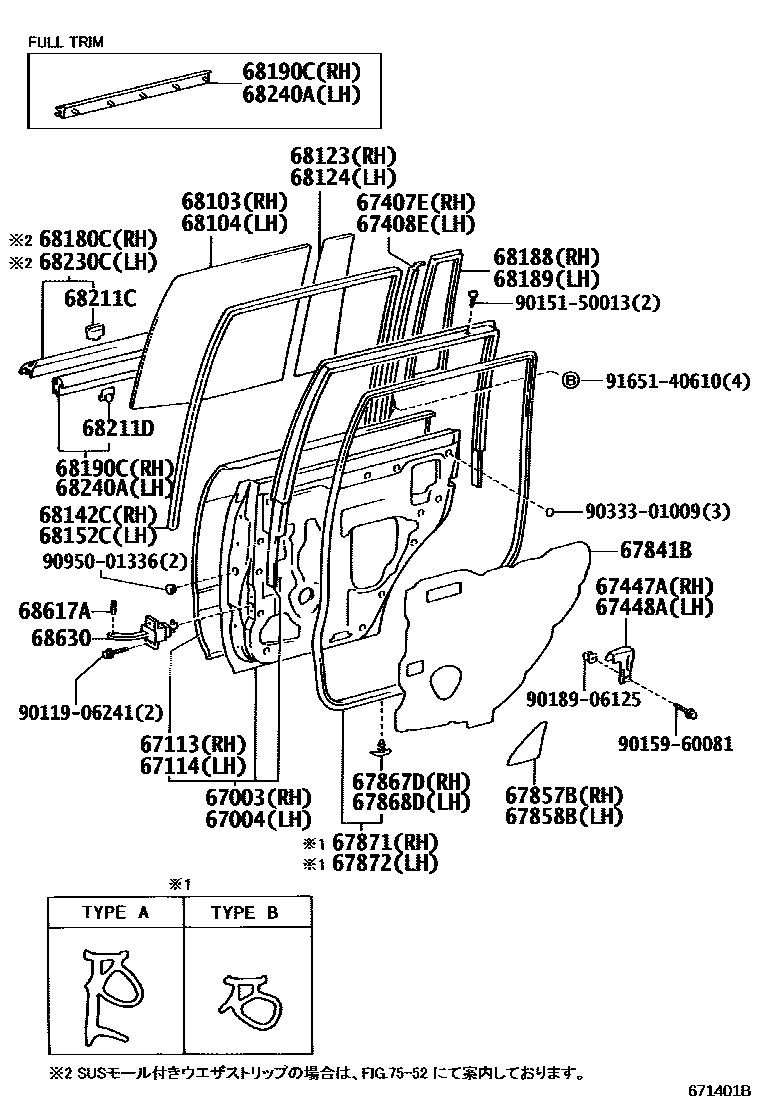

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60011iFZJ80,HZJ81..GX,STD199208-199501

sub67003-60092

main67003-60021iFZJ80..VX199208-199501

sub67003-60102

main67003-60031iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

sub67003-60111

main67003-60090iHZJ81199001-199208

main67003-60092iHZJ81199501-199801

main67003-60100iFJ80,HDJ81199001-199208

main67003-60110iFJ80,HDJ81199001-199208

main67003-60112iFZJ80,HDJ81199501-199801

main67003-60112iHDJ81;FZJ80,HZJ81..LUB199501-199801

main67003-60130iHDJ81..VXL199605-199607

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60011iFZJ80,HZJ81..GX,STD199208-199501

sub67004-60092

main67004-60021iFZJ80..VX199208-199501

sub67004-60102

main67004-60031iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

sub67004-60111

main67004-60090iHZJ81199001-199208

main67004-60092iHZJ81199501-199801

main67004-60100iFJ80,HDJ81199001-199208

main67004-60110iFJ80,HDJ81199001-199208

main67004-60112iFZJ80..GX199501-199801

main67004-60112iHDJ81;FZJ80,HZJ81..LUB199501-199801

main67004-60130iHDJ81..VXL199605-199607

67113PANEL, REAR DOOR, OUTER RH

main67113-60090iHZJ81199001-199801

main67113-60100iFZJ80..VX199001-199501

main67113-60110iFJ80,FZJ80,HDJ81,HZJ81..VX,VXL199001-199501

main67113-60111iFZJ80,HDJ81199501-199801

67114PANEL, REAR DOOR, OUTER LH

main67114-60090iFZJ80,HZJ81..GX199001-199801

main67114-60100iFZJ80..VX199001-199501

main67114-60110iFJ80,FZJ80,HDJ81,HZJ81..VX,VXL199001-199501

main67114-60111iFZJ80,HDJ81199501-199801

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

67447APLATE, REAR DOOR INSIDE PANEL, RH

main67447-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

67448APLATE, REAR DOOR INSIDE PANEL, LH

main67448-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-60010iHZJ81199001-199305

sub67841-60040

main67841-60020iHZJ81..STD199001-199407

sub67841-60040

main67841-60020iFJ80,FZJ80,HDJ81,HZJ81..VX,VXL199001-199407

sub67841-60040

main67841-60040iHZJ81..GX199208-199305

main67841-60040iFZJ80,HZJ81..GX199305-199801

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-60010iHZJ81..STD199001-199305

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-60010iHZJ81..STD199001-199305

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-12050iFZJ80,HDJ81,HZJ81199501-199801

main67868-22020iFJ80,FZJ80,HDJ81,HZJ81199001-199501

sub67867-12150

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iFZJ80,HDJ81,HZJ81199501-199801

main67868-22020iFJ80,FZJ80,HDJ81,HZJ81199001-199501

sub67867-12150

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60020iFJ80,HDJ81,HZJ81199001-199101

sub67871-60040

main67871-60040iFJ80,HDJ81,HZJ81199101-199111

sub67871-60041

main67871-60041iFJ80,FZJ80,HDJ81,HZJ81199111-199601

TYPE A

main67871-60043iFZJ80,HDJ81,HZJ81199601-199801

TYPE B

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60020iFJ80,HDJ81,HZJ81199001-199101

sub67872-60040

main67872-60040iFJ80,HDJ81,HZJ81199101-199111

sub67872-60041

main67872-60041iFJ80,FZJ80,HDJ81,HZJ81199111-199601

TYPE A

main67872-60043iFZJ80,HDJ81,HZJ81199601-199801

TYPE B

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-60010iHZJ81..STD199001-199305

sub68113-60130

main68113-60020iFZJ80,HZJ81..GX199305-199608

sub68113-60130

main68113-60030iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

main68113-60130iFZJ80,HDJ81,HZJ81..GX199608-199801

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-60010iHZJ81..STD199001-199305

sub68114-60130

main68114-60020iFZJ80,HZJ81..GX199305-199608

sub68114-60130

main68114-60030iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

main68114-60130iFZJ80,HDJ81,HZJ81..GX199608-199801

68123GLASS, REAR DOOR WINDOW, RH

main68123-60010iHZJ81..STD199001-199305

sub68123-60140

main68123-60020iFZJ80,HZJ81..GX199305-199608

sub68123-60140

main68123-60030iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

main68123-60140iFZJ80,HDJ81,HZJ81..GX199608-199801

68124GLASS, REAR DOOR WINDOW, LH

main68124-60010iHZJ81..STD199001-199305

sub68124-60140

main68124-60020iFZJ80,HZJ81..GX199305-199608

sub68124-60140

main68124-60030iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

main68124-60140iFZJ80,HDJ81,HZJ81..GX199608-199801

68142CRUN, REAR DOOR GLASS, RH

main68142-60010iFJ80,HDJ81,HZJ81199001-199208

sub68142-60011

main68142-60011iFZJ80,HDJ81,HZJ81199208-199801

68152CRUN, REAR DOOR GLASS, LH

main68152-60010iFJ80,HDJ81,HZJ81199001-199208

sub68152-60011

main68152-60011iFZJ80,HDJ81,HZJ81199208-199801

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-60010iHZJ81..STD199001-199801

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH

main68190-60010iFJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL199001-199609

sub68190-60011

sub68240-60050

main68190-60011iFZJ80,HDJ81,HZJ81199609-199801

main68190-60020iHZJ81..MTM199305-199801

main68190-60020iHZJ81..STD199001-199305

68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)

main68211-12160iHZJ81..STD199001-199801

68211DCLIP, DOOR GLASS WEATHERSTRIP

main68211-10030iHZJ81..STD199001-199801

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-60010iHZJ81..STD199001-199801

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68190-60010iFJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL199001-199609

sub68190-60011

sub68240-60050

main68240-60010iHZJ81..STD199001-199305

main68240-60010iHZJ81..MTM199305-199801

main68240-60050iFZJ80,HDJ81,HZJ81199609-199801

68617APIN, REAR DOOR CHECK

main68617-20011iFJ80,HDJ81,HZJ81199001-199801

68630CHECK ASSY, REAR DOOR

main68630-60010iFJ80,HDJ81,HZJ81199001-199201

sub68630-60030

main68630-60030iFJ80,FZJ80,HDJ81,HZJ81199201-199801

9011906241

main90119-06241

9015150013

main90151-50013

9015960081

main90159-60081

9018906125

main90189-06125

9033301009

main90333-01009

9095001336

main90950-01336

9165140610

main91651-40610

38 parts on this diagram · 3 diagrams in section
