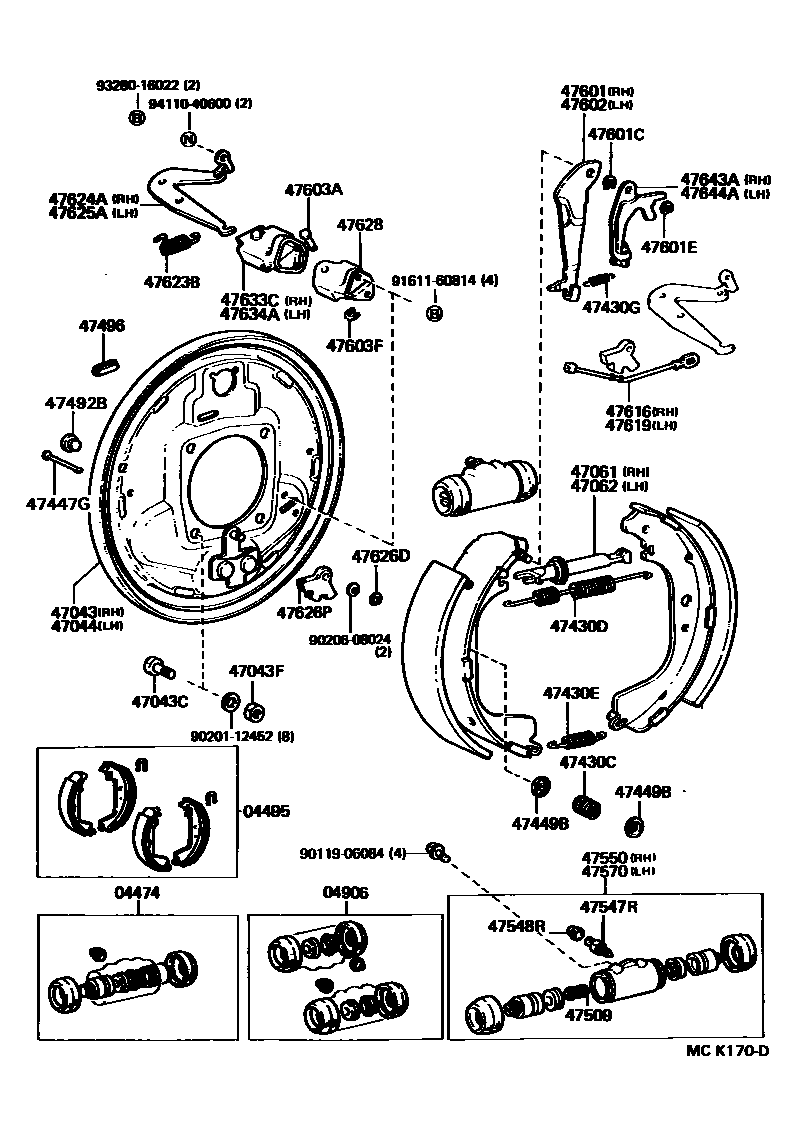

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04495SHOE KIT, REAR BRAKE
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47061STRUT SET, PARKING BRAKE SHOE, RH
47062STRUT SET, PARKING BRAKE SHOE, LH
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601CWASHER, C(FOR REAR BRAKE)
47601ERING, E(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47603APIN, W/HOLE(FOR REAR BRAKE)
47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)
47616WIRE, PARKING BRAKE, RH
47619WIRE, PARKING BRAKE, LH
47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
47624ACRANK, PARKING BRAKE BELL, RH
47625ACRANK, PARKING BRAKE BELL, LH
47626DRING, E(FOR PARKING BRAKE SEGMENTAL PULLEY)
47626PPULLEY, PARKING BRAKE SEGMENTAL
47628BRACKET, REAR BRAKE BELLCRANK
47633CBOOT, REAR BRAKE BELLCRANK, RH
47634ABOOT, REAR BRAKE BELLCRANK, LH
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011906084
main90119-06084
9020112452
main90201-12452
9020608024
main90206-08024
9161160814
main91611-60814
9328016022
main93280-16022
9411040600
main94110-40600
46 parts on this diagram · 1 diagram in section
