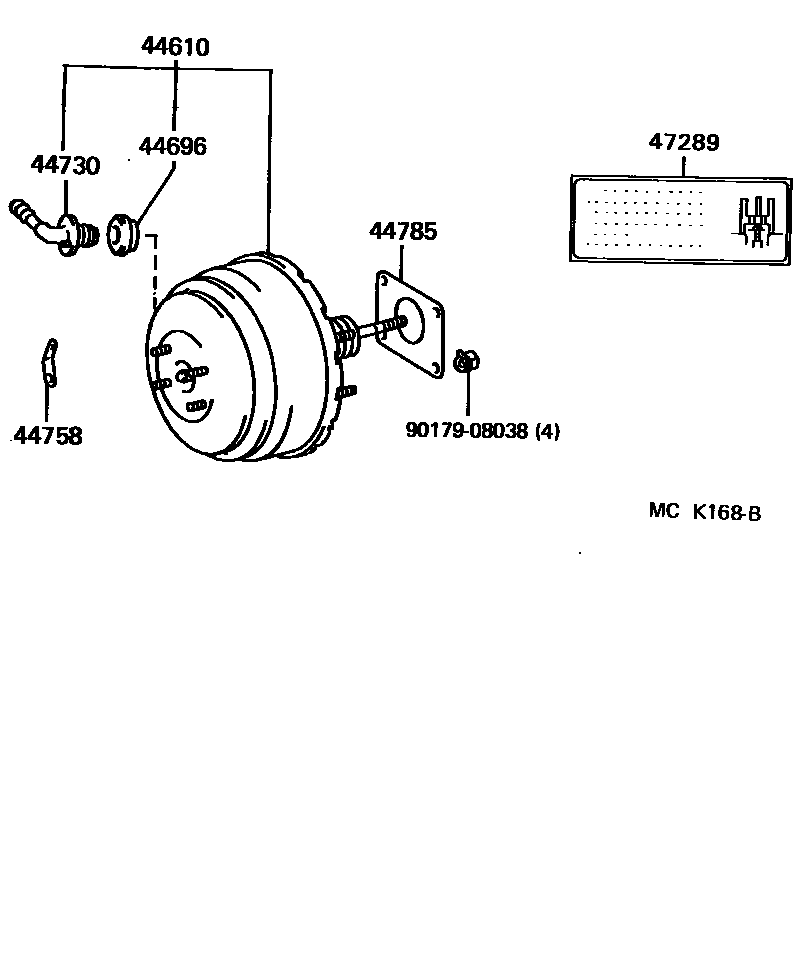

Toyota LAND CRUISER VAN — BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44785GASKET, BRAKE BOOSTER
47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
9017908038
7 parts on this diagram · 3 diagrams in section
BRAKE BOOSTER & VACUUM TUBE for Toyota LAND CRUISER VAN
This section contains 19 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota LAND CRUISER VAN. Key components include: BOOSTER ASSY, BRAKE, GROMMET, CHECK VALVE, RESERVOIR SUB-ASSY, VACUUM, VALVE ASSY, VACUUM CHECK(FOR BRAKE), CLIP(FOR VACUUM HOSE).
