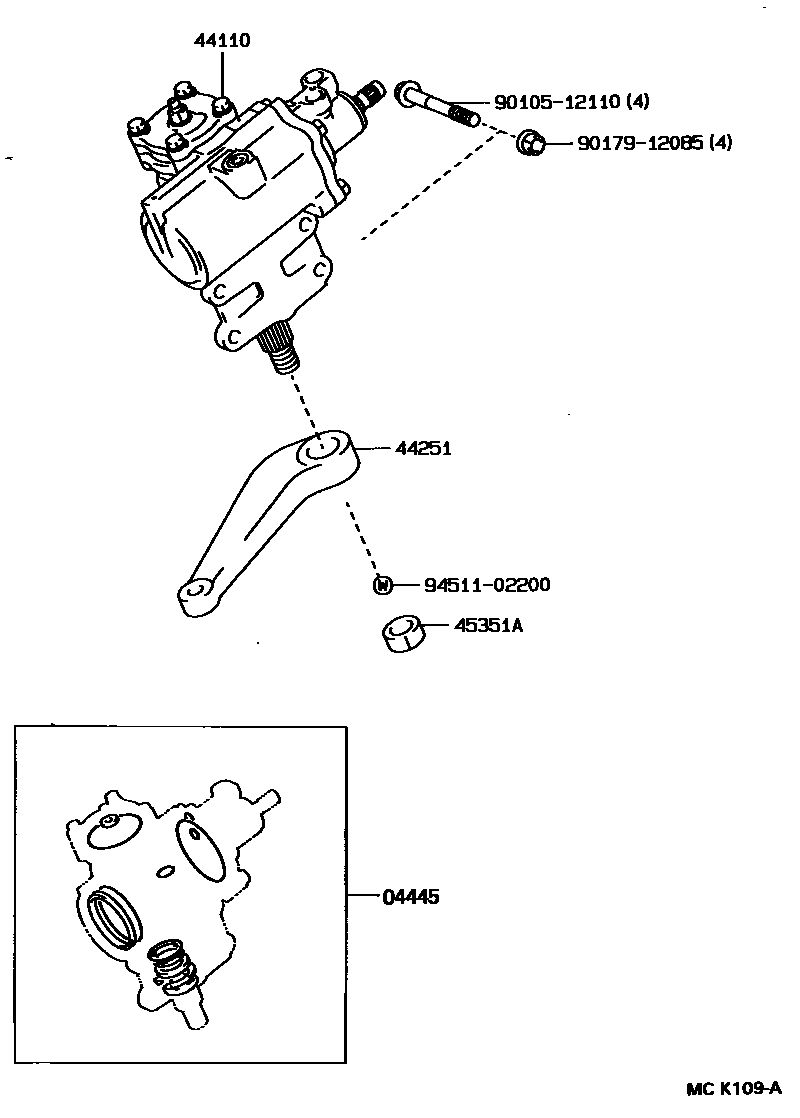

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0005 1 0007 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-60050iFJ80,FZJ80,HDJ81,HZJ81199001-199801

44110GEAR ASSY, POWER STEERING

main44110-60200iHZJ81199001-199208

main44110-60201iFZJ80,HDJ81,HZJ81..GX,STD; FZJ80,HDJ81,HZJ81..SOB..GX199208-199801

main44110-60220iHZJ81..VX,VXL199208-199608

44251ARM, PITMAN

main45411-60200iFJ80,FZJ80,HDJ81,HZJ81199001-199501

main45411-60201iFZJ80,HDJ81,HZJ81; HZJ81..GX;FZJ80,HDJ81199501-199801

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iFJ80,FZJ80,HDJ81,HZJ81199001-199801

9010512110

main90105-12110

9017912085

main90179-12085

9451102200

main94511-02200

7 parts on this diagram · 5 diagrams in section
