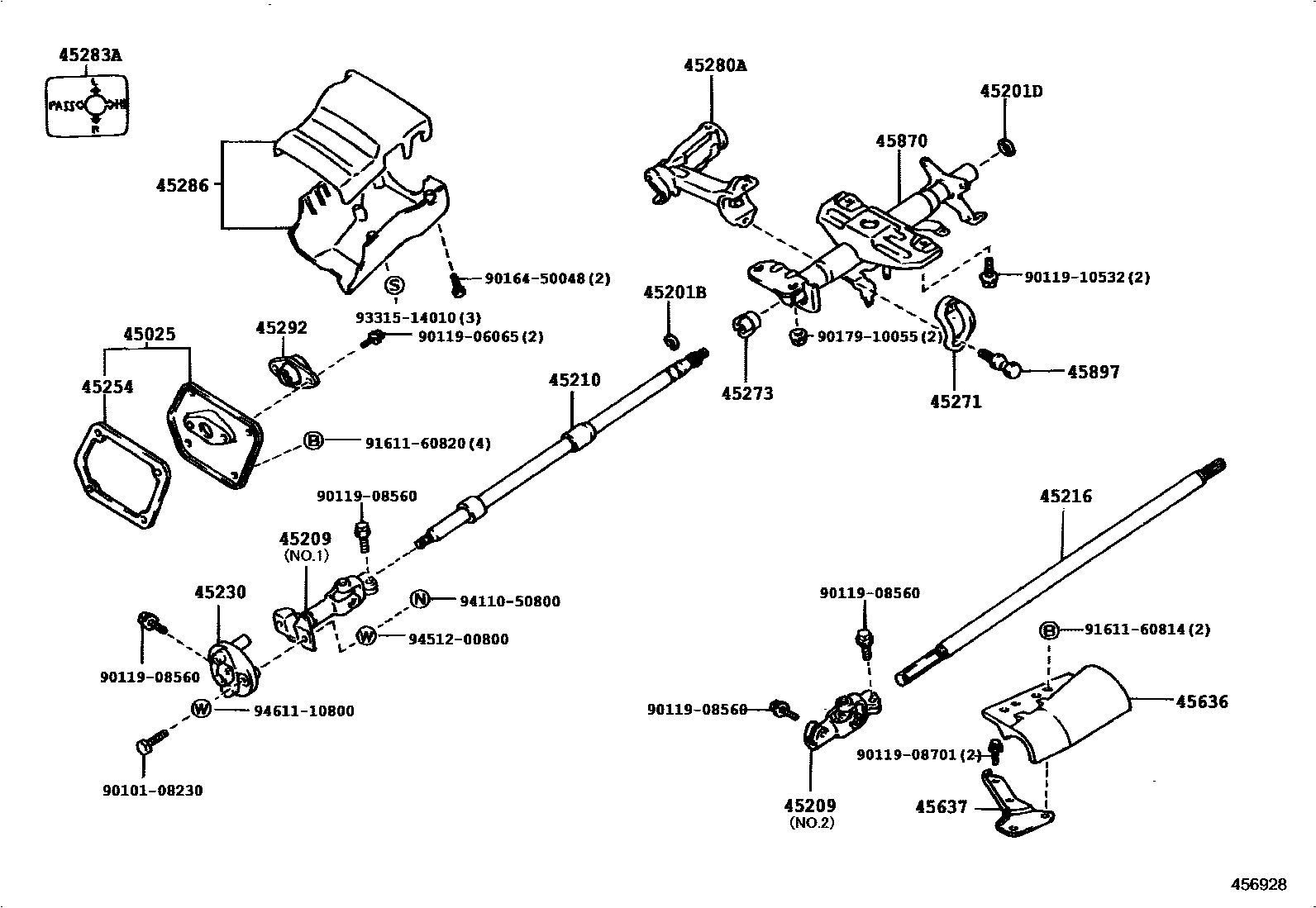

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-60070iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45201DRING(FOR STEERING MAIN SHAFT)

main90520-17269iHZJ81..STD199001-199108

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-60060iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main45209-60070iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45210SHAFT ASSY, STEERING MAIN

main45210-35170iFJ80199001-199108

main45210-60080iHZJ81..STD199001-199108

main45210-60110iHDJ81,HZJ81..LUB199001-199108

45216SHAFT, STEERING SLIDING

main45216-60080iHZJ81199001-199108

main45216-60090iHDJ81199001-199108

45230COUPLING ASSY, FLEXIBLE

main45230-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45254SHIELD, STEERING COLUMN HOLE

main45254-60060iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iHZJ81..STD199001-199108

main45271-12060iFJ80,HDJ81,HZJ81..LUB199001-199108

45273BUSH, STEERING MAIN SHAFT

main45273-16010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60290iFJ80,HDJ81..ATM; HZJ81..ATM199001-199108

main45280-60300iHZJ81..ATM199001-199108

main45280-60310iHDJ81..MTM; HZJ81..MTM..GX199001-199108

main45280-60320iHZJ81..MTM..GX199001-199108

main45280-60330iHZJ81..STD199001-199108

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45286COVER, STEERING COLUMN

main45286-60936-01iHZJ81..STD199001-199108

BLACK,TRIM1#

main45286-60938-01iFJ80,HDJ81..ATM199201-199208

main45286-60938-B0iFZJ80,HDJ81..VXL199501-199608

BLUEISH GRAY,TRIM1#

main45286-60938-E0iFZJ80,HDJ81..VXL199501-199608

OAK,TRIM4#

main45286-60939-01iHZJ81..GX,VX,VXL;FJ80,FZJ80,HDJ81..GX,VX; HZJ81..STD199108-199501

BLACK,TRIM1#; BLACK,TRIM1#,4#

main45286-60939-B0iHZJ81;FZJ80,HDJ81..GX,VX199501-199608

BLUEISH GRAY,TRIM1#

main45286-60939-E0iHZJ81;FZJ80,HDJ81..GX,VX199501-199608

OAK,TRIM4#

main45286-60947-B0iFZJ80,HDJ81,HZJ81199501-199608

main45286-60947-E0iFZJ80,HDJ81,HZJ81199501-199608

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35050iFJ80,FZJ80,HDJ81,HZJ81199001-199801

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-60110iFJ80,FZJ80,HDJ81,HZJ81199001-199305

main45636-60111iFZJ80,HDJ81,HZJ81199305-199801

45637PROTECTOR, INTER LINK JOINT, LWR NO.1

main45637-60080iFJ80,HDJ81,HZJ81199001-199107

main45637-60081iFJ80,FZJ80,HDJ81,HZJ81199107-199801

45870TUBE ASSY, STEERING COLUMN

main45870-60060iHDJ81,HZJ81..LUB199001-199108

main45870-60070iFJ80199001-199108

main45870-60080iHZJ81..STD199001-199108

main45870-60100iFZJ80,HDJ81,HZJ81199501-199608

main45870-60110iFZJ80,HDJ81,HZJ81199501-199608

45897BOLT, STEERING LOCK SET

main45897-60010×2iFJ80,FZJ80,HDJ81,HZJ81199001-199801

9010108230

main90101-08230

9011906065

main90119-06065

9011908560

main90119-08560

9011908701

main90119-08701

9011910532

main90119-10532

9016450048

main90164-50048

9017910055

main90179-10055

9161160814

main91611-60814

9161160820

main91611-60820

9331514010

main93315-14010

9411050800

main94110-50800

9451200800

main94512-00800

9461110800

main94611-10800

31 parts on this diagram · 3 diagrams in section
