3603DRIVE SHAFT

→ Go to FIG 36-03

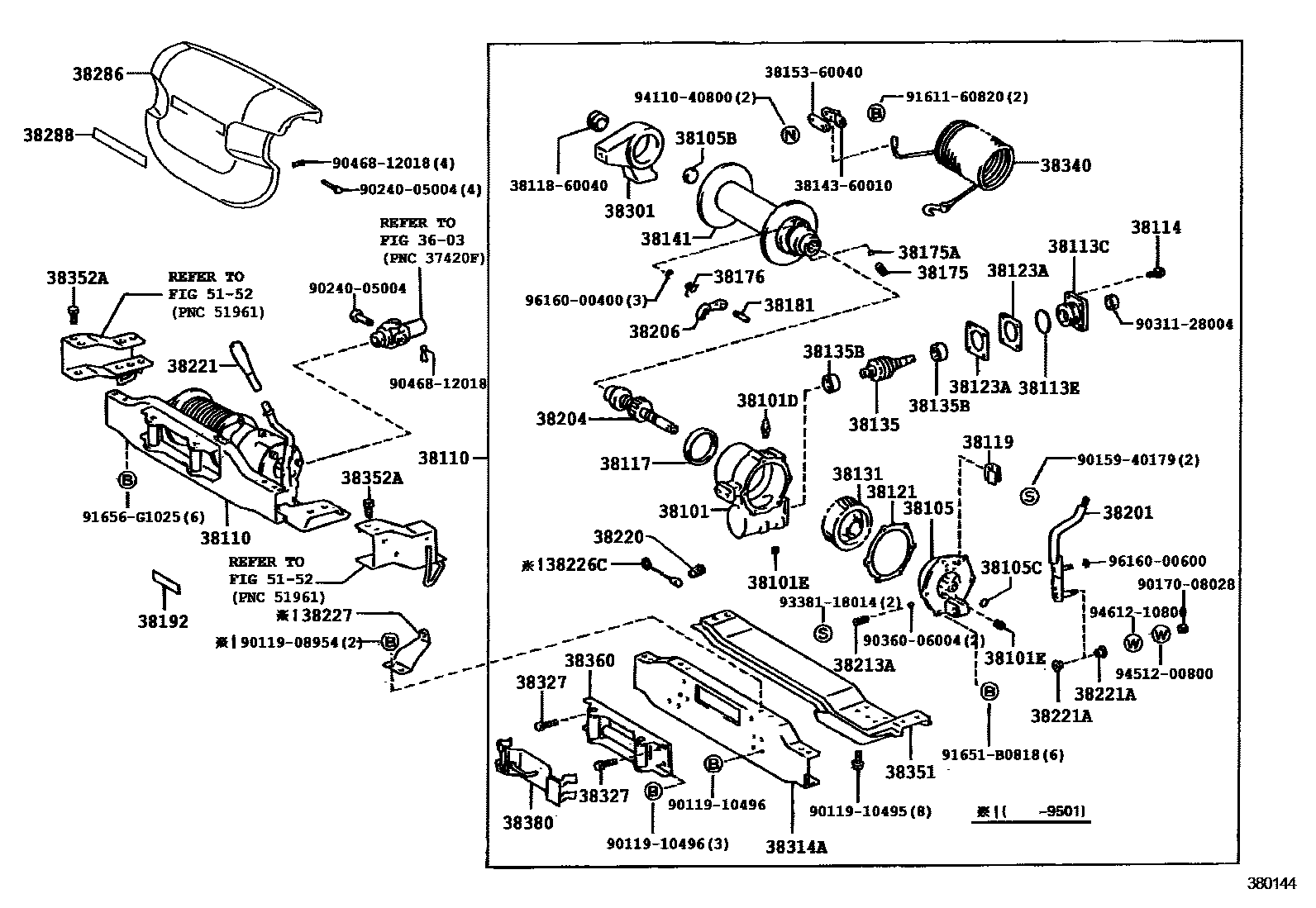

38101CASE SUB-ASSY, WINCH GEAR

main38101-60170i199001-199305

main38101-60171i199405-199801

main38101-60180i199305-199801

38101DPLUG, BREATHER (FOR WINCH GEAR CASE)

main90930-03058i199001-199305

38101EPLUG (FOR WINCH GEAR CASE)

main90072-34402×2i199001-199206

main90344-51005×2i199206-199305

38105COVER SUB-ASSY, WINCH GEAR CASE

main38105-60170i199305-199405

main38105-60180i199305-199405

38105BPLUG, TIGHT (FOR WINCH GEAR CASE COVER)

main90331-55001i199305-199801

38105CRING, O (FOR WINCH GEAR CASE COVER)

main96721-24016i199305-199801

38110WINCH ASSY

main38110-60170i199001-199010

main38110-60171i199010-199104

main38110-60172i199104-199305

main38110-60173i199305-199501

main38110-60174i199501-199801

main38110-60180i199001-199010

main38110-60181i199010-199104

main38110-60182i199104-199305

main38110-60183i199305-199501

main38110-60184i199501-199801

38113CRETAINER, WORM BEARING, NO.1

main38113-60180i199001-199305

38113ERING, O (FOR WINCH WORM BEARING RETAINER NO.1)

main96721-35071i199001-199305

38114BOLT, WINCH WORM BEARING RETAINER

main38114-60180×4i199001-199305

38117SEAL, WINCH GEAR CASE COVER

main38117-60180i199001-199305

38119CLIP, WINCH GEAR CASE COVER

main38119-60180i199001-199305

38121GASKET, WINCH GEAR CASE COVER

main38121-60170i199001-199305

main38121-60180i199001-199305

38123ASHIM, WINCH WORM ADJUST, NO.1

main38123-60180i199001-199305

main38124-60180i199305-199801

main38125-60180i199305-199801

38131GEAR, WORM

main38131-60180i199001-199305

38135WORM, WINCH

main38135-60180i199001-199305

38135BBEARING (FOR WINCH WORM)

main97600-30206×2i199001-199305

38141DRUM, WINCH

main38141-60180i199001-199104

main38141-60181i199104-199305

38175SPRING, WINCH BRAKE, NO.1

main38175-60180×3i199001-199305

38175ABALL (FOR WINCH BRAKE SPRING NO.1)

main90360-11001×3i199001-199305

38176SPRING, WINCH BRAKE, NO.1

main38176-60180×3i199001-199305

38181PIN, WINCH BRAKE

main38181-60180×3i199001-199305

38192PLATE, WINCH CAUTION, NO.2

main38192-60050i199208-199305

main38192-60051i199501-199801

main38192-60060i199305-199801

38201LEVER SUB-ASSY, WINCH CLUTCH

main38201-60180i199001-199010

main38201-60181i199305-199801

38204SHAFT ASSY, WINCH CLUTCH HUB

main38204-60180i199305-199801

38206BRAKE ASSY, WINCH

main38206-60180×3i199001-199305

38213ASPRING, WINCH CLUTCH HUB SHIFT

main38213-60180×2i199001-199305

38220CAP ASSY, WINCH CLUTCH LEVER

main38220-60010i199001-199501

main38316-60170i199501-199801

38221LEVER, CLUTCH HUB SHIFT

main38221-60180i199001-199010

main38221-60181i199010-199801

38221ABUSH (FOR CLUTCH HUB SHIFT LEVER)

main90386-13007×2i199001-199305

38226CCHAIN, WINCH LEVER

main38226-60170i199001-199501

38227PLATE, WINCH CLUTCH LEVER SHIFT LOCK

main38227-60180i199001-199305

38286COVER, WINCH

main38208-60011i199001-199501

main38208-60021i199305-199501

main38208-60050i199001-199501

main38208-60060i199001-199501

main38208-60080i199501-199608

main38286-60160i199305-199501

main38286-60161i199501-199608

38288LABEL, WINCH COVER

main38288-60010i199001-199305

main38288-60020i199001-199305

main38288-60030i199501-199801

38301BRACKET SUB-ASSY, WINCH END

main38301-60180i199001-199305

38314ACROSSMEMBER, WINCH SUPPORT, FRONT

main38314-60180i199001-199104

main38314-60181i199104-199501

main38314-60182i199501-199801

38327BOLT, WINCH R0LLER BRACKET

main38327-60180×2i199001-199305

38340WIRE ASSY, WINCH CHAIN

main38340-60180i199001-199305

38351BASE, WINCH

main38351-60180i199001-199305

38352ABOLT (FOR WINCH BASE SUPPORT)

main90119-12214×10i199001-199008

main90119-12220×10i199008-199208

38360BRACKET ASSY, WINCH ROLLER

main38360-60080i199001-199104

main38360-60081i199104-199305

main38360-60082i199305-199801

38380HOLDER ASSY, WINCH HOOK

main38380-60020i199001-199104

main38380-60021i199104-199305

main38380-60022i199305-199801

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

3811860040COVER, WINCH DRUM HOUSING

main38118-60040

3814360010LOCK, WIRE

main38143-60010

3815360040PLATE, WIRE LOCK

main38153-60040

9011908954

main90119-08954

9011910495

main90119-10495

9011910496

main90119-10496

9015940179

main90159-40179

9017008028

main90170-08028

9024005004

main90240-05004

9031128004

main90311-28004

9036006004

main90360-06004

9046812018

main90468-12018

9161160820

main91611-60820

91651B0818

main91651-B0818

91656G1025

main91656-G1025

9338118014

main93381-18014

9411040800

main94110-40800

9451200800

main94512-00800

9461210800

main94612-10800

9616000400

main96160-00400

9616000600

main96160-00600
