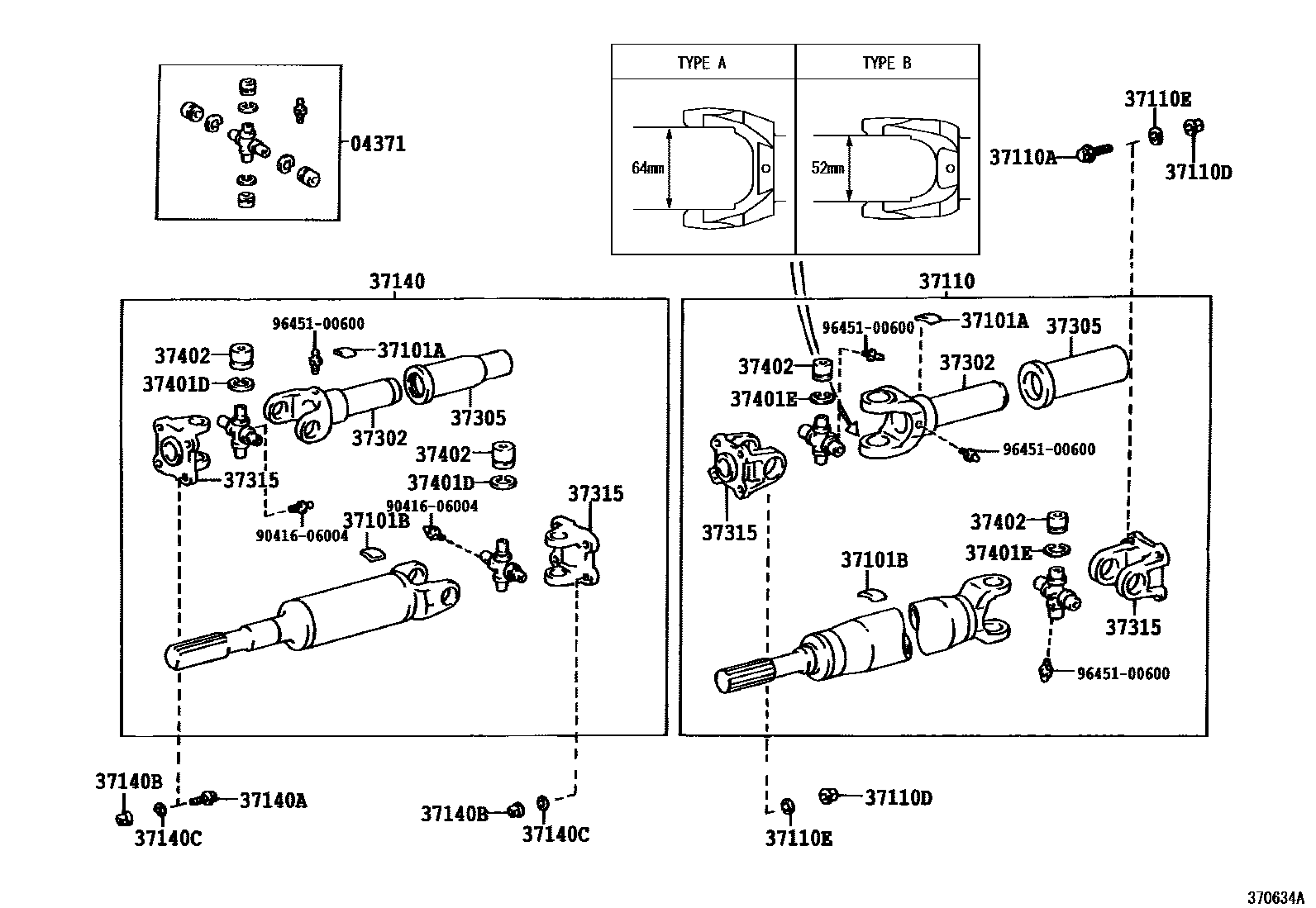

PROPELLER SHAFT & UNIVERSAL JOINT

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-35031×2iFJ80,FZJ80,HDJ81,HZJ81199001-199801

FOR FRONT PROPELLER SHAFT

main04371-36030×2iFJ80,FZJ80,HDJ81,HZJ81199001-199501

FOR REAR PROPELLER SHAFT

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01184iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01191iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01192iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01193iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01194iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01198iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01199iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01200iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01268iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01269iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01270iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01271iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01272iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01273iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01274iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)

main90937-01132iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01136iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01140iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01147iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01148iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01149iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01150iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01151iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01152iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01153iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01154iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01155iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01156iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01157iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90937-01158iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37110SHAFT ASSY, PROPELLER

main37110-60440iFZJ80,HDJ81,HZJ81..MTM..(GX,VX)199001-199608

main37110-60450iHZJ81..MTM199501-199608

main37110-60460iFJ80,FZJ80,HDJ81,HZJ81..ATM199001-199608

main37110-60520iHZJ81..ATM..GX; HZJ81..LUB;FZJ80,HDJ81..ATM199305-199608

main37110-60610iFZJ80,HDJ81..MTM199501-199608

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013×4iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37110DNUT (FOR PROPELLER SHAFT)

main90179-11005×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60240iHDJ81,HZJ81..LUB..MTM199001-199208

main37140-60250iHDJ81,HZJ81..LUB..MTM; HZJ81..STD199001-199208

main37140-60260iFJ80,HDJ81,HZJ81..ATM199001-199208

main37140-60330iFZJ80,HDJ81,HZJ81..MTM..(GX,VX)199208-199801

main37140-60340iFZJ80,HDJ81,HZJ81..ATM199208-199801

main37140-60350iHZJ81..STD199208-199305

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-10085×4iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90179-10059×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90204-10002×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-35050iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main37302-36020iHZJ81..MTM199501-199608

37305COVER SUB-ASSY, SLIDING SHAFT DUST

main37305-35020iFZJ80,HDJ81,HZJ81199501-199801

main37305-36020iFJ80,FZJ80,HDJ81,HZJ81199001-199501

main37305-60020iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040×2iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main37315-36020×2iFZJ80,HDJ81,HZJ81..LUB199208-199305

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-26038×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-26040×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-26041×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-26042×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-26043×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-26044×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-26045×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-26046×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-29024×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-29025×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-29026×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90520-29027×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-30011×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main37402-30021×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

FR,RED PAINTED

main37402-36070×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main37402-36080×8iFJ80,FZJ80,HDJ81,HZJ81199001-199801

RR,WHITE PAINTED

9041606004

main90416-06004

9645100600

main96451-00600

19 parts on this diagram · 1 diagram in section
