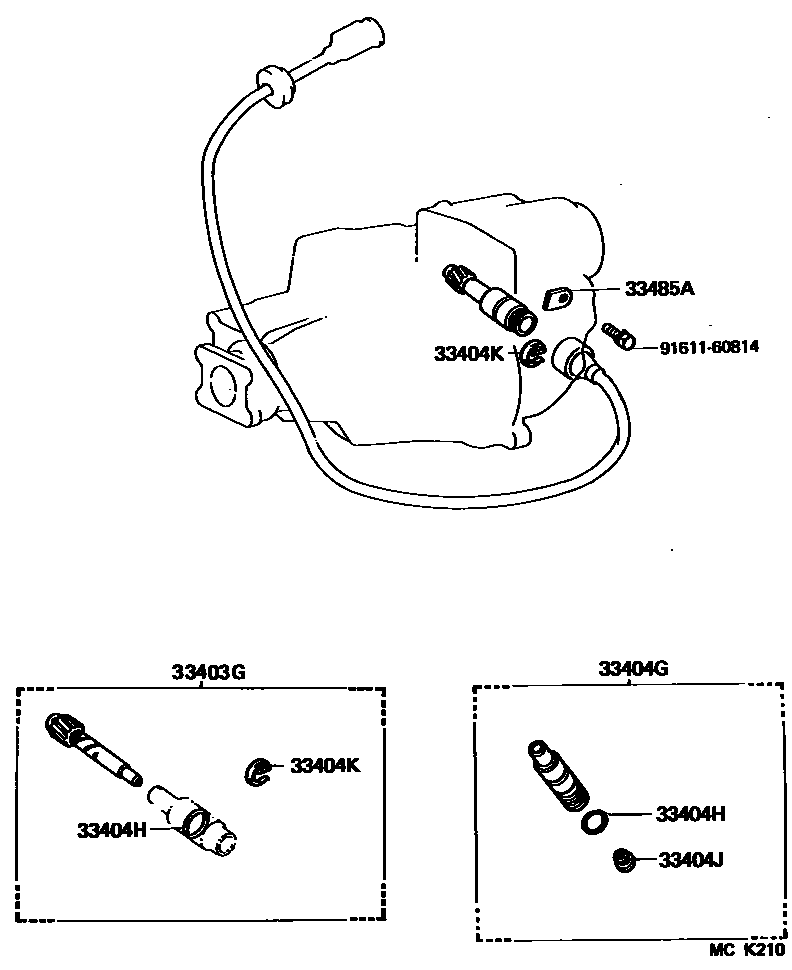

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69205iHZJ81..ATM199208-199305

main33403-69225iFZJ80..VX199208-199501

main33403-69235iFZJ80,HDJ81..ATM199608-199801

main33403-69245iFJ80,HDJ81..ATM199001-199208

main33403-69265iFJ80,HDJ81..ATM199001-199208

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-22010iHZJ81..VX,VXL199208-199608

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24030iFJ80,HDJ81,HZJ81..ATM199001-199208

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iFJ80,HDJ81,HZJ81..ATM199001-199208

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iFJ80,HDJ81,HZJ81..ATM199001-199208

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iFJ80,HDJ81,HZJ81..ATM199001-199208

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
