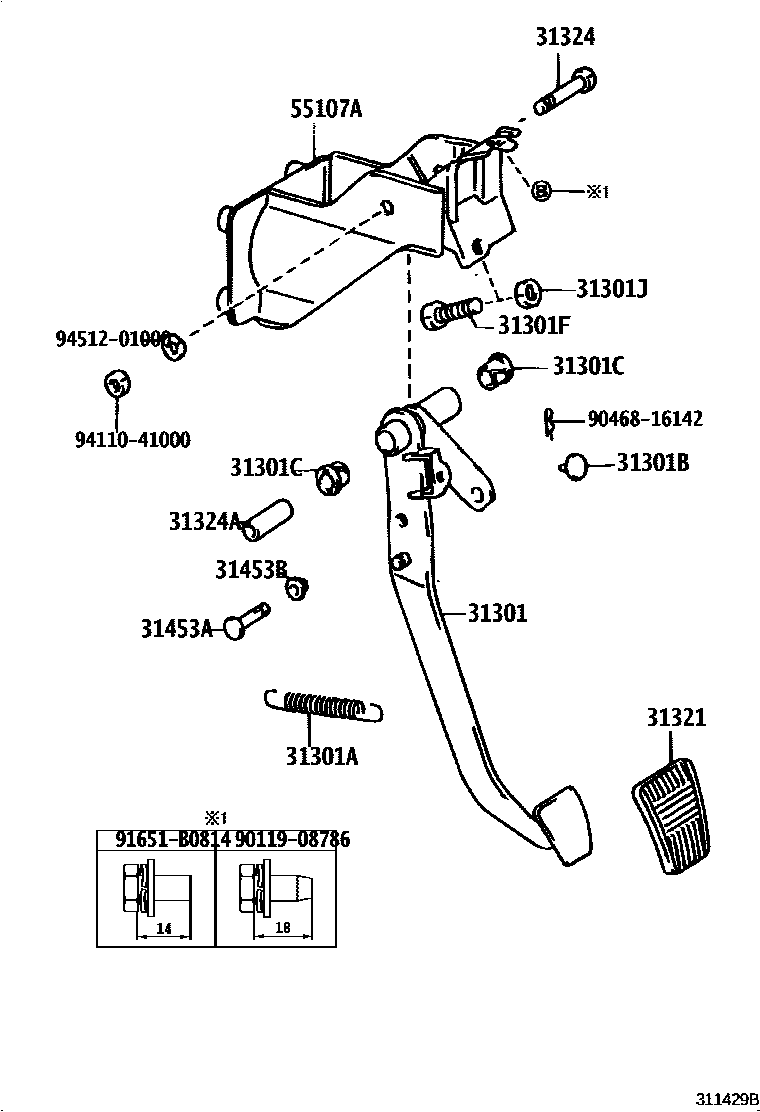

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-60140iHDJ81,HZJ81..MTM..(GX,VX)199208-199501

main31310-60011iFZJ80..MTM199501-199608

main31310-60030iHZJ81..MTM199001-199201

main31310-60031iHZJ81..MTM199501-199801

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14015iHDJ81..MTM199201-199208

main90507-26008iFZJ80..MTM199501-199608

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iHDJ81,HZJ81..MTM199001-199208

main90541-06036iFZJ80,HDJ81,HZJ81..MTM199208-199801

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iHDJ81,HZJ81..MTM199001-199205

main90386-13020×2iHDJ81,HZJ81..MTM199205-199208

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iHDJ81,HZJ81..MTM199001-199208

main90101-10369iFZJ80,HDJ81,HZJ81..MTM199501-199801

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-40800iHDJ81,HZJ81..MTM199208-199501

main94130-61000iFZJ80,HDJ81,HZJ81..MTM199501-199801

31321PAD, CLUTCH PEDAL

main31321-14020iFZJ80,HDJ81,HZJ81..MTM199208-199801

31324SHAFT, CLUTCH PEDAL

main90101-10177iFZJ80..MTM199608-199801

main91121-51080iHDJ81,HZJ81..MTM199001-199208

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10116iFZJ80,HDJ81,HZJ81..MTM199208-199801

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iHDJ81,HZJ81..MTM199001-199208

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iHDJ81,HZJ81..MTM199001-199208

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-60040iHDJ81..MTM199001-199108

main55180-60010iHZJ81..STD199108-199208

main55180-60011iFZJ80..MTM199501-199608

main55180-60050iFZJ80..MTM199608-199801

9011908786

main90119-08786

9046816142

main90468-16142

91651B0814

main91651-B0814

9411041000

main94110-41000

9451201000

main94512-01000

17 parts on this diagram · 3 diagrams in section
