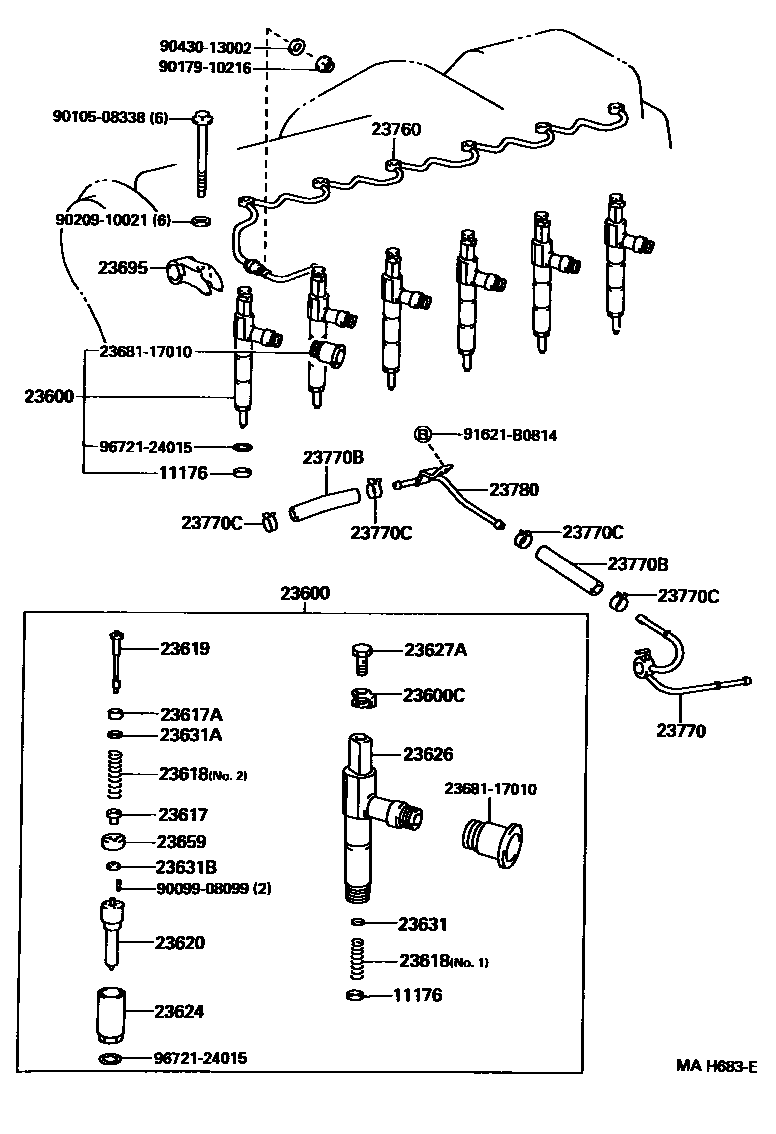

INJECTION NOZZLE
23617SEAT, PRESSURE SPRING
23617ASEAT, PRESSURE SPRING, NO.1
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
23626BODY SUB-ASSY, NOZZLE
23627ASCREW, FOLLOW(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631AWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)
23631BWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.2)
23659PACKING, TIP(FOR NOZZLE)
23770BHOSE, FUEL
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
sub90467-10149
23780PIPE, NOZZLE LEAKAGE, NO.3
2368117010SEAL, NOZZLE HOLDER
main23681-17010
9009908099
main90099-08099
9010508338
main90105-08338
9017910216
main90179-10216
9020910021
main90209-10021
9043013002
main90430-13002
91621B0814
main91621-B0814
9672124015
main96721-24015
29 parts on this diagram · 3 diagrams in section
