ENGINE OVERHAUL GASKET KIT

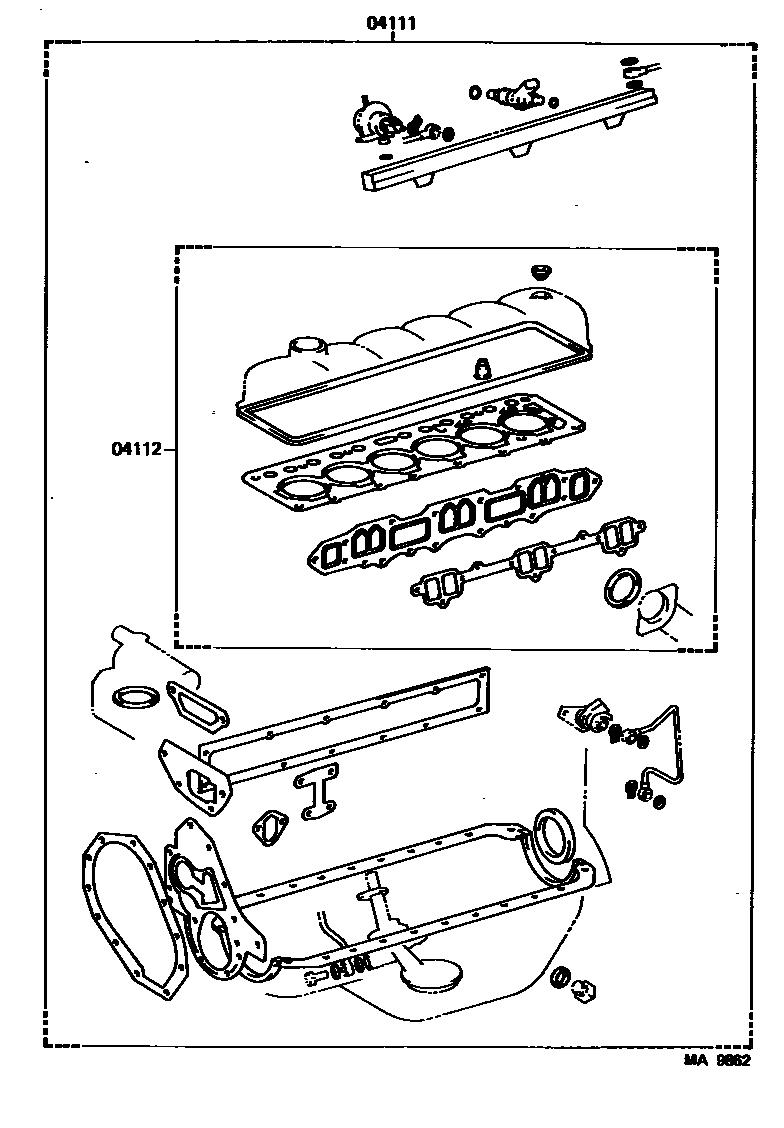

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-17010i199001-199705

main04111-17011i199705-199707

main04111-17012i199707-199801

main04111-17020i199001-199501

main04111-17040i199501-199507

main04111-17041i199507-199801

main04111-61090i199001-199110

main04111-61091i199110-199208

main04111-66030i199208-199801

04112GASKET KIT, ENGINE VALVE GRIND

main04112-17010i199001-199705

main04112-17011i199705-199707

main04112-17012i199707-199801

main04112-17020i199001-199501

main04112-17040i199501-199507

main04112-17041i199507-199801

main04112-61080i199001-199110

main04112-61081i199110-199208

main04112-66030i199208-199801

2 parts on this diagram · 5 diagrams in section
