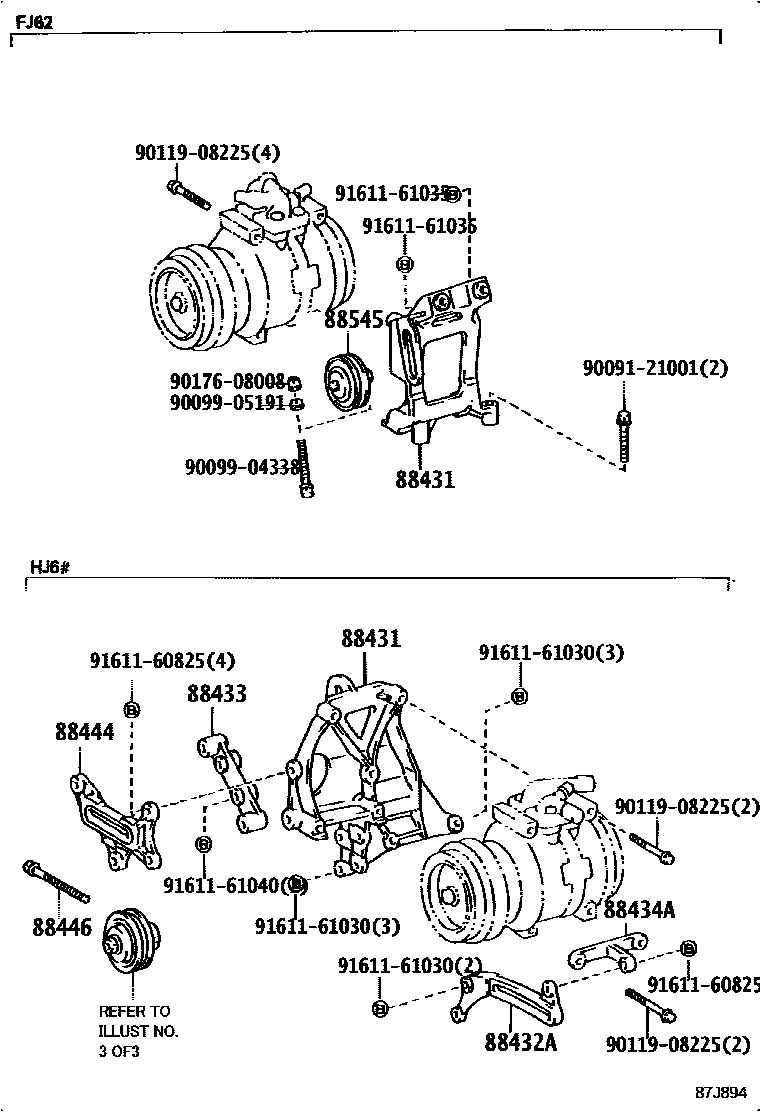

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1����������� 0003 1���������

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60040iFJ62..CBU198708-199001

main88431-60060iHJ6#198708-199001

88432AATTACHMENT, COMPRESSOR

main88437-60200iHJ6#198708-199001

24V 30A ALTERNATOR

main88437-60230iHJ6#198708-199001

24V 40A ALTERNATOR

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88437-60141iHJ6#198708-199001

88434AATTACHMENT, COMPRESSOR

main88437-60240iHJ6#198708-199001

88444BRACKET, IDLE PULLEY

main88444-60041iHJ6#198708-198812

main88444-60042iHJ6#198812-199001

88446BOLT, IDLE PULLEY

main88446-35010iHJ6#198708-199001

88545PULLEY ASSY, IDLE

main88440-35010iFJ62,HJ6#..CBU198708-198812

main88440-60030iHJ6#198812-199001

9009121001

main90091-21001

9009904338

main90099-04338

9009905191

main90099-05191

9011908225

main90119-08225

9017608008

main90176-08008

9161160825

main91611-60825

9161161030

main91611-61030

9161161035

main91611-61035

9161161040

main91611-61040

16 parts on this diagram · 3 diagrams in section
