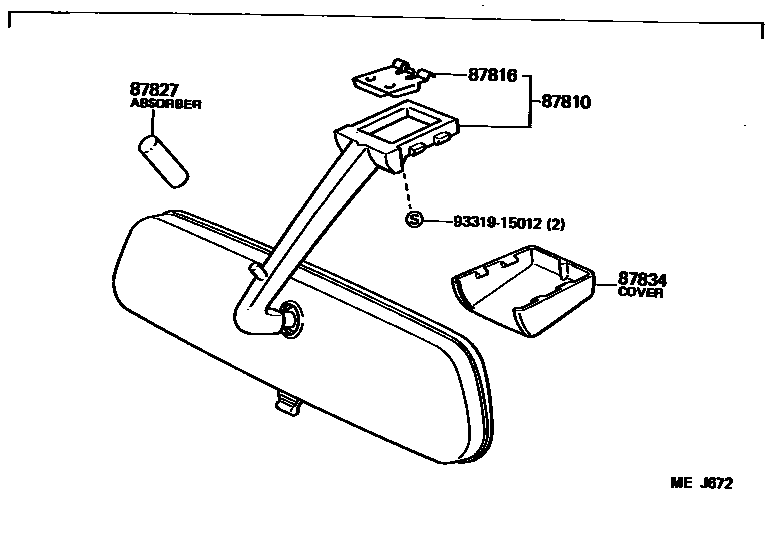

MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-90A03iFJ62,HJ6#..CBR,DSL,TD198708-199001

main87810-90A07iFJ62..EFI198808-199001

87816SPRING, INNER REAR VIEW MIRROR

main74372-90A00iFJ62,HJ6#198708-199001

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-90A00iFJ62,HJ6#198708-199001

main87828-90A01iFJ62,HJ6#198708-199001

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-14011-28iFJ62,HJ6#198708-199001

IVORY,TRIM1#,4#

9331915012

main93319-15012

5 parts on this diagram · 2 diagrams in section
