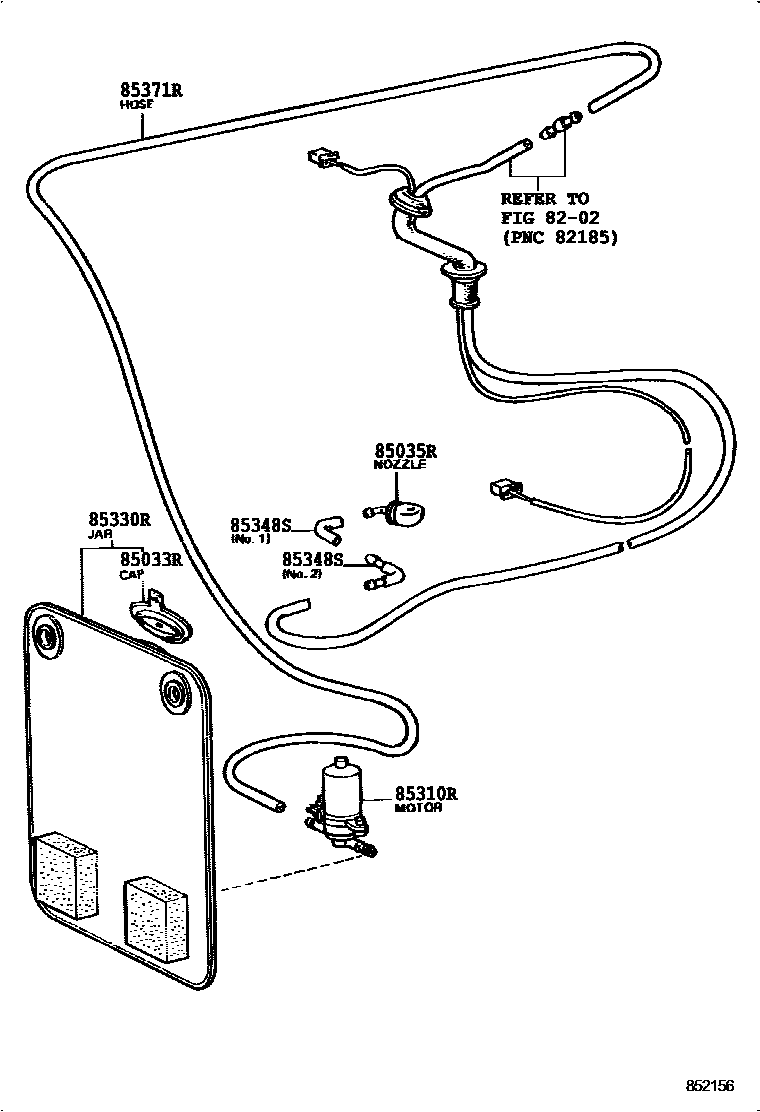

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-20050iFJ62,HJ6#..HRF198708-199001

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-90A02iFJ62,HJ6#..HRF198708-199001

85310RMOTOR ASSY, REAR WASHER

main85310-22080iFJ62..EFI198808-199001

main85310-90B00iHJ6#..HRF198708-199001

85330RJAR ASSY, REAR WASHER

main85330-90A08iFJ62,HJ6#..HRF198708-199001

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iFJ62,HJ6#..HRF198708-199001

main85355-20200iFJ62,HJ6#..HRF198708-199001

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06292iFJ62,HJ6#..HRF198708-199001

7 parts on this diagram · 1 diagram in section
