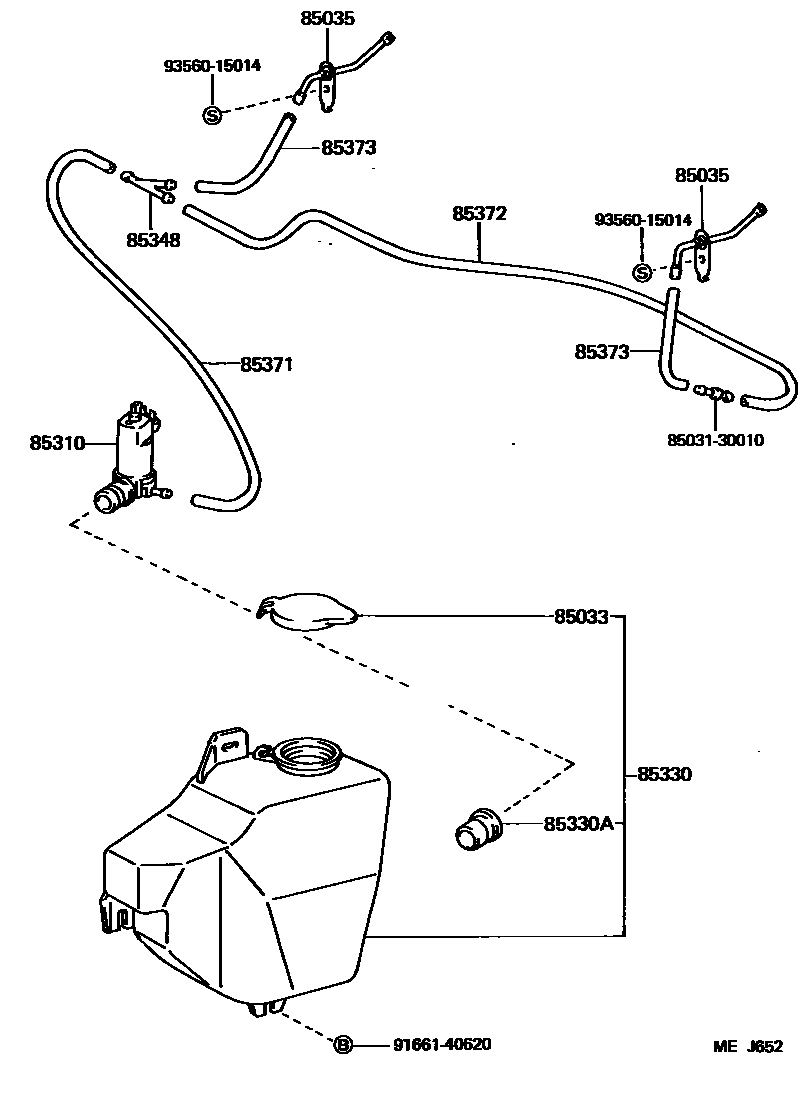

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-90A00iFJ62,HJ6#198708-199001

85035NOZZLE SUB-ASSY, WASHER

main85341-90A03iFJ62,HJ60..MTM198708-199001

main85341-90A04iHJ61;FJ62,HJ60..ATM198708-199001

main85341-90A06iFJ62,HJ60..MTM198708-199001

main85341-90A07iHJ61;FJ62,HJ60..ATM198708-199001

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iFJ62198708-199001

main85310-90B00iHJ6#198708-199001

85330JAR ASSY, WINDSHIELD WASHER

main85330-90A06iFJ62,HJ6#198708-199001

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iFJ62,HJ6#198708-199001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iFJ62,HJ6#198708-199001

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iHJ61;FJ62,HJ60..ATM198708-199001

main90446-06013iFJ62,HJ60..MTM198708-199001

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iHJ61;FJ62,HJ60..ATM198708-199001

main95420-04600iFJ62,HJ60..MTM198708-199001

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2iHJ61;FJ62,HJ60..ATM198708-199001

main95420-04140×2iFJ62,HJ60..MTM198708-199001

8503130010VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30010

9166140620

main91661-40620

9356015014

main93560-15014

12 parts on this diagram · 1 diagram in section
