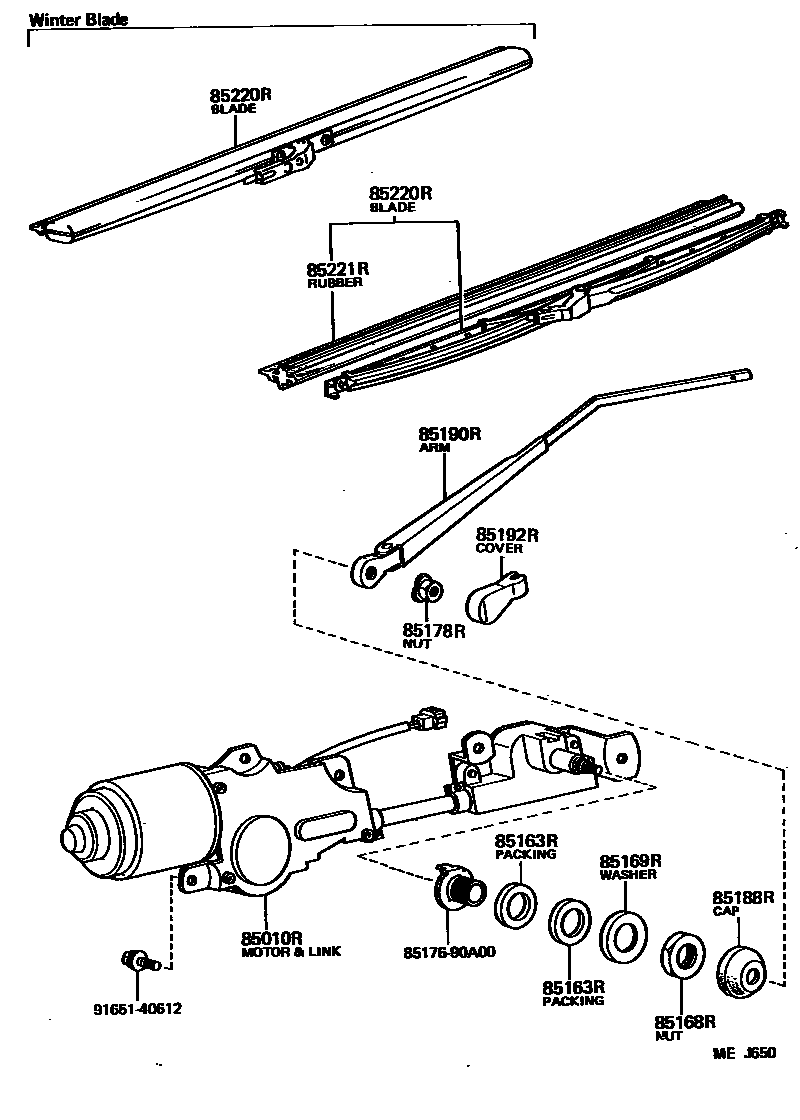

REAR WIPER

85010RMOTOR & LINK ASSY, RR WIPER

main85010-90A00iFJ62..EFI198808-199001

main85010-90A01iHJ6#..HRF198708-199001

85163RPACKING, REAR WIPER PIVOT, NO.1

main85174-12320×2iFJ62,HJ6#..HRF198708-199001

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05141iFJ62,HJ6#..HRF198708-199001

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90099-01458iFJ62,HJ6#..HRF198708-199001

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iFJ62,HJ6#..HRF198708-199001

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-12320iFJ62,HJ6#..HRF198708-199001

85190RARM ASSY, REAR WIPER

main85190-90A06iFJ62,HJ6#..HRF198708-199001

85192RCOVER, REAR WIPER ARM

main85195-95700iFJ62,HJ6#..HRF198708-199001

85220RBLADE ASSY, REAR WIPER

main85220-90A02iFJ62,HJ6#..HRF198708-199001

main85220-91705iFJ62,HJ6#..HRF198708-199001

85221RBLADE, REAR WIPER

main85221-90A02iFJ62,HJ6#..HRF198708-199001

8517690A00PLATE, WINDSHIELD WIPER LINK

main85176-90A00

9165140612

main91651-40612

12 parts on this diagram · 1 diagram in section
