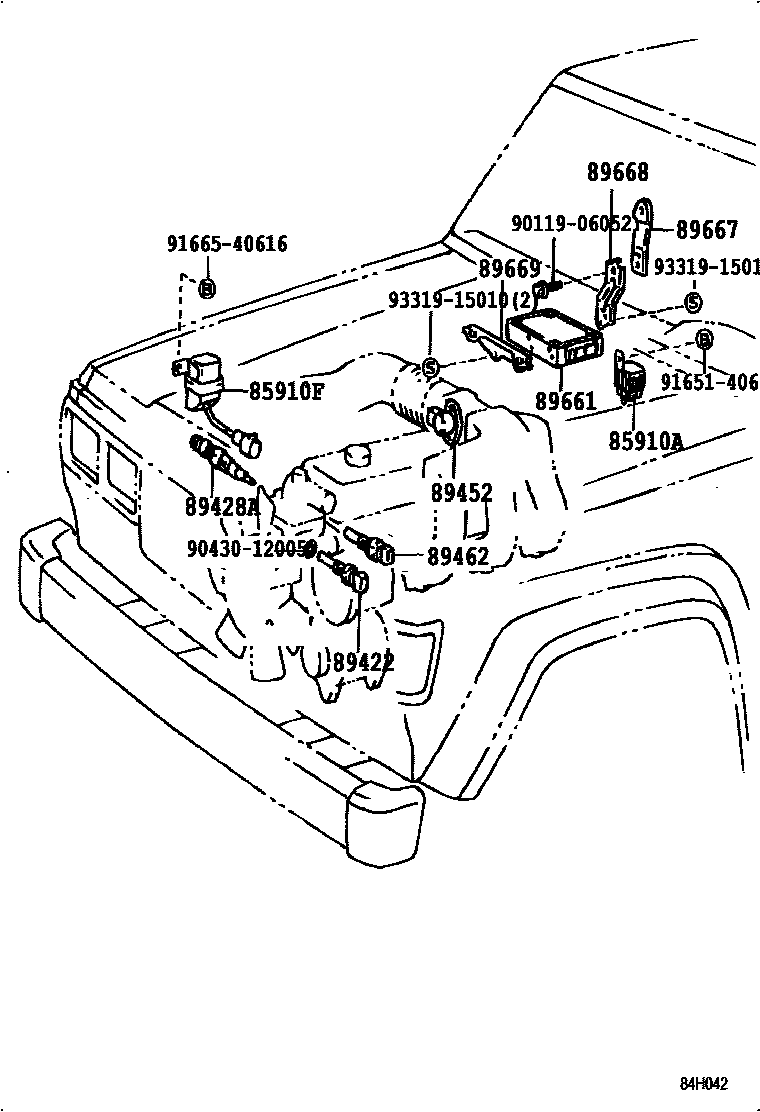

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9011906052
main90119-06052
9043012005
main90430-12005
9165140614
main91651-40614
9166540616
main91665-40616
9331915010
main93319-15010
15 parts on this diagram · 1 diagram in section
