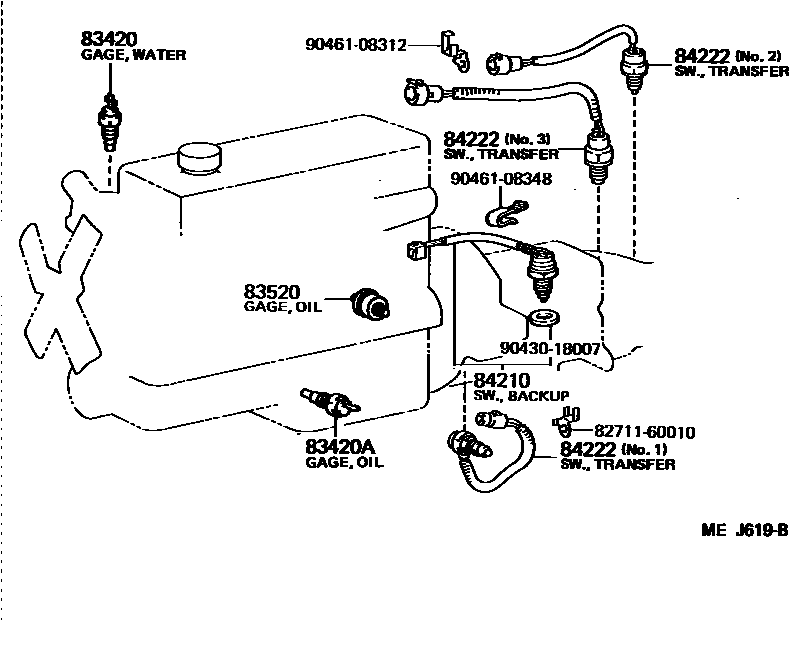

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iFJ62,HJ6#198708-199001

83420AGAGE ASSY, OIL TEMPERATURE SENDER

main83420-36010iFJ62..IV4198708-199001

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010iFJ62198708-199001

sub83520-60011

main83520-60020iHJ6#198708-199001

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iFJ62,HJ6#..MTM198708-199001

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60021iFJ62,HJ6#198708-199001

main84222-60030iFJ62,HJ6#198708-199001

main84222-60040iFJ62,HJ6#..CBU198708-199001

sub84222-60041

main84222-60071iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

9043018007

main90430-18007

9046108312

main90461-08312

9046108348

main90461-08348

9 parts on this diagram · 8 diagrams in section
