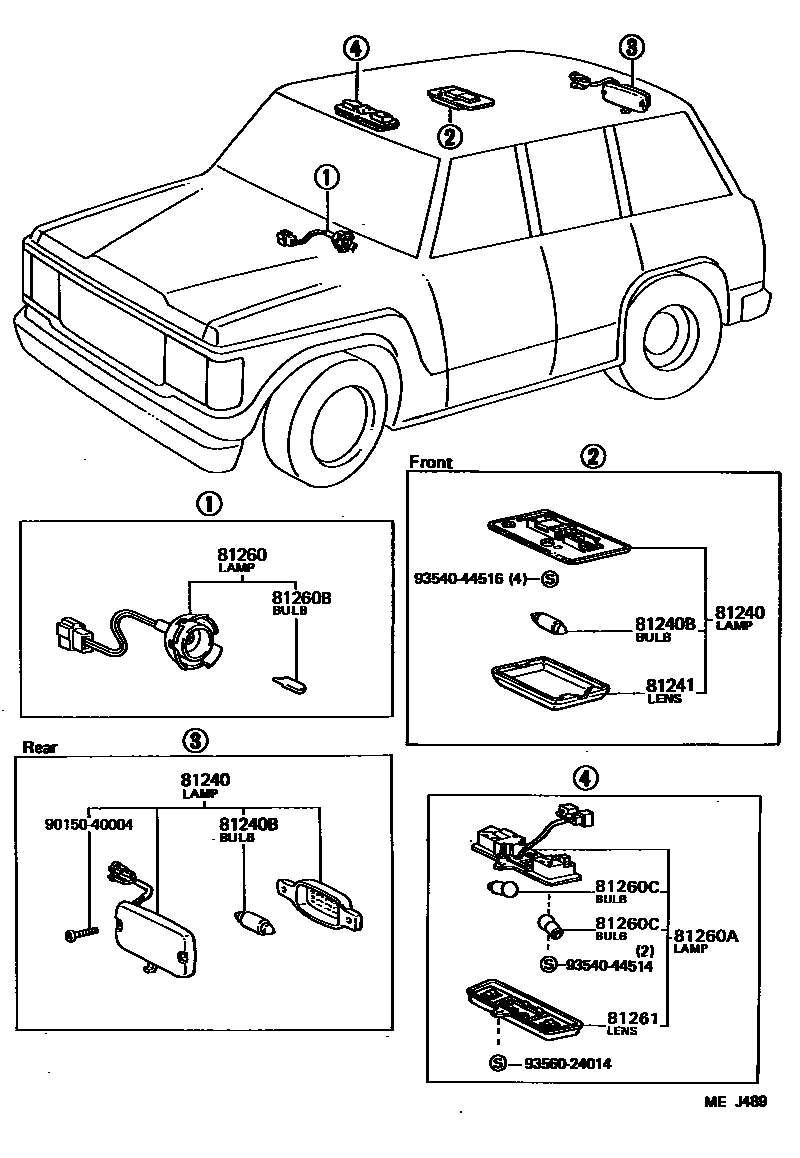

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-22070-08iFJ62..CBR198708-199001

IVORY,TRIM1#,4#,FRONT

main81240-90K00iHJ6#198708-199001

FRONT

main81240-95A16iFJ62..CBU..CBR198708-199001

REAR

main81240-95A17iHJ6#198708-199001

REAR

81240BBULB, ROOM LAMP, NO.1

main90981-11004iFJ62..CBU..CBR198708-199001

main90981-16019iHJ6#198708-199001

main99132-12100iFJ62..CBR198708-199001

81241LENS, ROOM LAMP, NO.1

main81241-20060iFJ62,HJ6#..CBR,DSL,TD198708-199001

81260LAMP ASSY, GLOVE BOX

main81260-22030iFJ62198708-199001

main81260-90A00iHJ6#198708-199001

81260ALAMP ASSY, MAP

main81260-90A02iFJ62..GX198708-199001

main81260-90A03iHJ60..SRF..GX198708-199001

main81260-90K00iFJ62..EFI198808-199001

main81260-90K01iHJ6#..HRF198708-199001

81260BBULB(FOR GLOVE BOX)

main90981-11018iFJ62198708-199001

main90981-11022iHJ6#198708-199001

81260CBULB(FOR MAP LAMP)

main90981-12005×2iFJ62..EFI; FJ62..GX198708-199001

main99134-13060×2iHJ6#..HRF; HJ60..SRF..GX198708-199001

81261LENS AND COVER, MAP LAMP

main81261-90A02iFJ62,HJ60..SRF..GX198708-199001

main81261-90K00iFJ62,HJ6#..HRF198708-199001

9015040004

main90150-40004

9354044514

main93540-44514

9354044516

main93540-44516

9356024014

main93560-24014

12 parts on this diagram · 1 diagram in section
