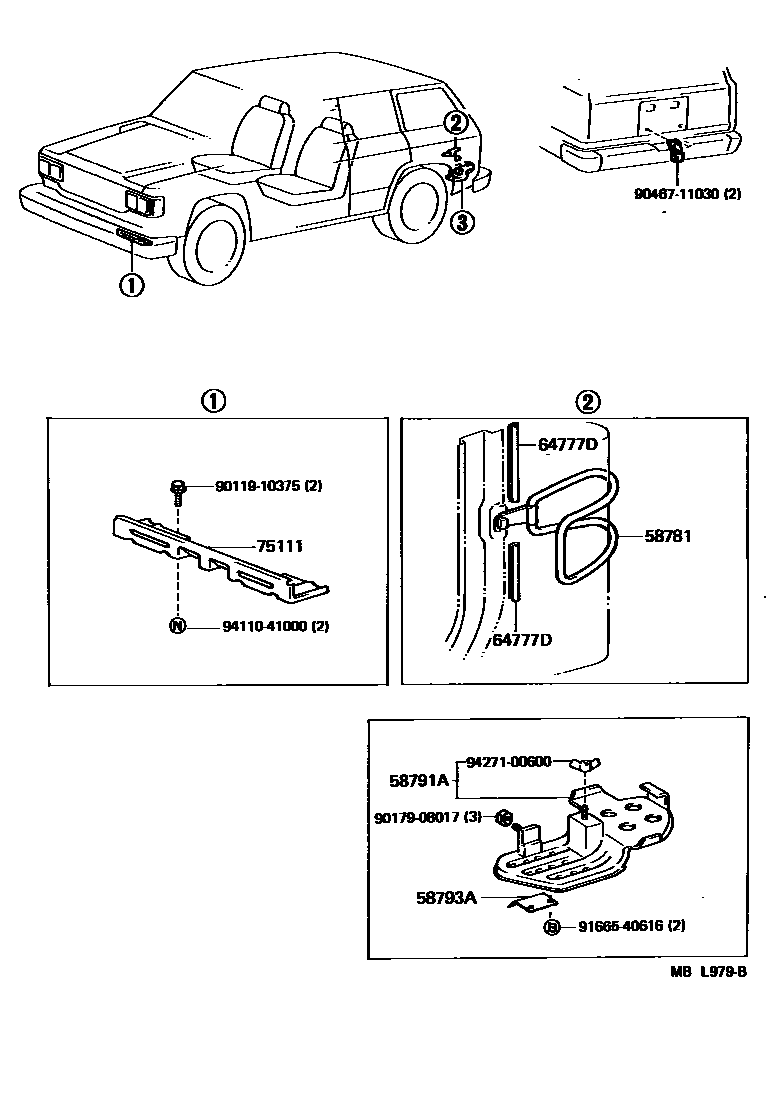

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58781BAND, TOOL BAG

main58705-90A00iFJ62,HJ6#..CBU198708-199001

58791ACARRIER, JACK

main58790-90A01iFJ62,HJ6#..CBU198708-199001

58793ABRACKET, JACK CARRIER

main58793-90A01iFJ62,HJ6#..CBU198708-199001

64777DPROTECTOR, QUARTER, INNER

main64777-90A00×2iFJ62,HJ6#..CBU198708-199001

75111BRACKET, FRONT LICENSE PLATE

main75111-60030iFJ62,HJ6#..CBU198708-198910

main75111-60050iFJ62..CBU..CBR; FJ62..EFI; HJ6#198910-199001

9011910375

main90119-10375

9017908017

main90179-08017

9046711030

main90467-11030

9166540616

main91665-40616

9411041000

main94110-41000

9427100600

main94271-00600

11 parts on this diagram · 2 diagrams in section
