ARMREST & VISOR

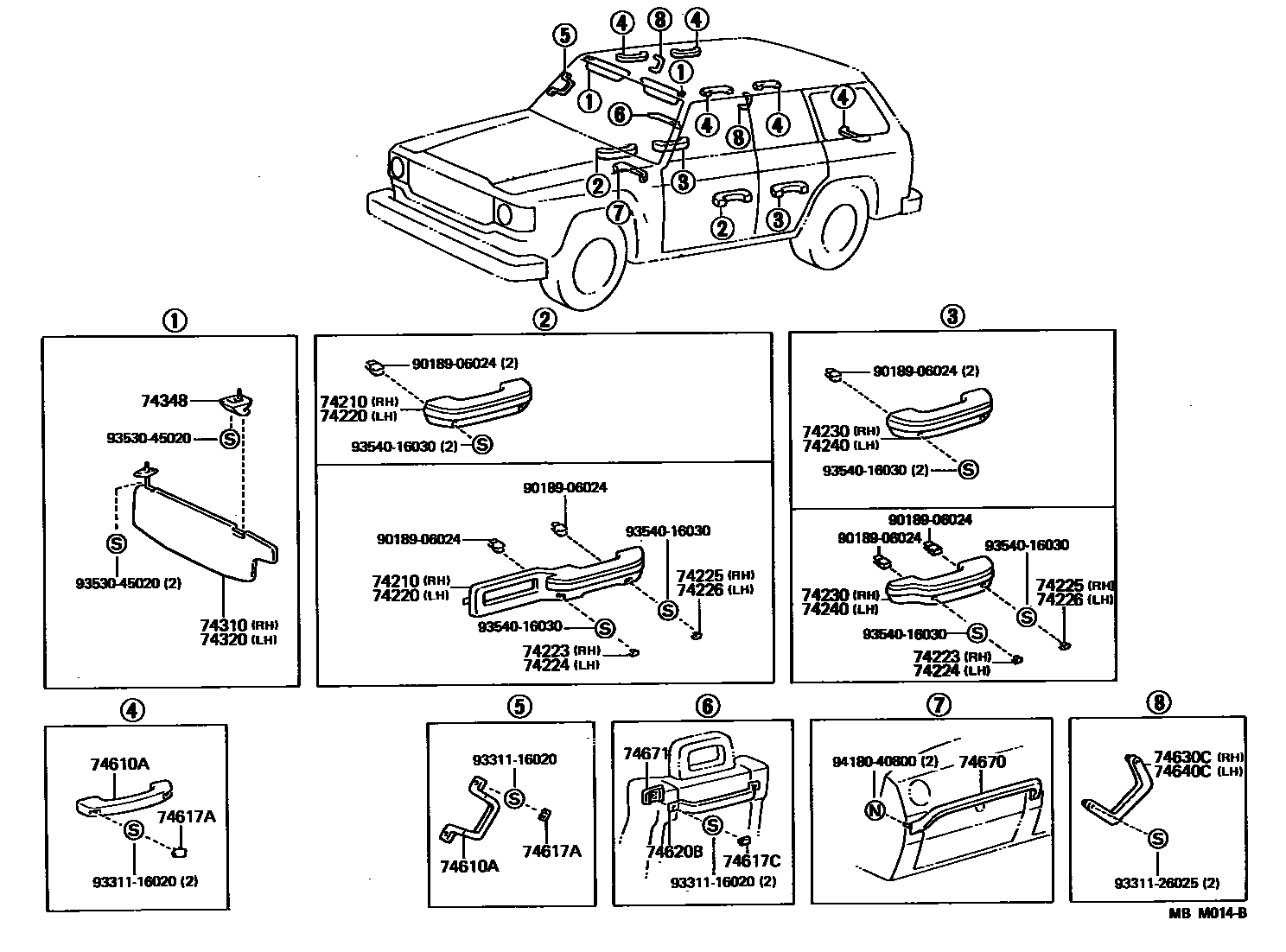

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-90A00-03i198708-199001

SHADOW GRAY,TRIM1#

main74210-90A00-06i198708-199001

SEPIA BROWN,TRIM4#

main74250-90A00-03i198708-199001

GRAY,TRIM1#

main74250-90A00-16i198708-199001

SEPIA BROWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-90A00-03i198708-199001

SHADOW GRAY,TRIM1#

main74220-90A00-06i198708-199001

SEPIA BROWN,TRIM4#

main74250-90A00-03i198708-199001

GRAY,TRIM1#

main74250-90A00-16i198708-199001

SEPIA BROWN,TRIM4#

74223CAP, DOOR ARMREST, RH

main74223-90A00-03i198808-199001

SHADOW GRAY,TRIM1#,FRONT DOOR

main74223-90A00-06i198808-199001

SEPIA BROWN,TRIM4#,FRONT DOOR

main74223-90A01-03i198808-199001

SHADOW GRAY,TRIM1#,REAR DOOR

main74223-90A01-06i198808-199001

SEPIA BROWN,TRIM4#,REAR DOOR

74224CAP, DOOR ARMREST, LH

main74224-90A00-03i198808-199001

SHADOW GRAY,TRIM1#,FRONT DOOR

main74224-90A00-06i198708-198808

SEPIA BROWN,TRIM4#

main74224-90A01-03i198808-199001

SHADOW GRAY,TRIM1#,REAR DOOR

main74224-90A01-06i198808-199001

SEPIA BROWN,TRIM4#,REAR DOOR

74225CAP, DOOR ARMREST, REAR RH

main74225-90A00-03i198708-198808

SHADOW GRAY,TRIM1#

main74225-90A00-06i198708-198808

SEPIA BROWN,TRIM4#

main74225-90A01-03i198808-199001

SHADOW GRAY,TRIM1#,REAR DOOR

main74225-90A01-06i198808-199001

SEPIA BROWN,TRIM4#,REAR DOOR

74226CAP, DOOR ARMREST, REAR LH

main74226-90A00-03i198708-198808

SHADOW GRAY,TRIM1#

main74226-90A00-06i198808-199001

SEPIA BROWN,TRIM4#,FRONT DOOR

main74226-90A01-03i198808-199001

SHADOW GRAY,TRIM1#,REAR DOOR

main74226-90A01-06i198808-199001

SEPIA BROWN,TRIM4#,REAR DOOR

74230ARMREST ASSY, REAR, RH

main74250-90A00-03i198708-198808

GRAY,TRIM1#

main74250-90A00-16i198708-198808

SEPIA BROWN,TRIM4#

main74250-90A01-03i198808-199001

SHADOW GRAY,TRIM1#

main74250-90A01-06i198808-199001

SEPIA BROWN,TRIM4#

74240ARMREST ASSY, REAR, LH

main74250-90A00-03i198708-198808

GRAY,TRIM1#

main74250-90A00-16i198808-199001

SEPIA BROWN,TRIM4#

main74260-90A00-03i198808-199001

SHADOW GRAY,TRIM1#

main74260-90A00-06i198808-199001

SEPIA BROWN,TRIM4#

74310VISOR ASSY, RH

main74310-90A30-08i198708-199001

IVORY,TRIM1#,4#

main74310-90A43-08i198708-199001

IVORY,TRIM1#,4#

main74310-90A48-08i198708-199001

main74310-90A49-08i198708-199001

IVORY,TRIM1#,4#

74320VISOR ASSY, LH

main74320-90A27-08i198708-199001

IVORY,TRIM1#,4#

main74320-90A31-08i198708-199001

IVORY,TRIM1#,4#

main74320-90A40-08i198708-199001

74348HOLDER, VISOR

main74348-12010-18×2i198708-199001

IVORY,TRIM1#,4#

74610AGRIP SUB-ASSY, ASSIST

main74610-10020-18×6i198808-199001

IVORY,TRIM1#,4#,ROOF SIDE &BACK DOOR

main74610-90K00-08i198708-199001

IVORY,TRIM1#,4#,FR PILLAR

74617APLUG, ASSIST GRIP

main74617-14010-18×6i198708-199001

IVORY,TRIM1#,4#,ROOF SIDE &BACK DOOR; IVORY,TRIM4#,ROOF SIDE &BACK DOOR

main74617-16010-08×2i198708-199001

IVORY,TRIM1#,4#,FR PILLAR

74617CPLUG, ASSIST GRIP

main74617-30020-16×4i198708-199001

BROWN,TRIM4#

main74617-30020-33×4i198708-199001

SHADOW GRAY,TRIM1#

74620BGRIP ASSY, ASSIST, REAR

main74620-30050-03×2i198708-199001

SHADOW GRAY,TRIM1#

main74620-30050-36×2i198708-199001

BROWN,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74620-90A00-18i198708-199001

IVORY,TRIM1#,4#

74640CGRIP ASSY, DOOR ASSIST, LH

main74620-90A00-18i198708-199001

IVORY,TRIM1#,4#

74670GRIP ASSY, INSTRUMENT ASSIST

main74670-90A01-03i198708-199001

SHADOW GRAY,TRIM1#

main74670-90A01-06i198708-199001

SEPIA BROWN,TRIM4#

74671SUPPORT, ASSIST GRIP

main74671-30010×4i198708-199001

9018906024

main90189-06024

9331116020

main93311-16020

9331126025

main93311-26025

9353045020

main93530-45020

9354016030

main93540-16030

9418040800

main94180-40800

25 parts on this diagram · 1 diagram in section
